Lítium akkumulátor PowerPack bővítő kártya Dual USB kimenettel a Raspberry Pi3-hoz

401248523321

Új termék

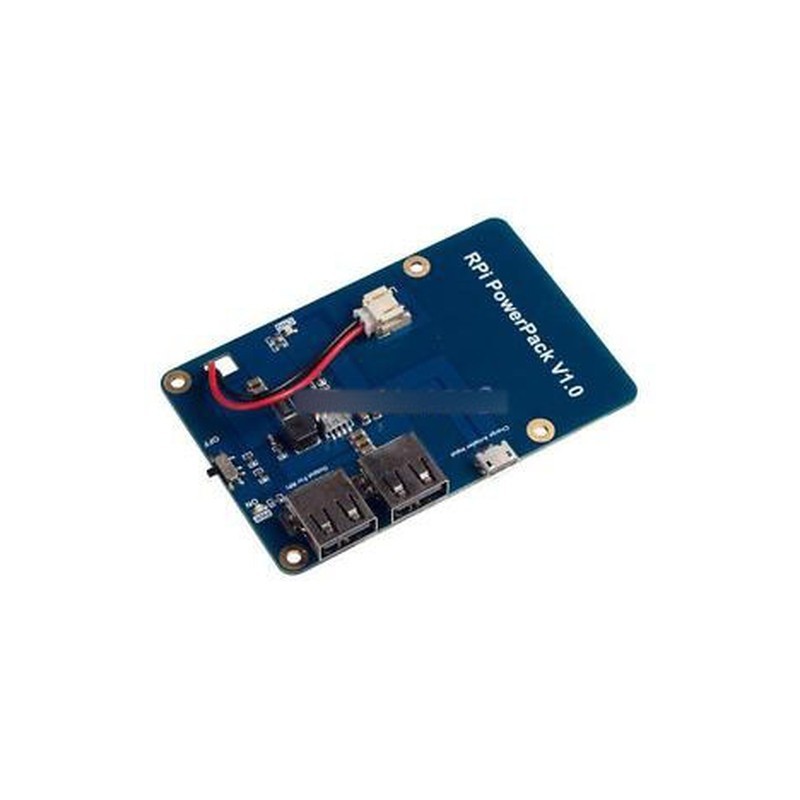

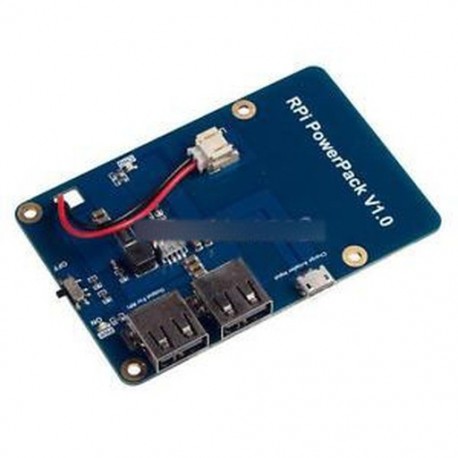

Lithium Battery PowerPack Expansion Board with Dual USB Output for Raspberry Pi3Introduction
The power module is designed for the Raspberry Pi 3 Model B specially, allowing the master board to work offline for up to 9 hours. It's not only supplying for Raspberry Pi; this board has 2 USB type-A ports – one supplies power for the Raspberry Pi and the other for the embedded LCD screen.
The module integrates a Li-ion battery charger IC, a boost management chip. And it is developed in strict accordance with the size of the international Raspberry Pi expansion board HAT, using only simple copper standoffs to install multi-layer Raspberry Pi boards.
Technical Details
· A power module especially designed for Raspberry Pi, which enables using the Raspberry Pi in a moveable manner· Battery capacity: 3800mAH (maximum) (Not Included); Output current: 1.8A· Output voltage (no load): 5.1V ± 0.1V

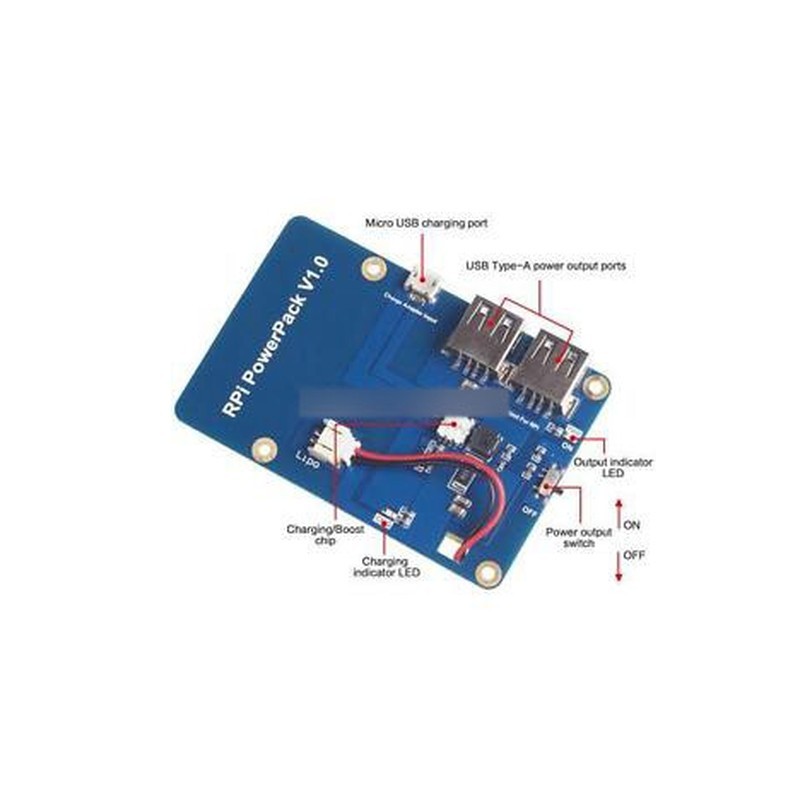

· Double USB outputs, one for the Raspberry Pi, the other for the embedded LCD screen

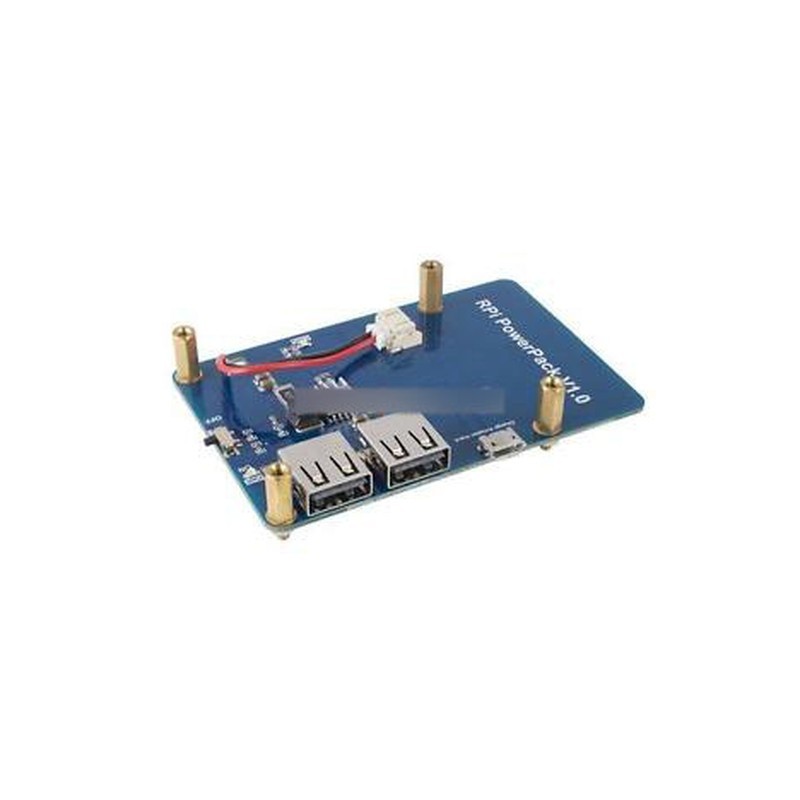

· Coming with fastening standoffs, screws and nut, so you can stack the Raspberry Pi board on the module
Specifications:
Battery capacity: ≤3800mAH ( Not Included)
Maximum discharge current: 1.8A
No-load output voltage: 5.1V ± 0.1V
Standard charging current/voltage: 1.0A/5.0V
Cut-off voltage of fully charging the Li-ion battery: 4.18V - 4.2V
It is unsafe to have battery on transmit, so the product will not contain it, thanks!Package Included:
1 x Lithium Battery Expansion board (without lithium battery) 4 x Copper stand

Bővebb leírás

-1 / 2 / Gyorsan Fogyó termék

1 219 Ft‎

-51%

2 489 Ft‎

Egyéb infó

Lithium Battery PowerPack Expansion Board with Dual USB Output for Raspberry Pi3Introduction
The power module is designed for the Raspberry Pi 3 Model B specially, allowing the master board to work offline for up to 9 hours. It's not only supplying for Raspberry Pi; this board has 2 USB type-A ports – one supplies power for the Raspberry Pi and the other for the embedded LCD screen.
The module integrates a Li-ion battery charger IC, a boost management chip. And it is developed in strict accordance with the size of the international Raspberry Pi expansion board HAT, using only simple copper standoffs to install multi-layer Raspberry Pi boards.
Technical Details
· A power module especially designed for Raspberry Pi, which enables using the Raspberry Pi in a moveable manner· Battery capacity: 3800mAH (maximum) (Not Included); Output current: 1.8A· Output voltage (no load): 5.1V ± 0.1V
· Double USB outputs, one for the Raspberry Pi, the other for the embedded LCD screen
· Coming with fastening standoffs, screws and nut, so you can stack the Raspberry Pi board on the module
Specifications:
Battery capacity: ≤3800mAH ( Not Included)
Maximum discharge current: 1.8A
No-load output voltage: 5.1V ± 0.1V
Standard charging current/voltage: 1.0A/5.0V
Cut-off voltage of fully charging the Li-ion battery: 4.18V - 4.2V
It is unsafe to have battery on transmit, so the product will not contain it, thanks!Package Included:
1 x Lithium Battery Expansion board (without lithium battery) 4 x Copper stand
