PAM8610 12V 2x15W AMP erősítő panel Mini HIFI digitális hangcsere TA2024 cseréje

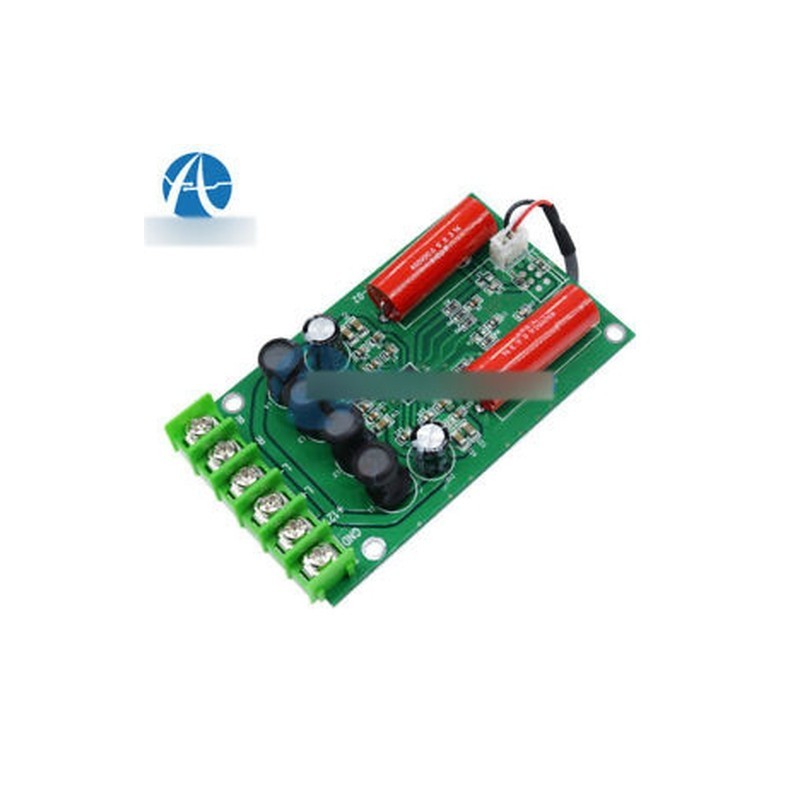

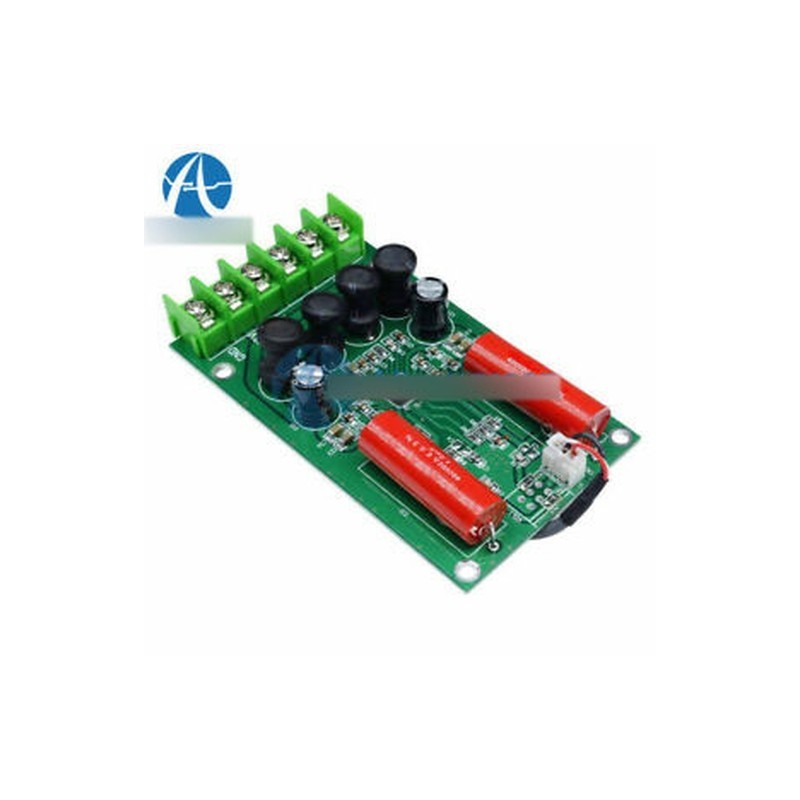

PAM8610 12V 2x15W AMP Amplifier Board Mini HIFI Digital Audio Replace TA2024DescriptionThis board is designed around the Tripath PAM8610 integrated circuit. The PAM8610 is a 15W/channel continuous average two-channel Class-T Digital Audio Power Amplifier IC using Tripath's proprietary Digital Power Processing™ technology. Class-T amplifiers offer both the audio fidelity of a Class-AB amplifier and the power efficiency of a Class-D amplifier.Perfect for projects, this board features over-current and over-temperature protection circuits. It can be built into powered speakers or used as a standalone amplifier. The board's small size is even ideal for inclusion in OEM products or store displays.Specifications: Output power: 9W x 2 @ 4 ohms (0.04% THD N), 11W x 2 @ 4 ohms (0.1% THD N), 6W x 2 @ 8 ohms (0.1% THD N), 15W x 2 @ 4 ohms (10% THD N), 10W x 2 @ 8 ohm (THD N) IHF-IM: 0.18% @ 1W, 4 ohms Efficiency: 88% @ 10W, 8 ohms Dynamic range: 102 dB Recommended power: 12 VDC, 2A Dimensions: Board: 3.54" x 2.09" (90 x 53 mm); Mounting holes (center to center): 2.88" x 1.81".HighlightsPre-assembled, pre-tested for easy project integration
Class T fidelity and energy efficiency
2 x 15W continuous power, adequate for most speakers
