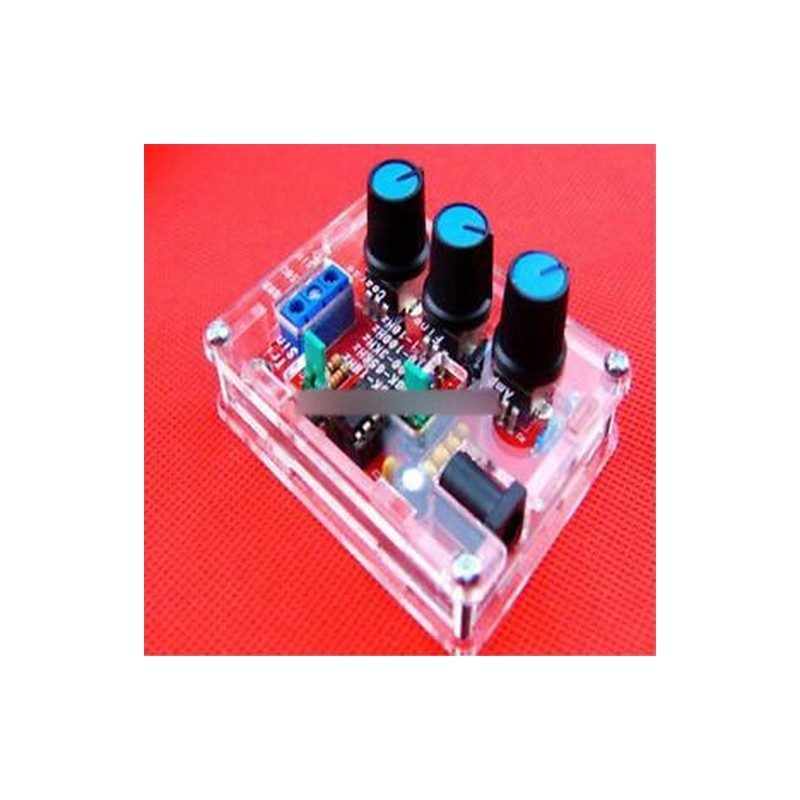

XR2206 Funkciógenerátor DIY készlet Sine háromszög négyzet kimenete 1HZ-1MHZ tok

XR2206 Function Generator DIY Kit Sine Triangle Square Output 1HZ-1MHZ Case Features: These are all the parts, it need your own welding and installation
Voltage Supply: 9-12V DC Input

Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm 10%
Frequency: 1Hz - 1MHz
SINE WAVE
Amplitude: 0 - 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: 0.05dB 1Hz - 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)
TRIANGLE WAVE
Amplitude: 0 - 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA
2. The Function Generator component parameter table
Notelabeltypeparameters
R1resistor1KRegardless of the polarity
R2Adjustable resistanceB503=50K(by screen printing layer)
R3, R5,R6resistor5.1KRegardless of the polarity
R4resistor330Regardless of the polarity
R7Adjustable resistanceB503=50K(by screen printing layer)
R8Adjustable resistanceB104=100K(by screen printing layer)
C1,Electrolytic capacitor100UFThe positive short feet negative long feet
C2non-polar capacitors104Regardless of the polarity
C3,C4Electrolytic capacitor10UFThe positive short feet negative long feet
C5non-polar capacitors105Regardless of the polarity
C6non-polar capacitors473Regardless of the polarity
C7non-polar capacitors222Regardless of the polarity
C8non-polar capacitors101Regardless of the polarity
U1ICXR2206(by screen printing layer)
JK1DC POWER (by screen printing layer)
J12PIN Jumper capXM2.54Regardless of the polarity
J22PIN Jumper capXM2.54Regardless of the polarity
P1Signal wire terminal (by screen printing layer)
J32*5P Jumper cap 3．The welding installation considerations, follow these steps:1. The components are welding the front board, from low to high principles, namely the first low welding components, such as, capacitor, resistor, diode, etc. 2.Welding IC socket, terminal blocks, finally power socket, adjustable potentiometer.3.The back with a diagonal cutting pliers to cut short the pins as far as possible4．Debugging steps:1．After completion of welding on IC, XR2206, pay attention to the direction of IC, insert the might damage the chip!2. check the IC whether against, such as anti please timely correction.3. Insert the power supply, power supply for 5.5 * 2.1 port, inside outside is negative polarity. For 9-12 v power supply voltage. The waveform may not be stable for more than 12 v5．Using the step1. J1 jumper cap plug in, SIN/TRI blue terminals output sine wave (note J1, J2 can only insert one of)2. J2 jumper cap plug in, SIN/TRI blue terminals output triangular wave (note J1, J2 can only insert one of)3. SQU blue terminals output pulse4. AMP : Sine wave, triangle wave amplitude adjustment5. FINE : Frequency fine adjustment6. Coarse : Frequency of coarse adjustment

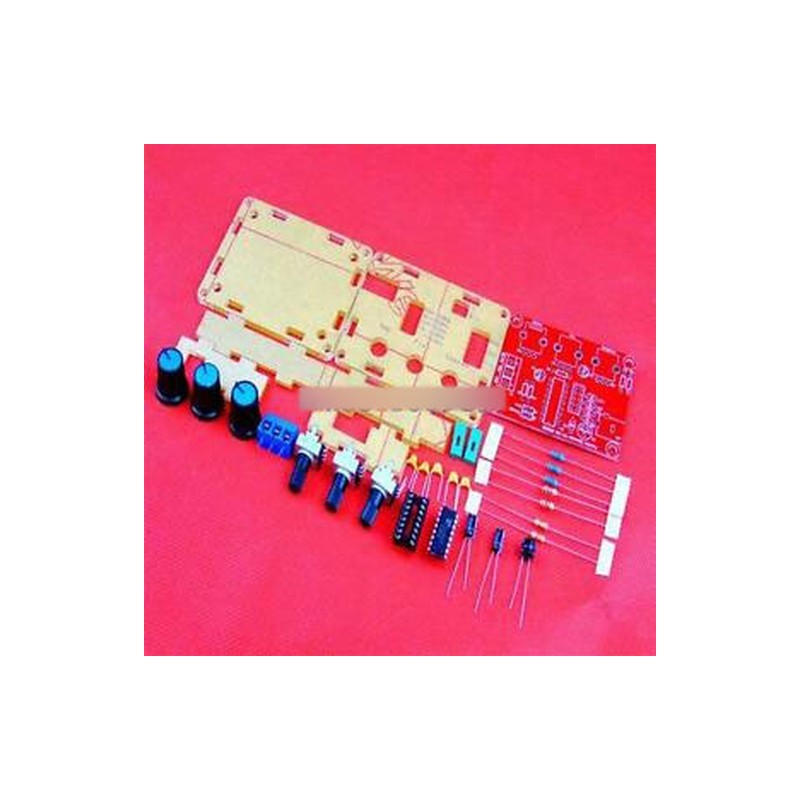

6．Schematic diagram of Function Generator Package Included: 1 x XR2206 Function Generator DIY Kit Sine, Triangle, Square
