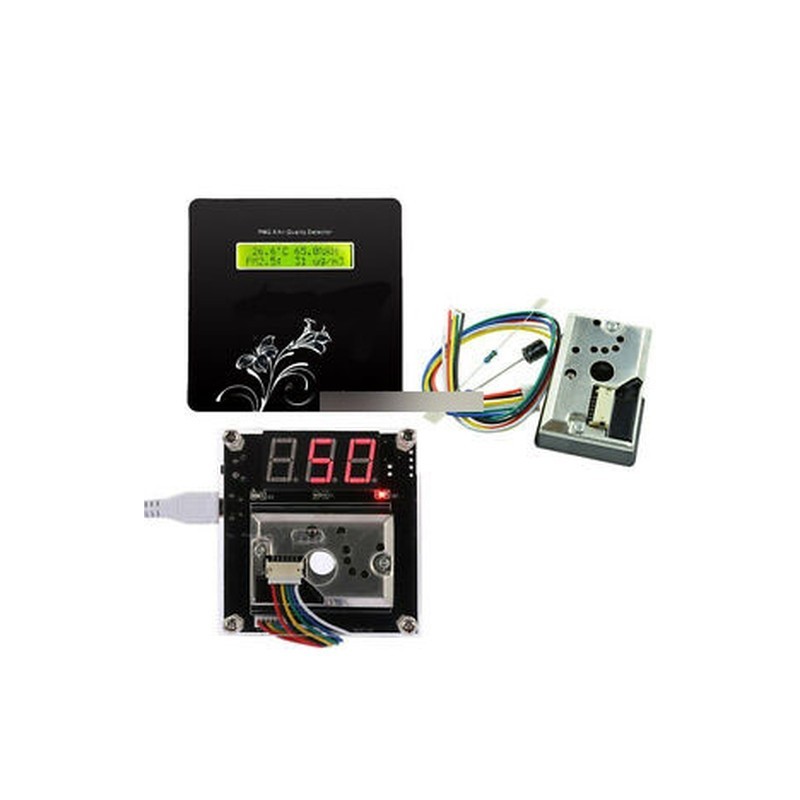

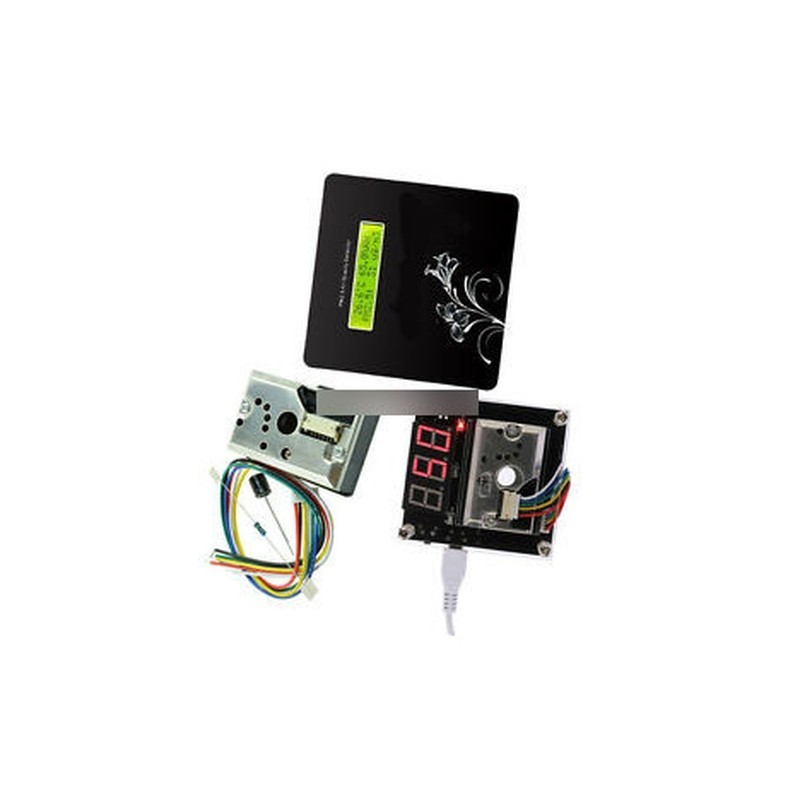

PM2.5 LED LCD1602 porfüstmérő érzékelő levegőminőség-érzékelő GP2Y1014AU0F

PM2.5 LED LCD1602 Dust Smoke Measuring Sensor Air Quality Detector GP2Y1014AU0F

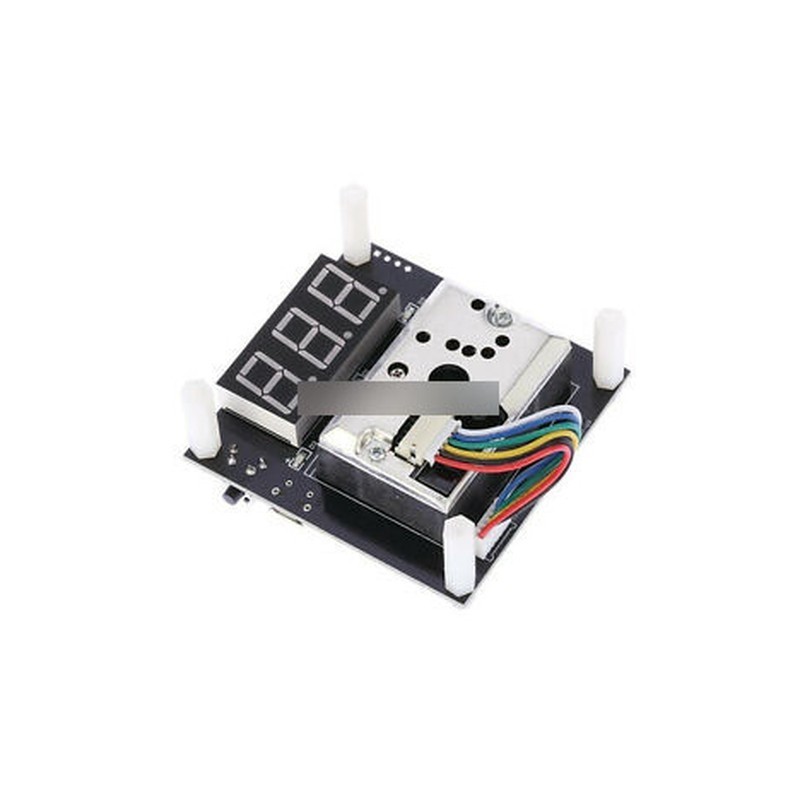

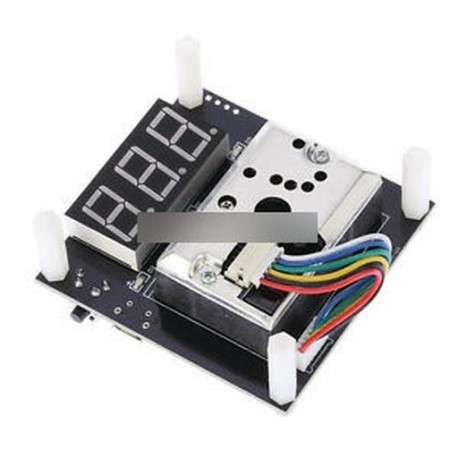

Description;LED PM2.5 Air Quality detector
This product uses three digital tube display with a range of 0-999. This product adopts SHARP optical dust sensor which features low current consumption and high sensitivity of 0.5V/0.1mg/m3. Features:
LED digital display, convenient for clear readings.
Range: 0~999, sensitivity: 0.5V/0.1mg/mÂł.
With Micro USB interface, powered by DC 5V.
Compensation setting function, numerical range: -50~50.
Three LED indicators, indicating the surrounding environment. Indicator Instruction:
When the value is less than 150, the green D2 light turns on, the surrounding environment is relatively healthy;
When the value is greater than 200 and less than 400, the yellow D1 light turns on, the surrounding environment is moderate pollution;
When the value is greater than 400 less than 700, the red D3 light turns on, the surrounding environment is severe pollution;
When the value is greater than 800, all light turns on, the surrounding environment is serious pollution. Specifications:
Display: LED Digital Display
Power Supply: Micro USB DC 5V
Range: 0~999
Sensitivity: 0.5V/0.1mg/mÂł
Compensation Numerical Range: -50~50
PCB Size: 65 * 63 * 24mm / 2.56 * 2.48 * 0.95in
Weight: 60g / 2.12oz Package Included:
1 x Air Quality Detector Module Digital LCD PM2.5 DetectorThis product uses 1602 LCD screen to display PM1.0/PM2.5/PM10 concentration, temperature and humidity of the surrounding environment. This product adopts PMS5003 sensor which can get the quality and quantity of the suspended particle.Features:1602 LCD digital display, convenient for clear readings.
Detect the PM1.0/PM2.5/PM10 concentration in the air.
Display the temperature and humidity on main interface, °C/°F selectable.
Count the particle(>0.3ÎĽm/0.5ÎĽm/1.0ÎĽm/2.5ÎĽm/5.0ÎĽm/10ÎĽm) quantity in 0.1L air.
Short press the button to switch the display interfaces conveniently.
PM2.5 concentration>75ÎĽg/mÂł, high level output; PM2.5 concentration<75ÎĽg/mÂł, low level output.
Can also externally connect with relay to control air purifier switch.
With Micro USB interface, powered by DC 5V.
Three LED indicators, great for environment monitoring. Indicator Instruction:Green Indicator: Normally ON(0-34 ÎĽg/mÂł): Good; Flash(35-74ÎĽg/mÂł): Medium
Yellow Indicator: Normally ON(75-114 ÎĽg/mÂł): Unhealthy for sensitive groups; Flash(115-149 ÎĽg/mÂł): Unhealthy
Red Indicator: Normally ON(150-249 ÎĽg/mÂł): Extremely unhealthy; Flash(249ÎĽg/mÂł or above): HazardousSpecifications:Display: 1602 LCD Digital Display
Particle Matter Measuring Range: 0.3~1.0ÎĽm; 1.0~2.5ÎĽm; 2.5~10ÎĽm
Particle Matter Counting Efficiency: 50% @0.3ÎĽm, 98% @>=0.5ÎĽm
Particle Matter Concentration: 0~500ÎĽg/mÂł
Resolution: 1ÎĽg/mÂł
Formaldehyde Effective Range: 0~1mg/mÂł
Max. Formaldehyde Range: 0~2mg/mÂł
Formaldehyde Resolution: 0.001mg/mÂł
Formaldehyde Error: <( /-)5% FS
Single Response Time: <1s
Comprehensive Response Time: <=10s
Power Supply: Micro USB DC 5V
Operating Current: <=100mA
Static Current: <=200ÎĽA
Level: L: <0.8 3="" h:="">2.7 @3.3
Operating Temperature: -10~50°C
Operating Humidity: 0-99%
Item Size: 120 * 120 * 40mm / 4.72 * 4.72 * 1.57in
Item Weight: 125g / 4.4oz
Package Size: 15.5 * 14 * 4.5cm / 6.1 * 5.5 * 1.77in
Package Weight: 159g / 5.6ozPackage List:1 * Air Quality Detector ModulePM2.5 GP2Y1014AU0FFeatures:
Power supply voltage: 5-7V
Working temperature: -10-65 ° C
Consumption current: 20mA Maximum
The smallest particles detected value: 0.8 m
Sensitivity: 0.5V / (0.1mg / m3)
Clean air voltage: 0.9V typ.
Working temperature: -10 ~ 65 ℃
Storage temperature: -20 ~ 80 ℃
Size: 46mm X 30mm X 17.6mm
Download:
http://www.uctronics.com/download/U4650_GP2Y1014AU0F.zip
Package Included:1PCS X GP2Y1014AU0F PM2.5 Dust Smoke Particle Sensor Modul
