I2C modul Arduino robothoz - PCA9685 TB6612 16-csatornás 12 bites PWM szervomotor meghajtó I2C modul Arduino

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!

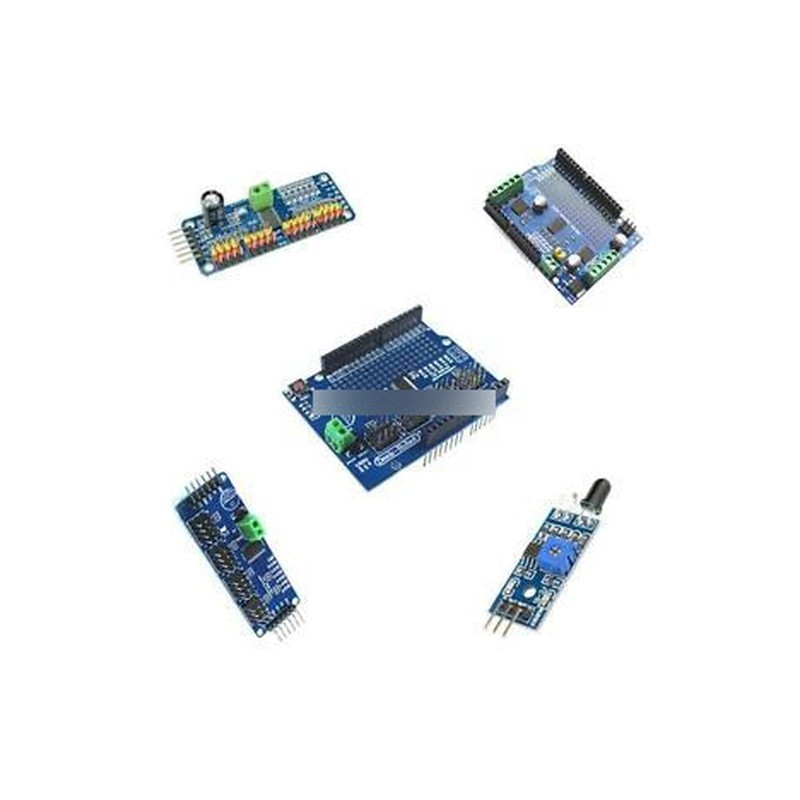

PCA9685 TB6612 16-Channel 12-bit PWM Servo motor Driver I2C Module For Arduino
IR Module for Car Robot
1. When the module detects an obstacle in front of the signal, the circuit board green indicator light levels while continuing output low signal OUT port, the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential control to adjust, adjust potentiometer clockwise, the detection distance increases; counterclockwise adjustment potentiometer, detection distance decreases.
2, the sensor active infrared reflection detection, target reflectivity and shape of the detection distance of the key. The minimum detection distance which black and white max; small area of the object distance is small, a large area from the Grand.
3, the sensor module output port OUT can be directly connected with the microcontroller IO port can also be driven directly to a 5V relay; Connection: VCC-VCC; GND-GND; OUT-IO
4, the comparator using LM393, job stability;
5, can be 3-5V DC power supply for the module. When the power is turned on, the red power indicator light;
6, with 3mm screw holes for easy mounting, installation;
7, the circuit board size: 3.2CM * 1.4CM
8, each module in the delivery has threshold comparator voltage adjustable via potentiometer, special circumstances, please do not adjust the potentiometer.
Interface:
1. VCC external 3.3V-5V voltage (5v microcontroller and can be directly connected to 3.3v MCU);
2. GND an external GND;
3. OUT small board digital output interfaces (0 and 1);
Package Included:1 x Smart car Obstacle avoidance Infrared Sensor module Reflective photoelectric\I2C Module For Arduino Robot
You want to make a robot, When we saw this chip, we quickly realized what an excellent add-on this would be.
Using only two pins, control 16 free-running PWM outputs!
I2C input, control 16 PWM output, you can control the 16 way servo motor.
Frequency: 40-1000Hz.
Channel number: 16 channel.
Resolution: 12 bit.
Voltage: DC 5-10V
Size: 60*25mm
Color: blue
Net Weight: 12 g
Package Included:1 x PCA9685 16 Channel 12-bit PWM Servo motor Driver I2C Module Arduino Robot Servo I2C Module For Arduino Robot
Using only two pins, control 16 free-running PWM outputs! You can even chain up 62 breakouts to control up to 992 PWM outputs
It's an i2c-controlled PWM driver with a built in clock. That means that, unlike the TLC5940 family, you do not need to continuously send it signal tying up your microcontroller, its completely free running!
It is 5V compliant, which means you can control it from a 3.3V microcontroller and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4 forward voltages)
6 address select pins so you can wire up to 62 of these on a single i2c bus, a total of 992 outputs - that's a lot of servos or LEDs
Adjustable frequency PWM up to about 1.6 KHz
12-bit resolution for each output - for servos, that means about 4us resolution at 60Hz update rate
Configurable push-pull or open-drain output
Output enable pin to quickly disable all the outputs
We wrapped up this lovely chip into a breakout board with a couple nice extras
Terminal block for power input (or you can use the 0.1" breakouts on the side)
Reverse polarity protection on the terminal block input
Green power-good LED
3 pin connectors in groups of 4 so you can plug in 16 servos at once (Servo plugs are slightly wider than 0.1" so you can only stack 4 next to each other on 0.1" header
"Chain-able" design
A spot to place a big capacitor on the V line (in case you need it)
330 ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial
Solder jumpers for the 6 address select pins
Package Included:1 * 16-Channel 12-bit PWM/Servo Driver-I2C interface-PCA9685 For Arduino NEWTB6612/PCA9685 Motor DriverMake your own Arduino motor party with a motor shield and a fine assortment of motors!
The original L293D Motorshield kit is one of our most beloved kits, We kept the ability to drive up to 4 DC motors or 2 stepper motors, but added many improvements:
Instead of a L293D darlington driver, we now have the TB6612 MOSFET driver: with 1.2A per channel and 3A peak current capability. It also has much lower voltage drops across the motor so you get more torque out of your batteries, and there are built-in flyback diodes as well.
Instead of using a latch and the Arduino's PWM pins, we have a fully-dedicated PWM driver chip onboard. This chip handles all the motor and speed controls over I2C. Only two pins (SDA & SCL) are required to drive the multiple motors, and since it's I2C you can also connect any other I2C devices or shields to the same pins. This also makes it drop-in compatible with any Arduino, such as the Uno, Due, Leonardo and Mega R3.
Completely stackable design: 5 address-select pins means up to 32 stackable shields: that's 64 steppers or 128 DC motors! What on earth could you do with that many steppers? I have no idea but if you come up with something send us a photo because that would be a pretty glorious project.
Tested compatible with Arduino UNO, Leonardo, ADK/Mega R3, Due, Diecimila & Duemilanove. Works with Mega/ADK R2 and earlier with 2 wire jumpers.
Package Included:1 x Motor/Stepper/Servo/Robot Shield for Arduino I2C v2 Kit w/ PWM DriverServo Drive shieldIt's an i2c-controlled PWM driver with a built in clock. That means that, unlike the TLC5940 family, you do not need to continuously send it signal tying up your microcontroller, its completely free running!
It is 5V compliant, which means you can control it from a 3.3V microcontroller and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4 forward voltages)
6 address select pins so you can wire up to 62 of these on a single i2c bus, a total of 992 outputs - that's a lot of servos or LEDs
Adjustable frequency PWM up to about 1.6 KHz
12-bit resolution for each output - for servos, that means about 4us resolution at 60Hz update rate
Configurable push-pull or open-drain output
Output enable pin to quickly disable all the outputsWe wrapped up this lovely chip into a breakout board with a couple nice extras
Terminal block for power input (or you can use the 0.1" breakouts on the side)
Reverse polarity protection on the terminal block input
3 pin connectors in groups of 4 so you can plug in 16 servos at once (Servo plugs are slightly wider than 0.1" so you can only stack 4 next to each other on 0.1" header
"Chain-able" design
A spot to place a big capacitor on the V line (in case you need it)
330 ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial
Solder jumpers for the 6 address select pins
Package Included:1 x New 16-Channel 12-bit PWM/Servo Driver -I2C
