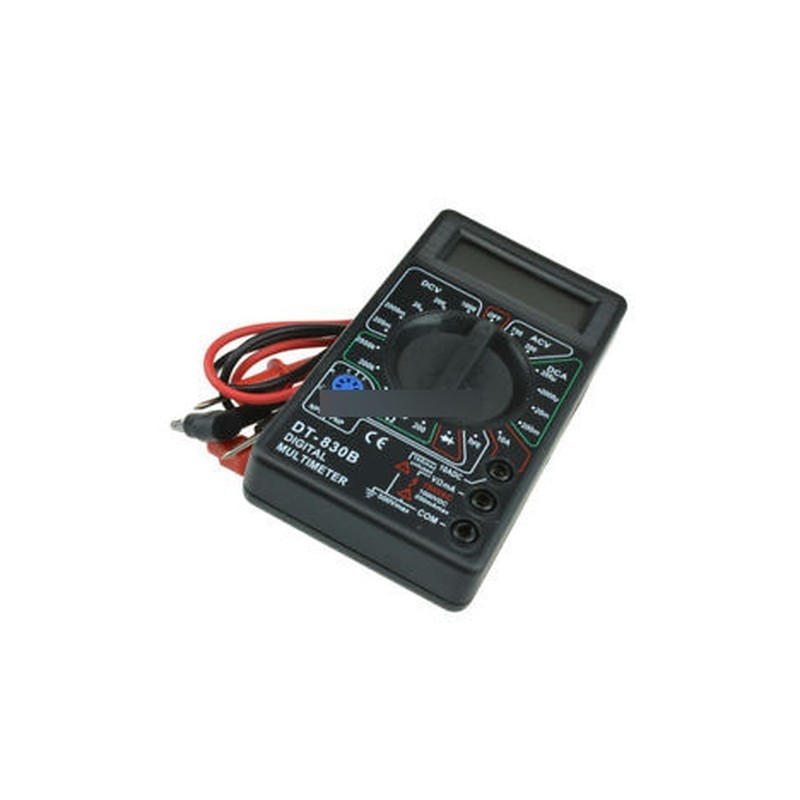

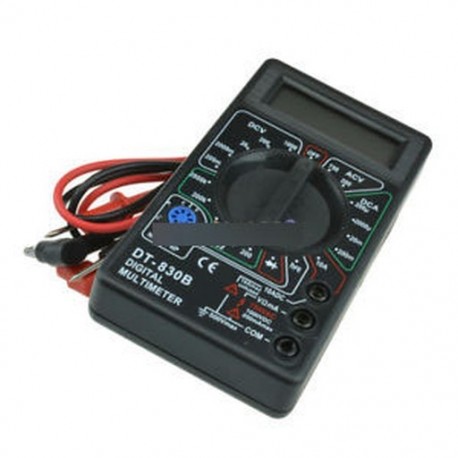

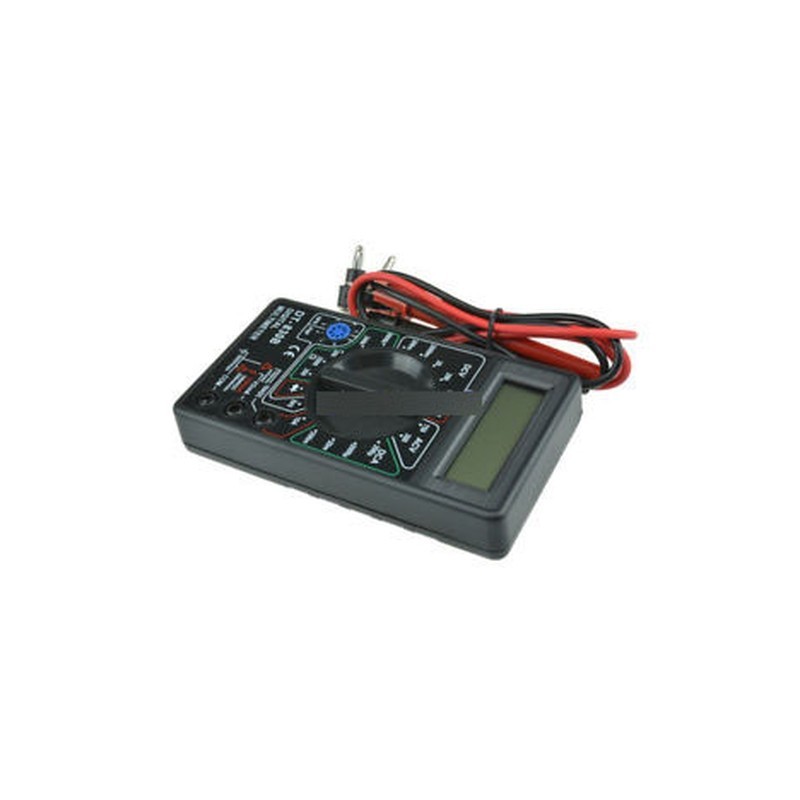

DT830B multiméter - Multiméter DT9205A / MS8233E / DT-830B / XL830L / VC921 feszültségmérő mérőmérő digitális

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
Multimeter DT9205A/MS8233E/DT-830B/XL830L/VC921 Voltmeter Ammeter Tester DigitalDT830BNOTE : We DON'T offer battery !!!!Mini size and low cost multimeter which can be used to measure
resistant, AC, DC Voltage, DC current, transistor, diode. It has Low-Battery indicator.
Specification:
Maximum reading: 1999
DC Voltage: 200mV-1000V
AC Voltage: 200-750V
DC Current: 2000uA-10A
Power by: 6F22 9V battery (not include)
LCD Size: 15 x 46mm/0.6 x 1.8inch
Dimension: 124 x 68 x 23mm/4.9 x 2.7 x 0.9inch
Package Include:1 x Digital Multimeter AC DC Voltmeter Ohmmeter Electrical Multi Tester DT-830BXL830L
NOTE : We NOT offer battery !!!!The Digital Multimeter is a practical tool for electrician use.
It is easy to operate and the readings indicated directly on the screen.
It can be use to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students.
15mm high LCD Display.
Max display: 1999, Auto polarity display.
Portable and compact design, overload protection on all ranges.
Diode assembly test/Transistor P-N junction test/Transistor HFE test.
Continuity test with buzzer sound in circuit.
Low battery voltage indication.
DC Voltage: 200mV/2V/20V/200V ±0.5% , 600V ±0.8% .
AC Voltage: 200V/600V ±1.2% .
DC Current: 200μA/2mA/20mA ±1% , 200mA ±1.5% , 10A ±3% .
Resistance: 200ω/2Kω/20Kω/200Kω/2Mω ±0.8% .
Fuse protection: F-200mA/250V.
Operating Temperature: -0℃ to 40℃.
Overrange Indication: Only figure "1" on the display.
Polarity Indication: "-" displayed for negative polarity.
Low Battery Indication: - / display.
Battery: 9V (Battery not include).
Dimension: Approx 138mm x 69mm x 31mm.
Package include:1 x Digital LCD Multimeter XL-830L Voltmeter Ammeter Ohmmeter Tester
DT9205A
Note : We NOT offer battery !!!Product DescriptionThe perfect all around tool for working with anything electrical!
Very useful for debugging electrical problems including small power wires, car components, small electrical circuits, and more!
Automatic shut off after a while of no usage to save on batteries
Please do not try and measure voltages or currents beyond what is supported for safety concernsSpecifications:
DC Voltage: 200mV / 2V / 20V / 200V / 1000V
AC Voltage: 200mV / 2V / 20V /200V / 700V
DC Current: 2mA / 20mA / 200mA / 20A
AC Current: 2mA / 20mA / 200mA / 20A
Resistance: 200 / 2K / 20K / 200K / 2M / 20M / 200M
Capacitance: 200F / 20F / 2F / 200nF / 20nF
Fuse Protection: 250V / 0.2A
Operating Temperature: -20°C to 400°C
Package Include:1 x Digital DT9205A Multimeter LCD AC/DC Ammeter Resistance Capacitance Tester
VC921
NOTE : We NOT offer battery !!!!
The design of the unit symbol display, more convenient to use
High anti-jamming
The power off automatically after no-working 15 minutes and alarming before the power failure one minute
Full function protection, anti-high voltage circuit design
The new battery door design, easy to replace the battery(not include)
Package Include: 1 x Mini VICTOR VC921 3 3/4 DMM Multimeter Pocket Digital AC/DC Multimeter Frequency
MS8233E NOTE : We NOT offer battery !!!!
Features:
1.This Meter is a handheld and battery operated Digital Multi
2.Meter(DMM) with multi function. This Meter is designed to meet IEC61010-1 & CAT II 600V over voltage category and double insulation.
3.The meter with holster that is giving the main body, though downsized,high resistance against the shock of a drop.
4.This operating instruction covers information on safety and caution.
5.Please read relevant information carefully and observe all the warnings and note strictly.
6.The DMM as general measurement tool and widely used in the school, laboratory,factory and other social field.Specifications:
1.DC Voltage: 200mV/2V/20V/200V ±(0.5% 2)/600V ±(0.8% 2)
2.AC Voltage: 2V/20V/200V/600V ±(1.0% 3)
3.DC Current: 200μA/2mA/20mA/200mA ±(1.0% 3)/10A ±(3.0% 3)
4.AC Current: 200μA/2mA/20mA/200mA ±(1.2% 3)/10A ±(3.0% 5)
5.Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ ±(0.8% 2)/20MΩ ±(1.0% 2)
6.Temperature(°C): -20°C~1000°C ±(3.0% 3)
7.Temperature(°F): -4°F~1832°F ±(3.0% 3)
8.Display: 2000 Counts
9.Auto range √
10.Data hold √
11.Back light √
12.Diode test √
13.Continuity √
14.Maximum Value hold √
15.Power supply: 9V6F22 Battery(Battery Not Included)
16.Size: 140mm x67mm x30mm
17.Safety Rating CE CAT.II600V RoHS
Package Include: 1xMS8233E Multimeter LCD AC/DC Ammeter Resistance Capacitance Tester
