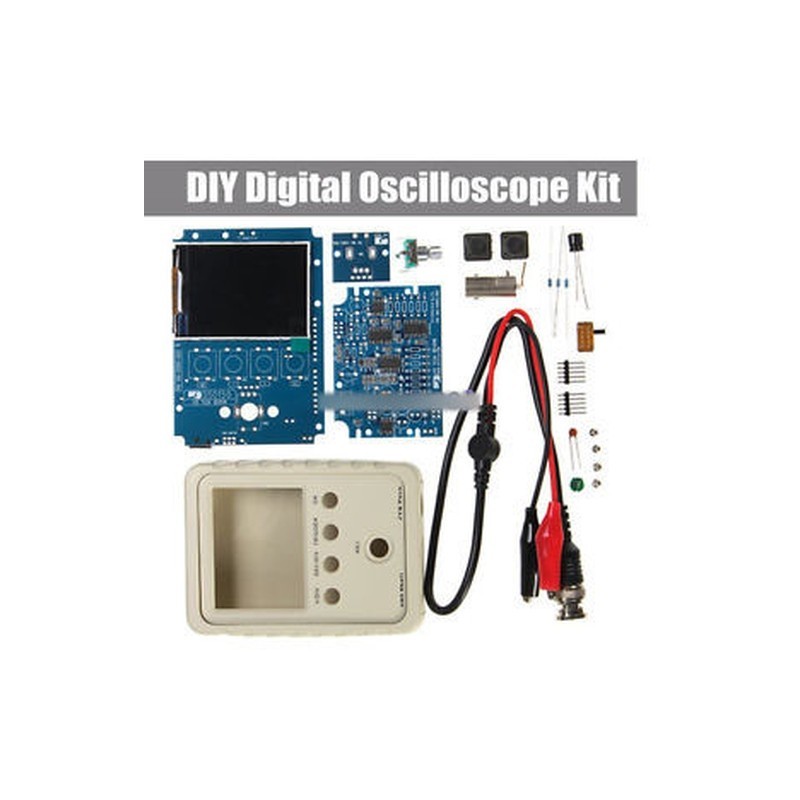

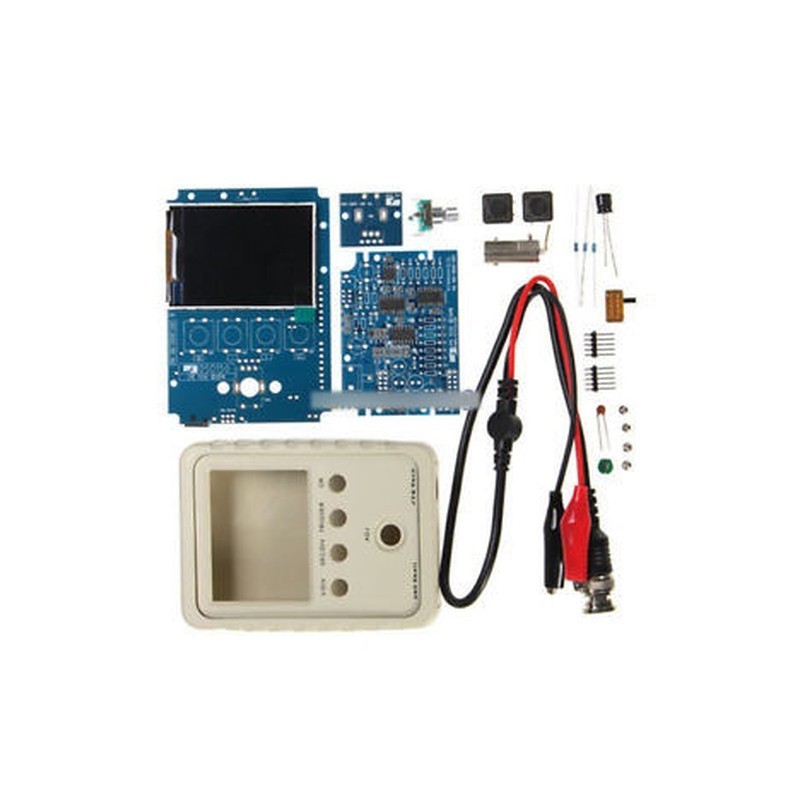

DSO150 15001K DSO-SHELL digitális elektronikus oszcilloszkóp szett ház DIY készlet

DSO150 15001K DSO-SHELL Digital Electronic Oscilloscope Set With Housing DIY Kit
DS0150 15001K DSO-SHELL Digital Electronic Oscilloscope Set With Housing DIY Kit
Note:This is a DIY kit, need to have some basic electronic activity and ability.
SMD soldered version, operation is more easier.Features:Kits using ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display can be used as ARM test development board.
Circuit is simple and the kit is inexpensiveCharacteristics of indicators:Supply voltage: DC 9V
Maximum real-time sampling rate: 1Msps
Accuracy: 12Bit
Sampling buffer depth: 1024 bytes
Analog bandwidth: 0 - 200KHz
Vertical Sensitivity: 5mV / Div - 20V / Div
Adjustable vertical displacement, and with instructions
Input impedance: 1MΩ
Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
Coupling modes: DC / AC / GND
The horizontal time base range: 10ÎĽs / Div - 50s / Div (1-2-5 progressive manner)
With automatic, regular and one-shot mode, easy to capture the moment waveform
Available rising or falling edge trigger
Adjustable trigger level position, and with instructions
Observable previous trigger waveform (negative delay)
Can freeze at any time waveform display (HOLD function)
Comes 1Hz /3.3V square wave test signal sourcePackage included:1 x DIY DS0150 Digital Oscilloscope Kit Payment
