Állítható jelgenerátor - 12V / 24V jelgenerátor panel 0,1 / 4-20mA 0-24.0V áram feszültségjeladóhoz

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!

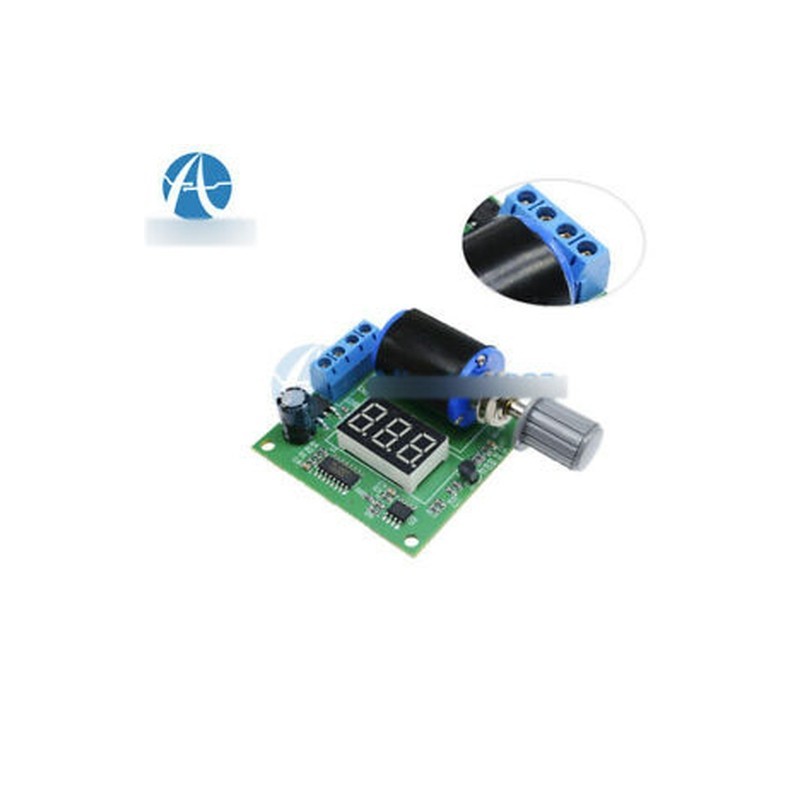

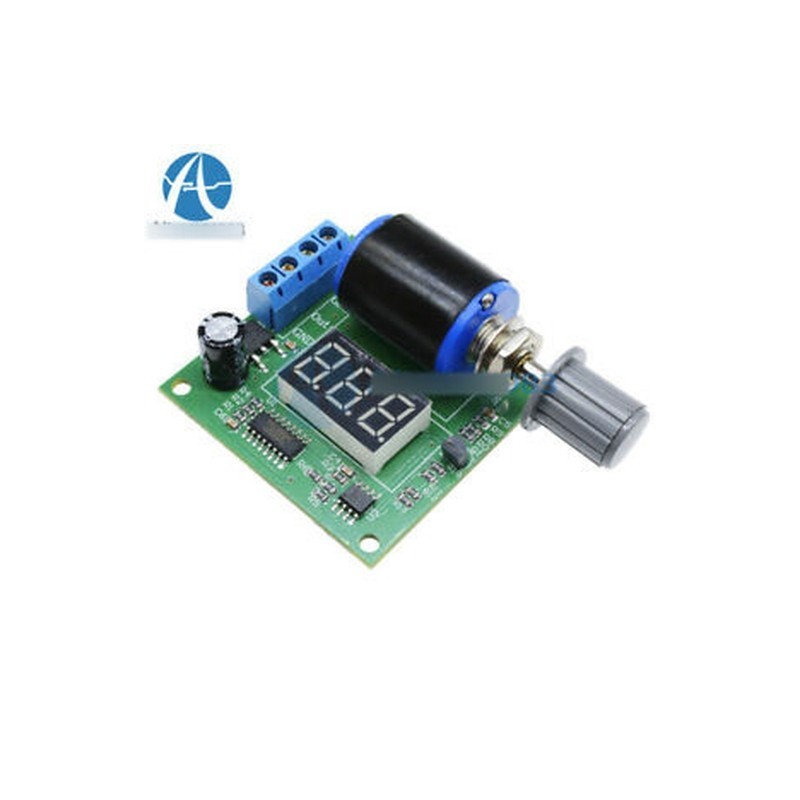

12V/24V Signal Generator Board 0.1/4-20mA To 0-24.0V Current Voltage Transmitter
Adjustable Signal Generator
Easy to use and connect the wire, good performance.
Knob operation, immediately after adjusting the response output, no delay.
The power port has polarity protection, will not damage the components with power reverse.
Power supply voltage: DC 12V or 24V(tolerance ±25% ), total power<1W.
Output load impedance range: 0-350 ohms(DC12V); 0-800 ohms(DC 24V).
The test output is normal, you can use a multimeter shorted "4-20mA output" terminal.
Can be used for signal sources, valve adjustment, output meter test, the light emitting diode test, analog transmitter.Specifications:
Power Supply: DC 12V or 24V
Current: 4-20mA
Total Power: <1W
Output Load Impedance: 0-350 ohms(DC12V); 0-800 ohms(DC 24V)
PCB Board Size: 50 * 50mm / 1.97 * 1.97in
Product Weight: 38g / 1.37oz
Package List:1 * 4-20mA Signal Generator Module Current to Voltage TransmitterSize 40mm * 25mm * 12mm
Supply voltage: 7-30DC
Input Current: 0 / 4-20mA
Output voltage: 0-2.5v
0-3.3v
0-5.0v
0-10.0v
0-15.0v
0-24.0v
Temperature drift: - 100ppm / c
Ambient temperature: -10-60c
Storage temperature: -20-85C
Relative humidity: -20-85C
Atmospheric pressure: 86-106KPA
Package Included:1 xCurrent-to-Voltage Module
