AC 0-100A LCD feszültségű digitális árammérő mérőmérő feszültségmérő DC Shunt

AC 0-100A LCD Volt Digital Current Power Meter Ammeter Voltmeter Meter DC Shunt
0-100A LCD Volt AC 80-260V Current Power Meter Ammeter Voltmeter Meter ShuntFeatures:100A LCD Digital Volt Watt Current Power MeterElectrical parameter measurement function (voltage, current, active power).
The voltage alarm function (over voltage threshold alarm, the backlight and volt flashing prompt).
The 100A meter is equiped with shunk.
Power-down data storage function and long press botton for energy clear function.
The full LCD screen display function (display voltage, current, active power).Electrical parameter measurement function (voltage, current, active power, Energy)
Overload alarm function (over power alarm threshold, backlight and power flashing to alarm)
The reset function of Energy key
Store data when Power-off
Large-screen LCD display (display voltage, current, active power, Energy at the same time)
Backlight function.1.Power: test range: 0-22kW
Within 1kW, the display format is 0.0-999.9W;
Within 1kW-10kW, the display format is1000-9999W;
10kW and above, the display format is 0.1-22.0kW
2.Energy: test range: 0-9999kWh
Within 10kWh, the display format is 0-9999Wh
10kW and above, the display format is 10-9999kWh
3.Current: test range: 0-100A
Display format: 0.00-99.99A
Color: Black
Size: Approx. 90*50*25mm
Net Weight: 94g100A 75mV DC Current Shunt Resistor1. Product Name:DC Shunt.
2. Model:FL-2.
3. Material:Metal, Plastic.
4. Color: Black, Silver Tone.
5. Accuracy:0.5 Class.
6. Current:100A.
7. Voltage Drop:75mV.

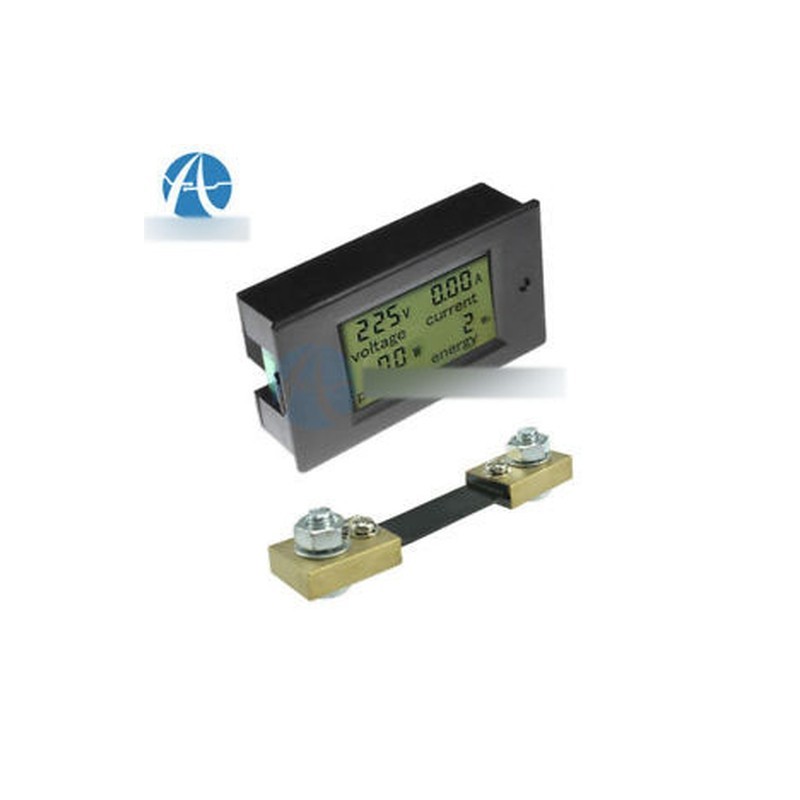

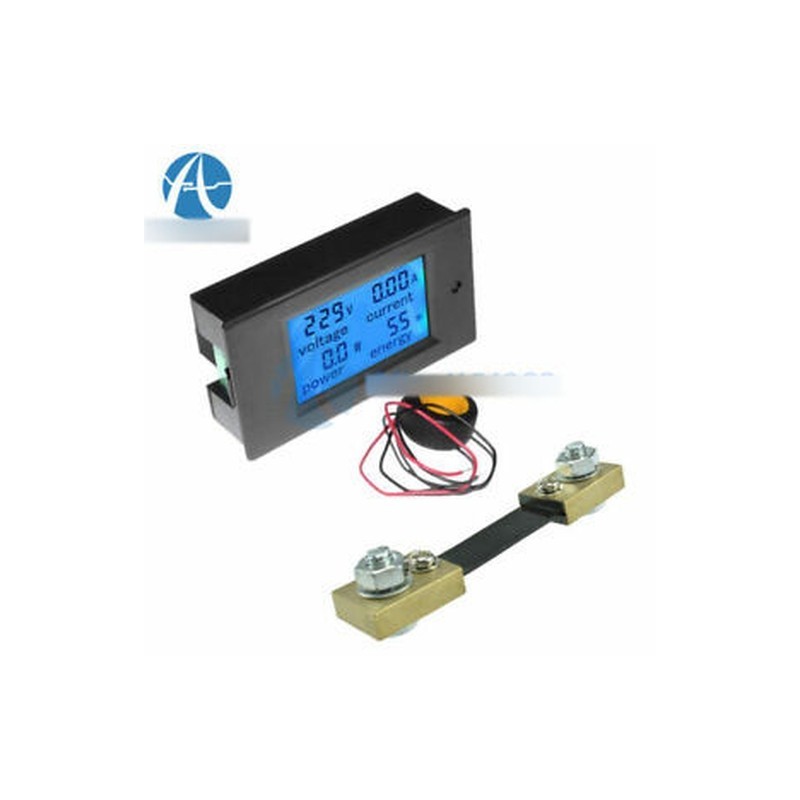

8. Dimension:10.8 x 2.3 x 1cm.Package included1*100A AC LCD Digital Volt Watt Current Power Meter
1*100A 75mV DC Current Shunt Resistor
