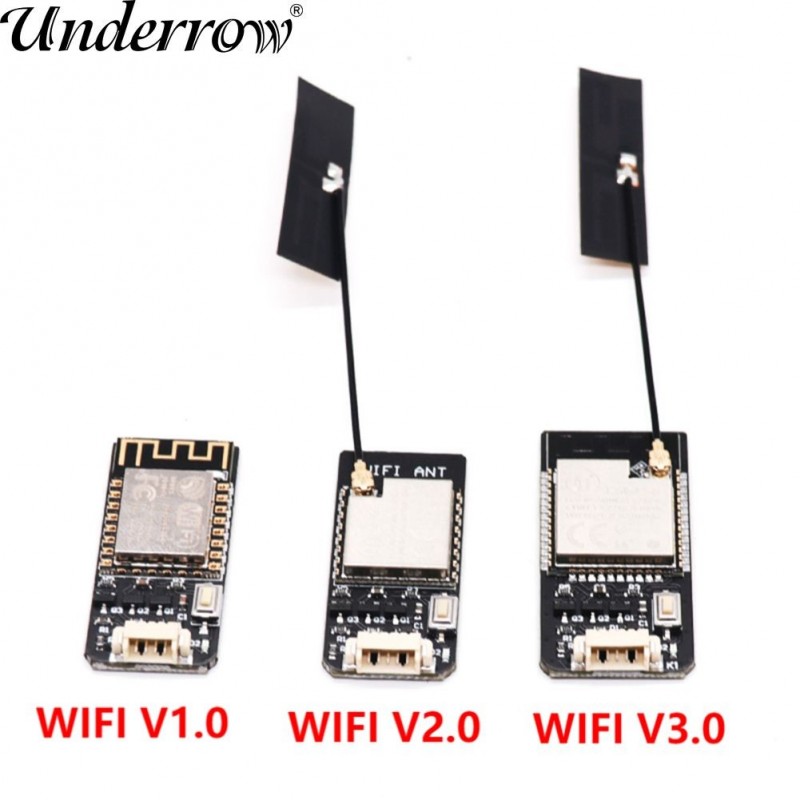

HOW to use WIFI Module for PIXHAWK?
1.How to connect?
use 6P line connects to pixhawk flight controller.
Due to the different firmware, some firmware, two ports can be used, some
firmware can only use one of the ports. So find one of the available ports for
the connection.
IF you use PX4 firmware ,only TELEM1 can be used ,can not use TELEM2.
For Ardupilot firmware , It is recommended to use the TELEM2 port. Or find
one of the available ports for the connection.
For PX4 firmware , should use TELEM1 port.
2.How to use?
Please note：When using Wifi Radio Telemetry connection, it must use 3DR Power
Module or 5V ESC to supply power to the flight control. USB cannot be inserted
because USB priority is higher than Radio Telemetry . If USB cable is plugged
in, it cannot be used for radio telemetry transmission.
The wifi hotspot name is Drone, so use telephone or computer connect to this
hotspot, the password is 12345678.
Note:Some device(For example some iphone IOSsystem) cannot get ip
automatically, you should set manual.
Set the Configure IP as Manual. Set IP address as “192.168.4.5” or other, but
can not set as ” 192.168.4.1″，the last number cannot exceed 254.Set Subnet Mask
as “255.255.255.0”(should set this value, cannot other). Set Router as
“192.168.4.1”(should set this value, cannot other)
When your device connect to this hotspot successfully, you can use browser to
vist http://192.168.4.1 , you can modify parameter.

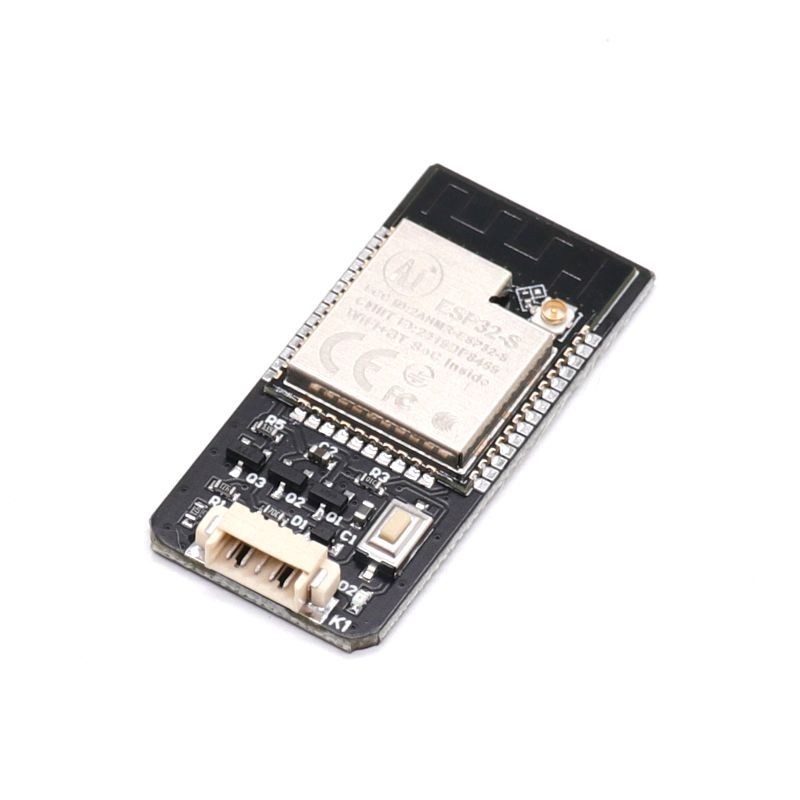

Note, the button is reset button ,not reboot
button, when press the button , all the parameter will be set to default if you
modify some parameter .

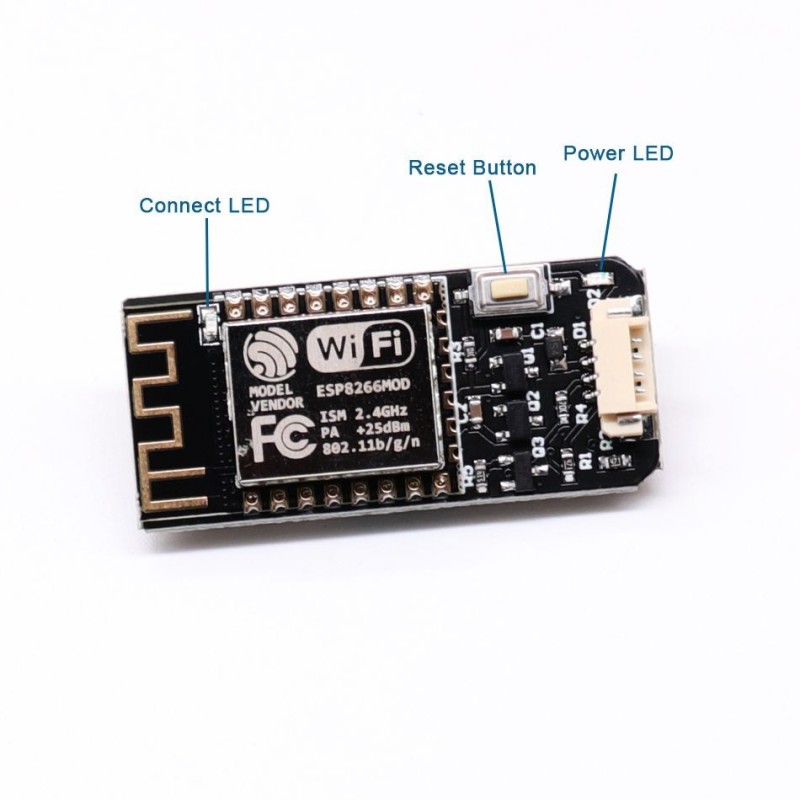

Power LED: when power up, the red LED is on.
Connect LED: when connect with ground control(For example, Mission Planner or
Qgroundcontrol) successfully,the blue LED is flahing. when disconnect with
ground control ,the blue LED is on.
1.How to use for Mission planner ?
Firstly, connect your PC to hotspot Drone successfully. Select UDP. Then
click “Connect” button ,use 14550 port. Click “Ok”.There is no need to choose
the baud rate. The default baud rate of the wifi module is 57600. But 115200 or
other can also work.
2.How to use for Telephone
For Android: Download qgroundcontrol (only for pixhawk,not for APM)
from here,http://qgroundcontrol.com/downloads/
Download DroidPlanner from
here,https://github.com/DroidPlanner/Tower/releases
For iphone(IOS): Search qgroundcontrol on app store.
qgroundcontrol(only for pixhawk,not for APM) can connect automatically,
DroidPlanner should choose “UDP” and “14550” port before connecting to
groundcontrol.
HOW to use WIFI Module for APM?
use 5pin Line connect to APM flight controller.
