Szín: US Plug - ToolkitRC M6 többfunkciós színes képernyős töltő 150w 10A DC kimenet 1-6s szervótesztelő eszköz és


The M6 is the worlds smallest 150w color screen
charger! With a 150w and 10A Charger at its heart the M6 also has a servo
tester, cell checker, a watt meter, PWM/PPM/Sbus input testers and output
generators along with a variable voltage and amperage DC output
control.
Features

Battery Charger

Cell Checker

Servo Tester

PWM,PPM.SBUS Input/output & Receiver
tester

Viable AMP/volt DC Power supply (Required external DC
input)

Functions

Input voltage: 7.0-28V @MAX
12A

Type of battery: Lipo LiHV LiFe Lion
@1-6S

NiMh @1-16S Pb @1-10S

Charge power: 150W @MAX
10A

Discharge power: 150W @MAX 10A Recycle
mode

USB: 2.1A @5.0V or Upgrade

Dimensions: 68*49*26 mm

LCD: 1.8inch TFT RGB, 160*128
Pixel

Weight: 80g

Measurement

PWM: 880-2200us @20-400Hz
PPM: 880-2200us*8CH
@20-50Hz
SBUS: 880-2200us*16CH
@20-100Hz
Voltage: 1.0-5.0V @1-6S
IR: 10-99mR @1-6S
Output
PWM: 500-2500us @20-1000Hz
PPM: 880-2200us*8CH @50Hz

SBUS: 880-2200us*16CH
@74Hz

Power: 1-10A @1-28V
Mode:CC CV

Packing Informations:

Weight：140g

Size：80*80*35mm

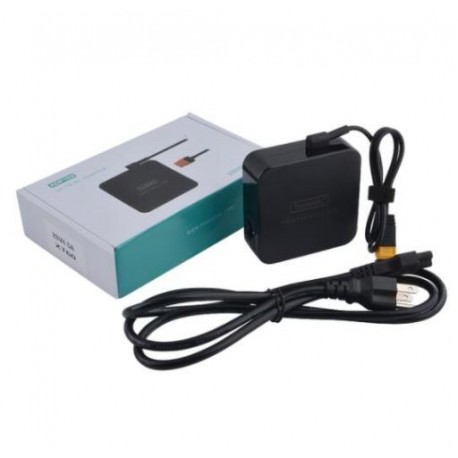

The ToolkitRC ADP100 Compact power supply unit is an
ideal companion for your ToolkitRC M series DC charger. Small and light it can
easily be stored in your backpack or travel bag.
Specs

Model: ADP100
Input AC 100-240v 50-60hz
1.5A
Power: 100w
Output DC: 20V 5A XT60
Main Plug: EU or US (Choose when
ordering)
Features
Safe case design (no bare metal or wire
terminals)
Over Current Protection
Compact and portable
