Szín: RTF verzió - Emax Tinyhawk S II beltéri FPV Racing Drone F4 16000KV Nano2 kamerával és LED támogatással 1/2S

Tinyhawk
II RTF Version comes already bound to your radio and on the right video channel
matched with your goggle. Please
work it with user manual on Page 7  Start FPV Flight to operate it.
We strongly recommend that you fly in an
open place, away from crowds and buildings.
User Manual & QA
EMAX Tinyhawk II 75mm 1-2S Whoop FPV Racing
Drone RTF FrSky D8 Runcam Nano2 Cam 25/100/200mw VTX 5A Blheli_S
ESC
BNF version without goggles and radio control,
Click here.
Specification:
Brand name:
EMAX
Item model: Tinyhawk II
Frame

Wheelbase: 75mm
Dry Weight: 31.2g
All Up Weight: 43.5g with 1x 450mAh
1S battery
Frame Material: Polypropylene
Motors

Stator Size: 0802
Kv: 16000kv
Propeller Mount: Push-On Avan
TH-style
Propeller: Avan Turtlemode 4-Blade
All-In-One (AIO) Flight Controller

Flight Controller: F4 (MATEKF411RX Firmware)
ESC: 4-in-1 5A
BlHeli_S
Receiver: EMAX SPI Receiver (Compatible with FrSky D8
mode)
Battery Connector: JST-PH2.0
Camera and VTX

VTX Power: 25/100/200mw Switchable
Channels: 37CH incl.
Raceband
Camera: RunCam Nano 2 1/3"
700TVL CMOS
Smart Audio Connected
Goggles

EMAX Transporter Goggles Specifications:
Maximum appearance size 140×153×90(mm)
Weight (without battery) 398g
Resolution 480×272
Battery 1 cell 18650 lipo battery
Transmitter

EMAX E6 Transmitter Specifications:
Maximum appearance size 181×213×80(mm)
Weight (without battery) 211g
Number of channels 6 Channels
Transmission frequency 2.4GHz ISM
Band(2400MHz~2483.5MHz)
Output Power 22dbm
Modulation GFSK
Battery 1 cell 18650 lipo
battery

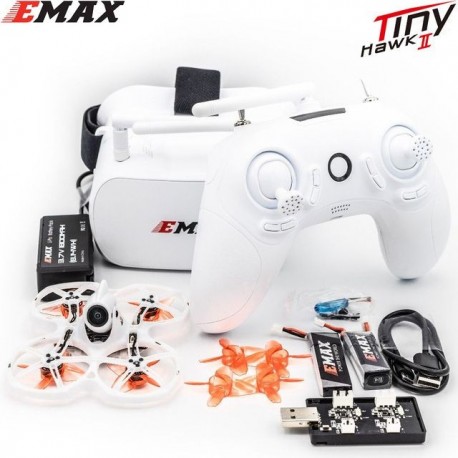

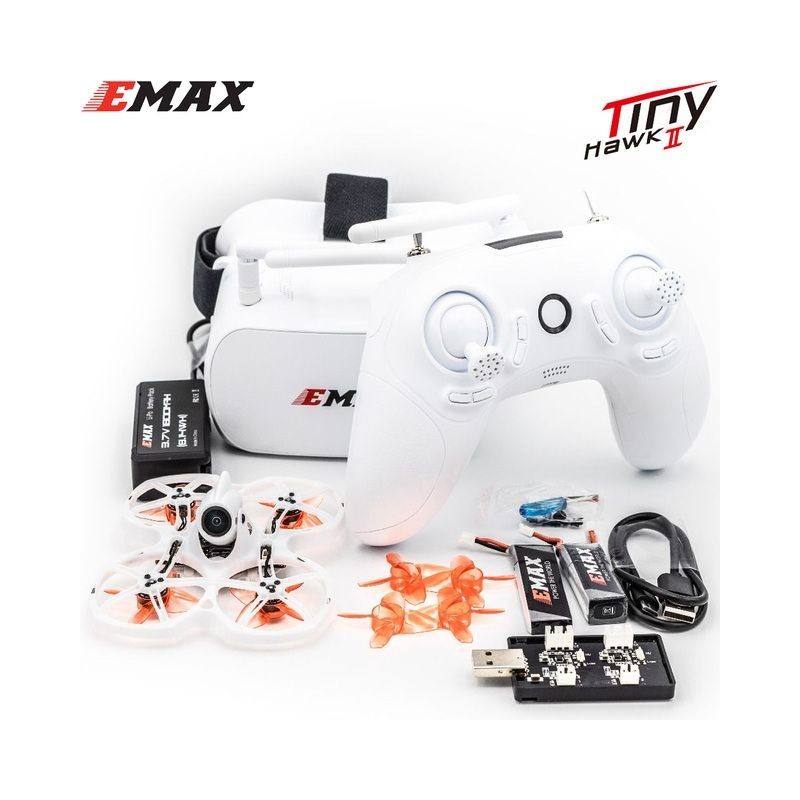

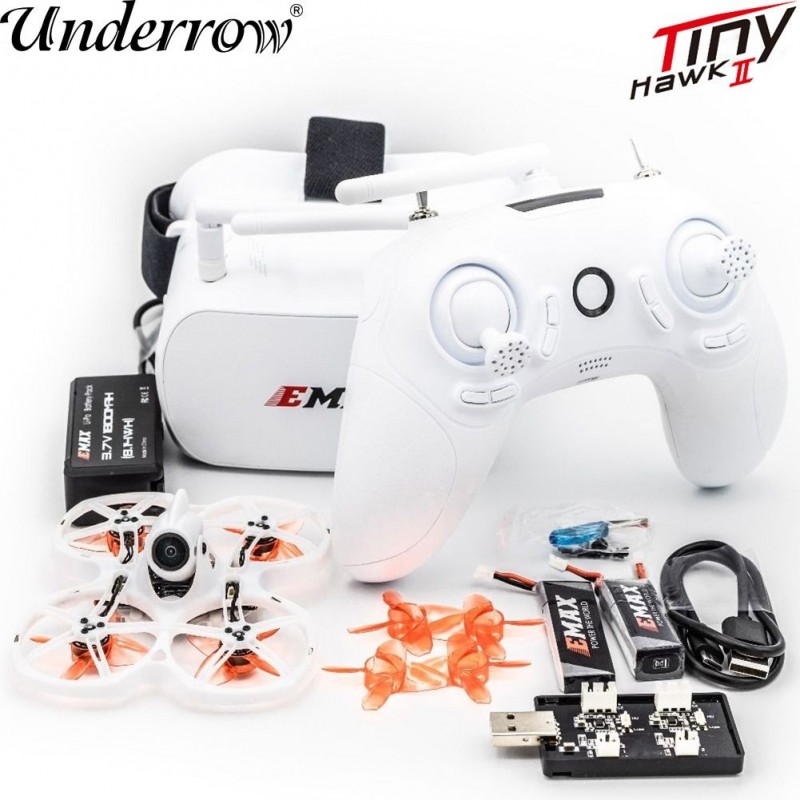

Package
Included:
1x
Tinyhawk II FPV Racing Drone
1x
EMAX Transporter 5.8G FPV Goggles
1x
EMAX Transporter 18650 Goggle Battery Pack w/ USB Charging
1x
EMAX E6 Transmitter
1x
EMAX 450mAh 1S HV Battery
1x
EMAX 300mAh 2S HV Battery
2x
CCW 2x CW Spare Props
1x
1S-2S USB LiPo Charger
1x
Screwdriver Hardware Kit
1x
Micro USB Charging Cable
1x
Faux Carbon Fiber Carrying Case
