Szín: kék - SIM800C Üzenetfejlesztő tábla modul MIicro SIM Flip kártyatartó SMA és Ipxmini interfész Üzenőtábla

A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!
SIM800C Üzenetfejlesztő tábla modul MIicro SIM Flip kártyatartó SMA és Ipxmini interfész Üzenőtábla

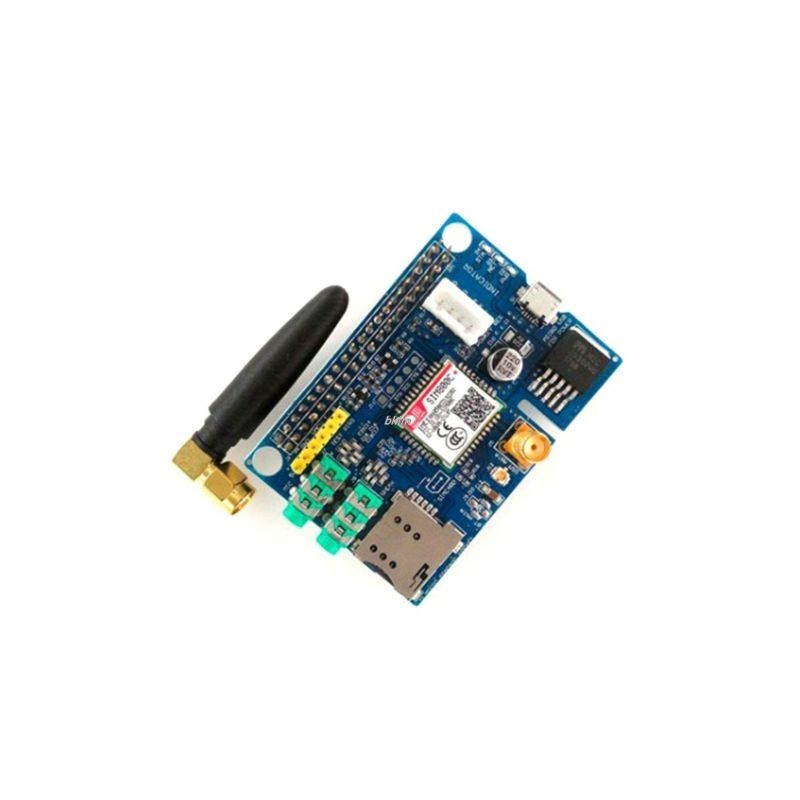

SIM800C Message Development Board Module MIicro SIM Flip Card Holder SMA And Ipxmini Interface Message Board
Features:
1.Support MCU 51, STM32, MSP430, AVR arduin0, raspberry pie and other mainstream controllers.
2.Support SIM card 234g card and IOT network card of China Mobile and China Unicom.
3.Antenna circuit: guaranteed to be short and straight so as to ensure signal strength.
4.PCB display: Each interface is screen printed, which is convenient for secondary development. The design is completely in accordance with the hardware design manual.
5.All the way power supply interface: We have done protection, even if it is reversed, it will not burn the board.
Description:
This product is a short message development board, Initial computer debugging USB power supply can be used.
Specifications:
SIM card: 234g
SIM card holder: MIicro SIM flip card holder
Antenna interface: SMA and ipxmini interface
Voice interface: headphone mic 2 in 1 interface
Communication interface: TTL level serial port
Voltage: 4.8-5.2v (default) and 3.4-4.2v
Current requirement: Reserve 1A

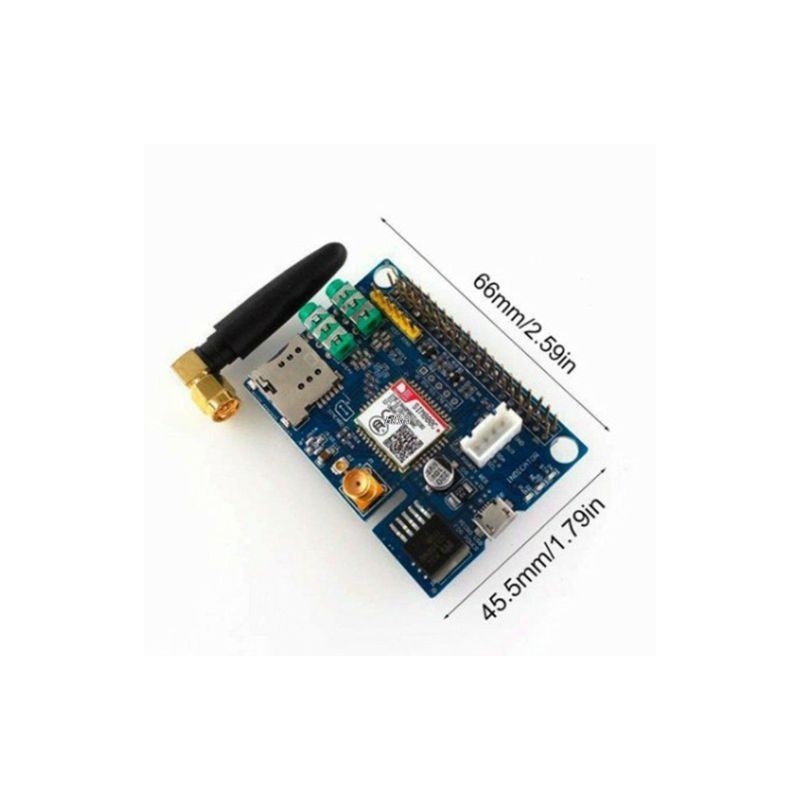

Size: 52 * 40MM
Color:blue
Package Included:
1 * Message development board
Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
