Szín: GR3E - Flysky FS-GR3E FS-GR3F 3 csatornás 2.4G GR3E vevő Failsafe vízálló RC Car Truck Boat GT3B GR3C távadóhoz

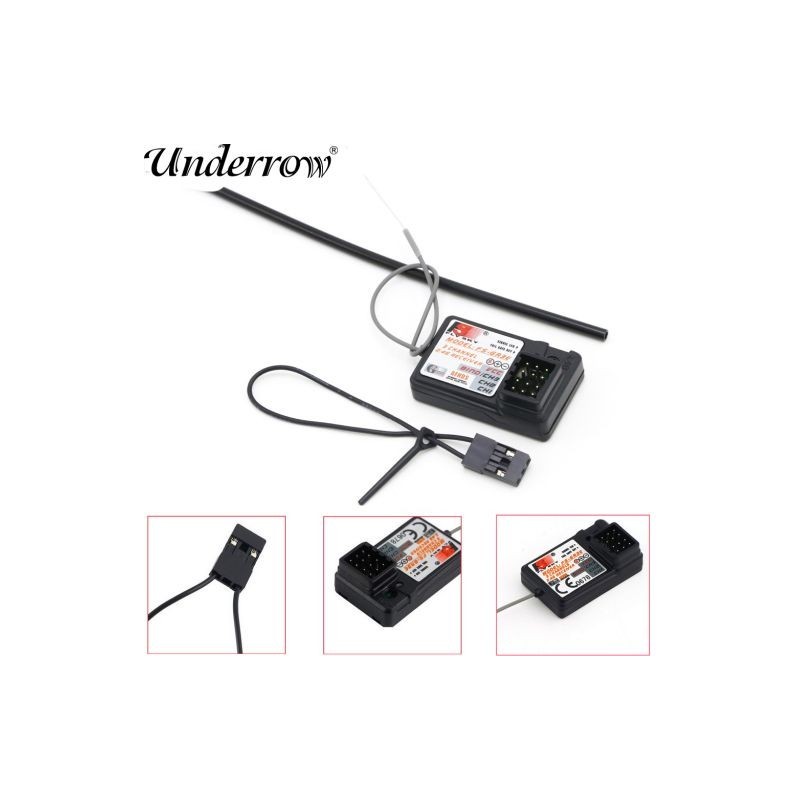

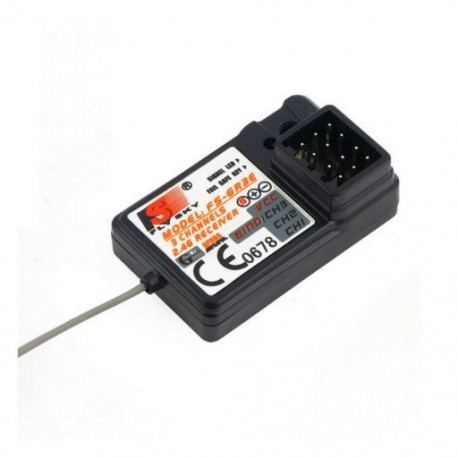

The Standard 2.4Ghz 3-Channel Receiver for RC car and boat .
Compatible
with FS 2.4Ghz Surface Transmitter, very easy to bind.
channels: 3
channels
model type:airplane,glid
modulation:GFSK
code
type:PPM
frequency:2.4G
certificate: CE FCC
power:5V DC(1.5AAA x 4)
(not included)
Specifications:
Original box: NO
size:35.5 x 22 x
13mm
Ant lenght :180mm
Color : Black
Net Weight:2g
Package
weight:8g
Matching(Code)
A. Install the battery to 2.4G transmitter
and shut it down.
B. Insert the matching lines to the channel BIND/CH3 port
of the receiver.
C. Connect the receiver battery to VCC port of the receiver,
on the same time the two LED are
flashing and this means the receiver are
going to the matching status.
D. Press and hold the button on the
transmitter, and then switch on the power supply.
E. Observe the LED on the
receiver, if find that the LED is not flash anymore and that means successful
Matched. (This process about 5s)
F. Release the match button on the
transmitter, take out the match line.
G. Install the server and then
test.
H. If the tests fail, please repeat the action above.
G. If the
tests success, then insert the power supply port into VCC, match
complete.
(The above ways of match is only suitable for FLYSKY 2.4G
products
NOTE:
a.Import duties,taxes and charges are not included in
the item price or shipping charges.These charges are the buyer\'s
responsibility.
b.Please check with your country\'s customs office to
determine what these additional costs will be prior to bidding/buying.
package including:
100% Brand New
1 x 2.4G 3CH RECEIVER
