Szín: ESC és FC - Emax F3 Magnum Mini FPV Stack Tower rendszer repülésvezérlő alkatrészek 4 az 1-ben Esc All in One Micro

Designed for high performance Micro FPV racers, the F3 Magnum Mini packs in a
F3 processor, Betaflight OSD and 12A 4 in 1 ESC that can handle up to 4s
batteries. MPU6000 gyro is a proven performer for stable flight and resistance
to vibration noise.

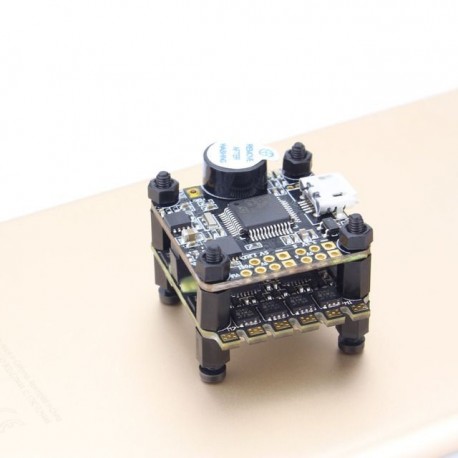

The FC and ESC with neatly stack together with pinned
interconnects that make your build easy to assemble and cleaner looking. This
tightly pre-assembled package will fit any frame that has 20 x 20mm mounting
hole spacing.
The F3 Magnum Mini is the fastest way go from starting a new
micro build to FPV Flight!
4 in 1 Main Board - F3 FC Betaflight OSD
5v Regulator Buzzer
The heart of the flight control systems is a powerful
STM32F303 MCU and MPU6000 gyro flashed with Betaflight for proven rocksteady
flight stability. The integrated 5v/3A voltage regulator means clean power for
all the FC/OSD components and other attached boards such as VTX, RX and FPV
Camera. Betaflight OSD with easily customizable layout of vital flight
information and ability to change FC flight parameters. On board buzzer for
battery level warning or lost model finder functions.

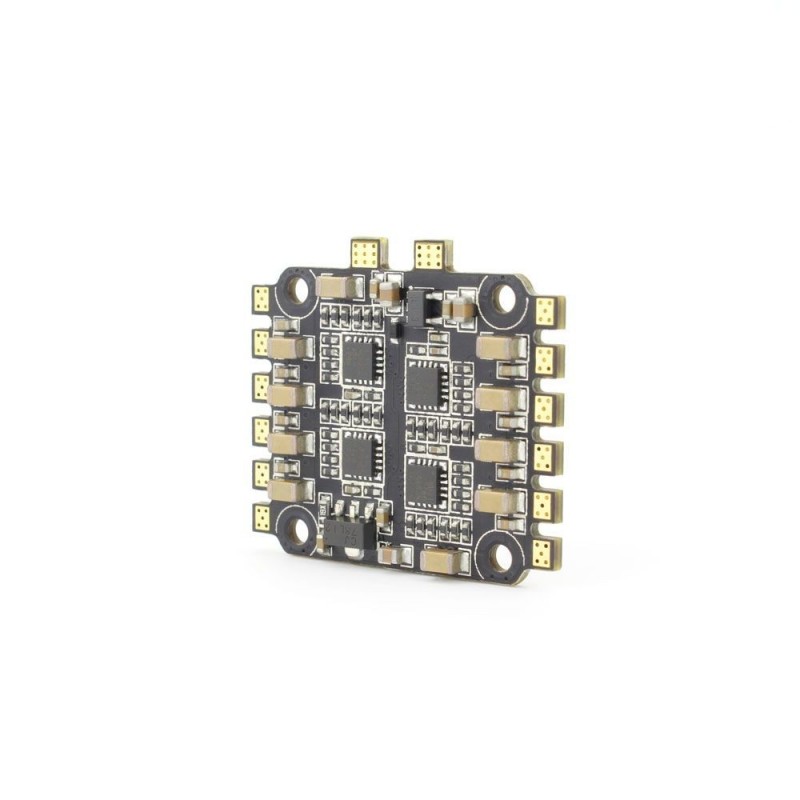

BLheli S 12A - 4
in 1 ESC
The ESC system is comprised of 4 x 12A continuous Bullet ESC's using
top quality MOSFETs and EFM8BB21F16G MCU. Run your choice of protocol: DSHOT,
Multishot, Oneshot 125.
Instruction Manual: CLICK
HERE
Specifications:
4 in 1 Flight Controller Main Board
OMNIBUSF3
Betaflight Target
STM32F303 MCU
MPU6000 accelerometer/gyro (connected via
SPI)
On-board Betaflight OSD
On-board Buzzer
Integrated 5V/3A
BEC
Dedicated PPM/ Sbus receiver input and 3.3V Pad for DSM Sat
RX's
Addressable LED pad
24x24mm board with 20mm mounting holes
4
in 1 ESC and Current Sensor Board
Continuous current 12A and 15A Burst(within
5 seconds)
Supply voltage 2-4S Lipo
EFM8BB21F16G 50mhz MCU
BLHeli-S
firmware supports DSHOT up to 600, MULTISHOT, ONESHOT125
Top quality
MOSFET
3oz high TG PCB board
24x25mm board with 20mm mounting
holes
Included in package:
1pc - F3 Magnum Mini FC OSD Board
1pc
- Magnum 12a 4 in 1 ESC Board
M2 Mounting hardware
Printed
Manual
F3 Magnum Mini Selling Points.
-Stackable F3 Flight controller
ESC tower system for Micro FPV Racer with 20x20mm hole spacing.
-BLheli S
12A 4 in 1 ESC - Oneshot, Multishot & DSHOT - 2-4S battery
ready.
-Betaflight OSD for easy PID running and display of flight
time/voltage.
-Built in Buzzer for lost model finder and low battery
warning.
-2-4s
-12A ESC
-F3
-MPU6000
-Betaflight
OSD
-Beeper
-X20X20 Mounting Size
-reliable
-warrantied
