Szín: 35A ESC - ZTW továbbfejlesztett 32 bites ESC Mantis G2 25A/35A/45A 2-6S 5/6/7.4V SBEC 4A elektronikus

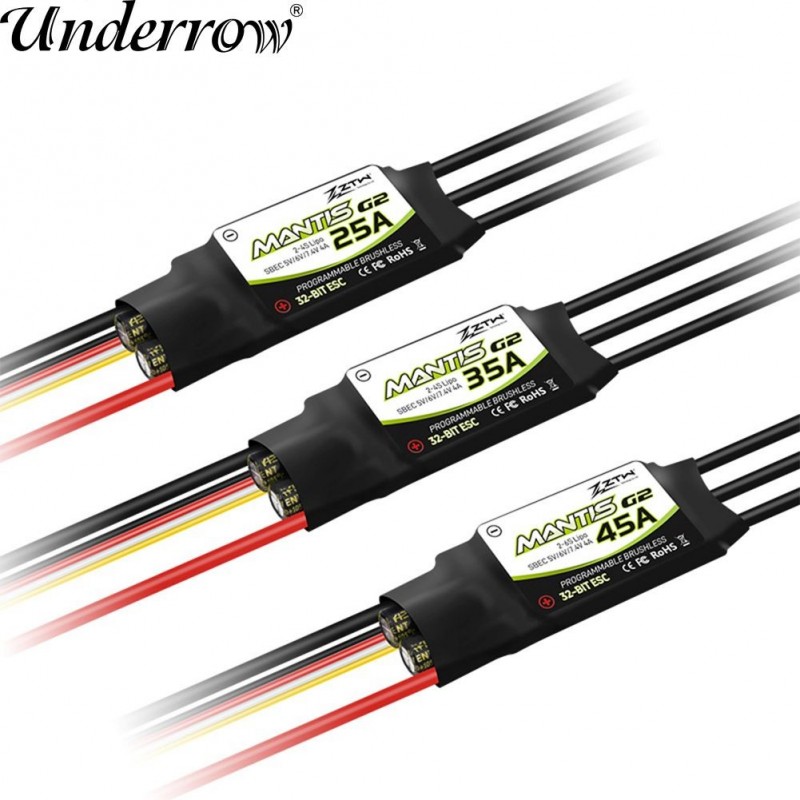

ZTW Upgraded 32-Bit ESC Mantis G2 25A/35A/45A 2-6S With 5/6/7.4V SBEC 4A Electronic
Speed Controller For RC Airplane Fixed-wing
Key Features:
1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
3. Super smooth start-up and accurate throttle linearity.
4. Freewheeling feature makes the ESC with higher driving efficiency and more energy-saving.
5. Two modes: normal and soft acceleration. It is compatible with normal fixed-wing and EDF jet airplanes, please ensure to select the “Soft” acceleration when using EDF jet airplanes.
6. Multiple protections: start-up, over-heat, low-voltage cutoff, over-current and signal loss.
7. Support high RPM motors, and compatible with most motors in the market.
8. Support programming by ZTW LCD program card G2 which is easier to set parameters for the ESC.
Specification:
Model: Mantis 25A G2
Continuous Current: 25A
Burst Current(10S): 35A
Battery NiXX/Lipo: 2-4Lipo/LiHV
BEC Output: 5V/6V/7.4V Adjustable 4A
Size(L*W*H): 68*26*10mm
Weight: 36g
User Program: ZTW LCD Program Card G2 or Transmitter

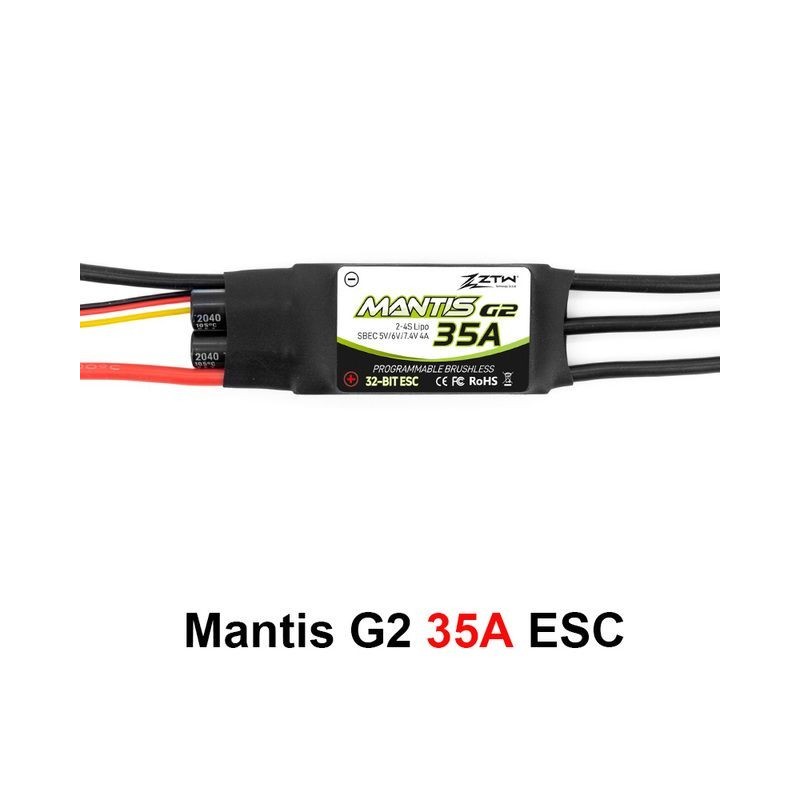

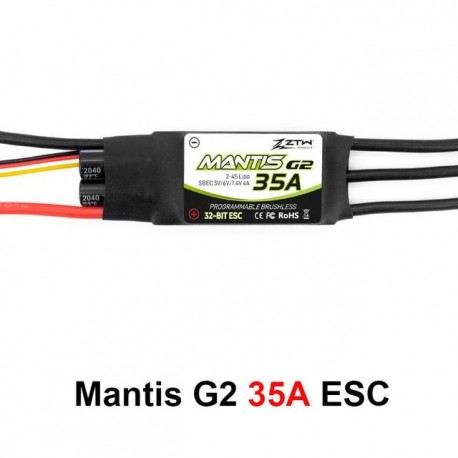

Model: Mantis 35A G2
Continuous Current: 35A
Burst Current(10S): 45A
Battery NiXX/Lipo: 2-4Lipo/LiHV
BEC Output: 5V/6V/7.4V Adjustable 4A
Size(L*W*H): 68*26*10mm
Weight: 39g
User Program: ZTW LCD Program Card G2 or Transmitter

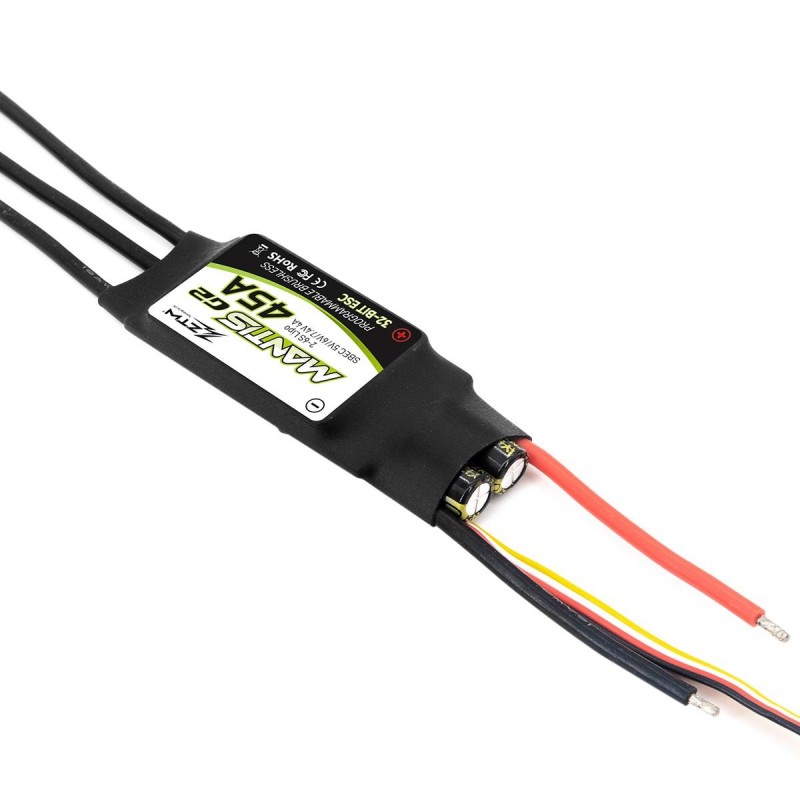

Model: Mantis 45A G2
Continuous Current: 45A
Burst Current(10S): 55A
Battery NiXX/Lipo: 2-6Lipo/LiHV
BEC Output: 5V/6V/7.4V Adjustable 4A
Size(L*W*H): 73*26*10mm
Weight: 43g
User Program: ZTW LCD Program Card G2 & Transmitter
Note: The ZTW Mantis G2 series is a whole new series of 32-bit ESC, it can't work with
ZTW LED programming card, if you want to change parameters for the ESC, you need
to buy the ZTW new LCD program box G2 or using your transmitter, thanks for your
attention.
