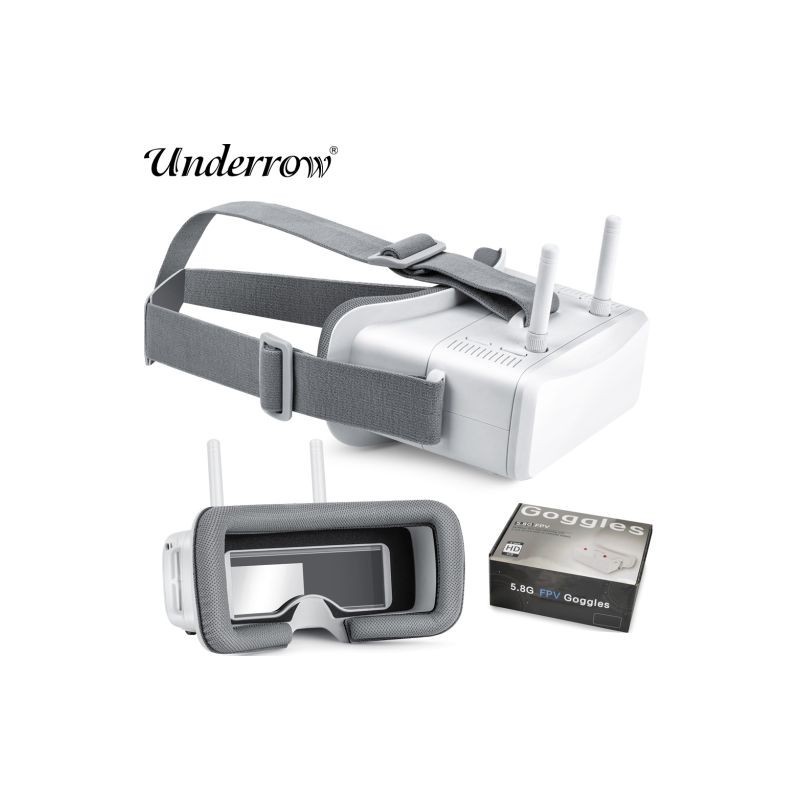

Szín: 1db - VR100 videó szemüveg Fókuszbeállítások FPV szemüveg 5,8G 40 csatornás vevővel 3,0 hüvelykes képernyő a

●
New Refraction light path design;
●Object distance
adjustable, could match Myopia degree（0°-700°）；
●
Low power consumption, working current 350mA；
●
super sensitive 5.8GHz receiver module, strong anti-interference, more
stable
signal；
●
40 CH modules, channels Auto-Searching；
●
3.0 inch 480*320 Screen resolution Highlight IPS screen；
●
Built in 3.7V/1200mAh Lithium battery；
●
TYPE-C charging output；
●
Real-time video return, no time delay；
●
Support Chinese / English menu；
●
Support External video signal input；
●
Support Av signal video output, could connect with the external DVR for
recording；
Specifications:
Item

VR100
Name

5.8G
FPV Goggle
Display

Screen:
3.0 inch IPS Highlight screen
Screen
resolution: 480*320
Ratio:
16:9
View
Angle: 360-degree viewing angle
Backlight
brightness: 500cd/m²
video
delay

Less
than 10 milliseconds
Interface
definition

antenna

SMA
male to RP-SMA female
charging

TYRE-C
port charge battery
headphone

3.5mm
AV port available for video input and output
Language

Chinese
and English
Power
Supply

Power
adapter:  suggest use DC5V/1 or DC/5V2A interface
Capacity:
Built in 3.7V/8\1200mAh lithium polymer battery
Working
power:
*working
current: 350 mA
*one
hour charge fully, can be worked nearly 3 hours
Wireless

Frequency
Table (MHz)

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8
Band
A

5865

5845

5825

5805

5785

5765

5745

5725
Band
B

5733

5752

5771

5790

5809

5828

5847

5866
Band
E

5705

5685

5665

5645

5885

5905

5925

5945
Band
F

5740

5760

5780

5800

5820

5840

5860

5880
Band
R

5658

5695

5732

5769

5806

5843

5880

5917
Appearance

Dimension:
107mm * 150mm * 75mm
Weight:
300g without antenna
