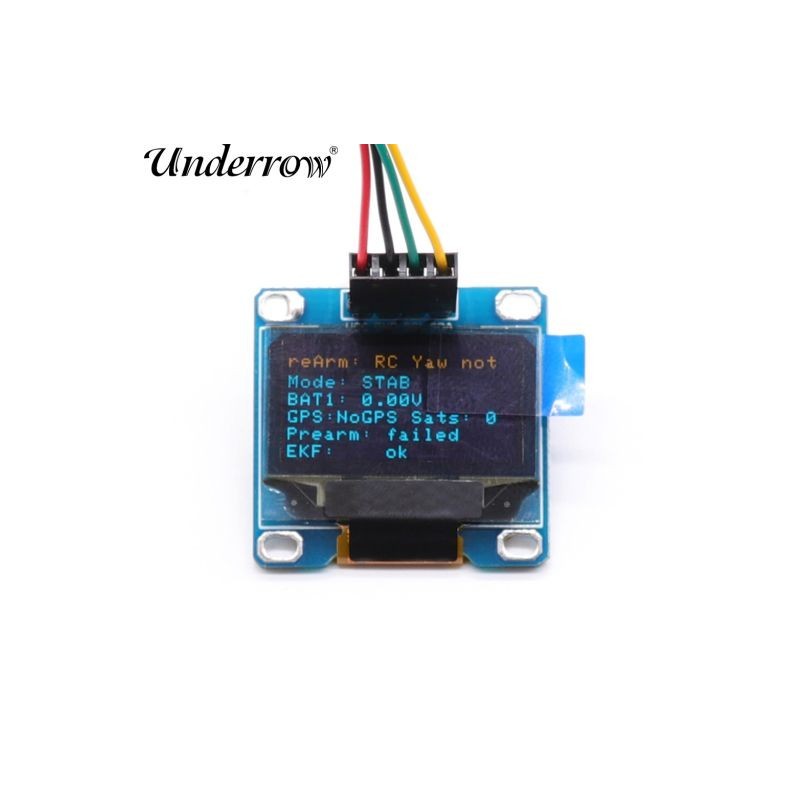

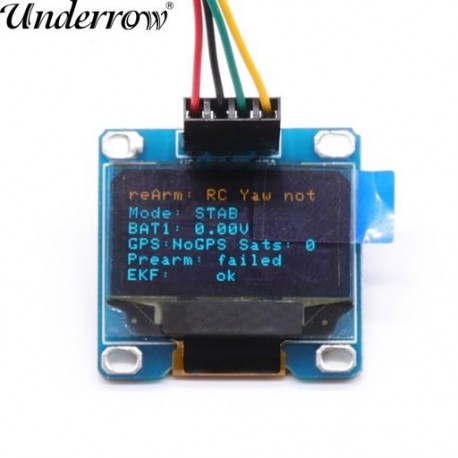

Szín: 1db - Új OSD OLED kijelző a Pixhawk 2.4.8 PIX PX4 repülésvezérléshez Repülési kijelző Repülési állapot

Connect OLED to I2C port of Pixhawk
Upload ardupilot firmware, at least 3.5 version, below 3.5 version will not
be display.
Use Mission Planner to modify parameters NTF_DISPLAY_TYPE to 1. After modify,
remember to click “Write Params” button.
Now the OLED is only supported for ardupilot firmware,can not be supported
PX4 firmware
Use
OLED for PIXHAWK, must follow these steps,
  5.
Reboot the board.

Note:
To upgrade the firmware of the display to 3.5 or more, set NTF_DISPLAY_TYPE to 1
in the Massion Planner and restart Pixhawk.
