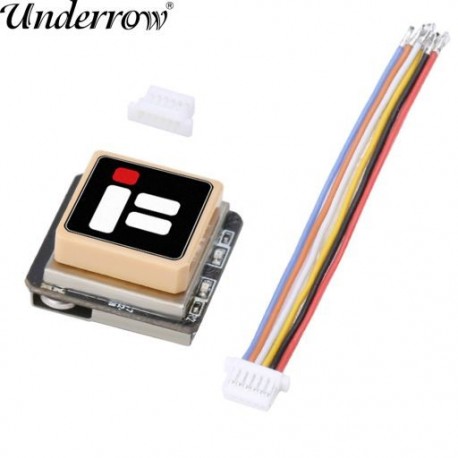

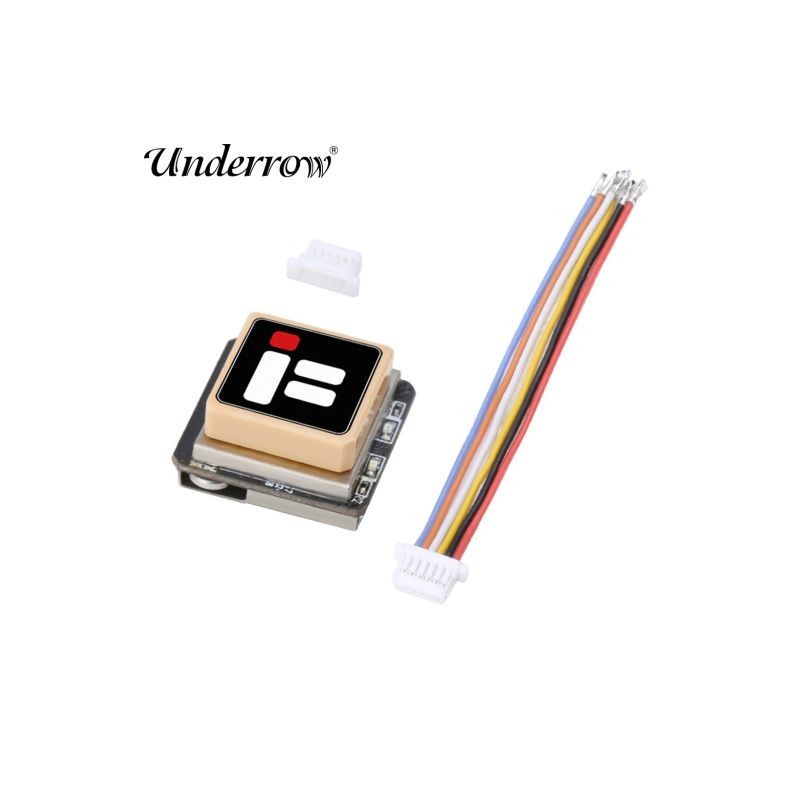

Szín: 1db - iFlight FPV M8Q-5883-GPS Module V2.0 integrált Iránytű modul QMC5883L Beépített TCXO kristály és farad

10
Hz Refresh rate (600 times/second)
Additional
front-end LNA (Low Noise Amplifier)
High
sensitivity 15x15mm GPS patch antenna
Built-in
TCXO crystal and farad capacitor for faster hot start
Compass
module QMC5883L integrated
Specifications:
GPS
module: GPSSAM-M8Q
Frequencies：
72 channel
Compass
module: QMC5883L
Baud
Rate：4800bps-115200bps (Default - 9600bps)
Sensitivity:
Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm
Cold
start：<29s
Hot
start： <2s
Accuracy:
Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30
ns
Maximum
height: 50.000m
Maximum
speed: 500 m/s
Speed
accuracy: 0.05 m/s
Maximum
acceleration: ≦ 4G
Refresh
Rate: 10 Hz
GPS
patch antenna size: 15 x 15 mm
Total
dimensions：20 x 20 x 10.5 mm
Weight:
8g
Input
Voltage： 3.3V-5V，current 25mA
GPS
pin definition: RX/TX UART
Compass
pin definition: SDA/SLA
Package
included:
iFlight
M8Q-5883 GPS *1 pc
SH-1.0-4Pin
silicon wire *1 pc
