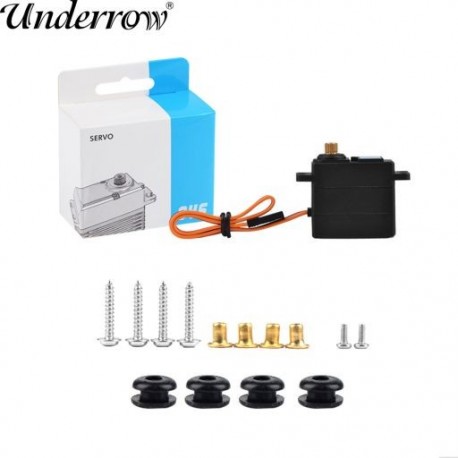

Szín: 1db - 30 kg nagy nyomatékú digitális szervó CYS-S8503 ötvözet középső ház és fém fogaskerék

Mini&Micro Light Plastic Case Analog Servo for Car, Iron Core Motor and Metal Gear for Rc Helicopter
S0270 metal gear analog servo is specially designed for 1:12 RC car. Small
size and light weight is conducive to the driving of RC models. And its high
strength design increase its durability. If you want to get a better RC playing
experience, S0270 servo is a good choice!
Features:
Less
noise
Large stall torgue of 3.5Kg/cm
100% brand new and high
quality
Small size and light weight
High precision metal gear
Suitable
for 1:12 RC car
High strength design increase its
durability
Specifications:
Model: S0270
Operating voltage:
4.8V-6.0V
Operating speed: 0.14s-0.12s/60 degrees
Torque:
3.0kg-3.5kg/cm
Connector wire: About 175mm
Suitable for: RC Drone Boat and
1:12 RC Car
Dimension: 31.2 * 29.5 * 16.3mm
Weight: 27g
Package
information:
Package size: 5.8 * 4.8 * 3.2cm / 2.3 * 1.9 * 1.3in
Package
weight: 35g / 1.3oz
Brand gift box package
Item
NO.

CYS-S0270
Type

Analog
Gear
Type

Metal
Gear
Weight

27g
31.2Size

22.3*16.3*29.5mm
Control
System

( )Pulse
Width Control 1500μsec Neutral
Operating
Voltage

4.8V-6.0V
Operating
Temperature Range

(-)14
to 50 degree C
Operating
Speed @ 6.0V-7.4V

0.13sec/60°
/ 0.11sec/60°
Stall
Torque @ 6.0V -7.4V

3.0kg.cm-3.5kg.cm
Current
Drain (6.0V)

20mA/idle
and 120mA no load operating
Current
Drain (7.4V)

20mA/idle
and 150mA no load operating
Stall
Current

1.1A/1.3A
Dead
Band Width

4usec
Bearing
Type

/
Motor
Type

Iron
Core
Horn
gear spline

21T
Cable/Plug

180mm/JR
Wire
information

Brown(N)
Red (P) Orange(S)
