Szín: 1db - 3-13V – 5-15V feszültségszabályozó NYÁK kártyamodul DC-DC Boost Step Up átalakító kártyamodul lítium

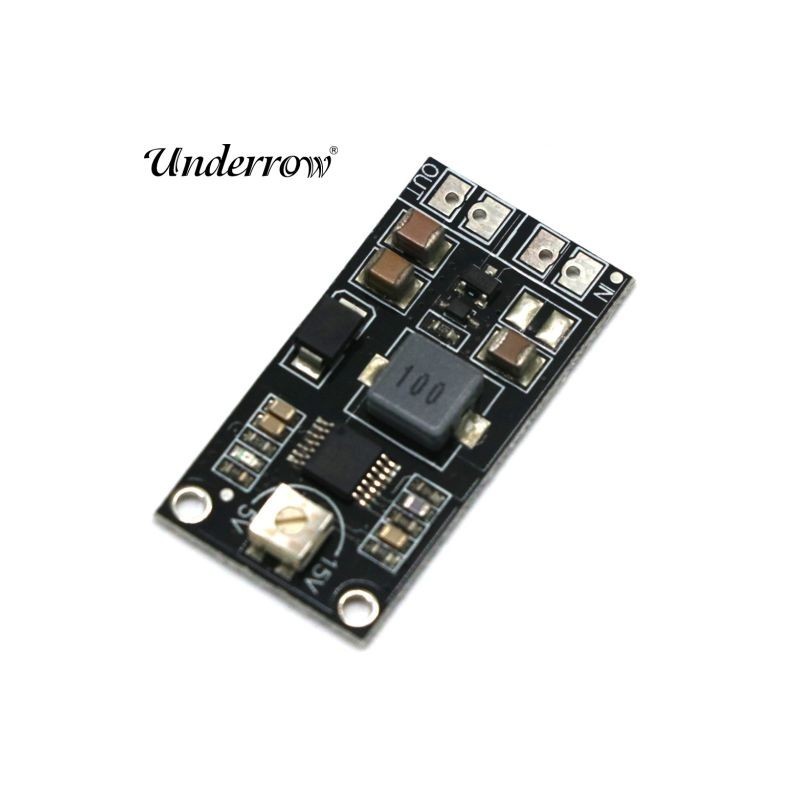

VB5-15 is a booster module, using imported TI high-efficiency DC-DC booster
chip, the output voltage is adjustable from 5-15V, and the maximum output
current can reach 3A. Suitable for a variety of electrical needs on the
model.
American Ti high-efficiency DC-DC boost chip
BOURNS precision potentiometer regulator
One-piece SMD Power Inductor

Input Voltage: 3V - 13V
Output voltage: 5V - 15V adjustable
Output current: refer to the efficiency curve and table, maximum 3A
Static power consumption: <10mA
Output indicator (red)
Input reverse polarity protection, over current protection, over
temperature protection
Typical efficiency: 80% ~95%
Dimensions weight: 37*19*4mm, 3.5g

Boost Module Requirements Input Voltage <= Output Voltage
Example 1: To get a stable 12V output, the input voltage must be
<=12V
Example 2: If the input voltage is 12V, the output voltage adjustable range
is 12~15V
Example 3: 3S LiPo battery as input. If the output voltage is adjusted to
12V and the battery voltage is above 12V, as the battery voltage drops, an
output of 12~12.6V can be obtained; when the battery voltage drops below 12V, a
stable 12V output can be obtained
