Szín: 1db 2306 1700KV - IFlight XING-E Pro 2306 1700KV 6S 2450KV 4S kefe nélküli motor 4 mm-es tengellyel 5-6 hüvelykes

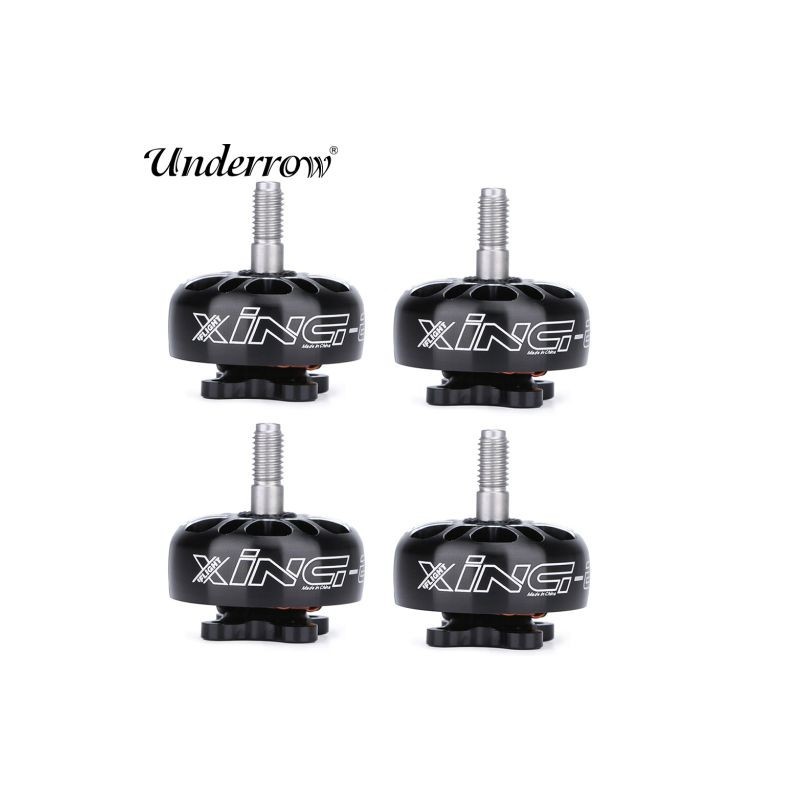

Item: IFlight XING-E Pro 2306
1700KV / 2450KV Brushless Motor
Parameters:
Brand:
iFlight
Model: XING-E Pro 2306
Item Name: Brushless Motor 2306
KV:
1700KV / 2450KV (optional)
Weight:33.8g
Size:29.5*18.7mm
Internal
resistance:
85.63mΩ @ 1700KV
55.6mΩ @ 2450KV
Input
voltage:
25.2V@1700kv
16.8V @ 2450KV
Peak
current:
36.66A@1700kv
43.38A @ 2450KV
Max
watt:
920W@1700kv
712.7W @ 2450KV
Mounting Holes: 16*16 Φ3mm
Rotor
Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding
Length:13.5mm
Lead:160mm/20AWG
Magnet: N52SH curve
Configuration:
12N14P
Bearing Type: NSK
Bearing size: 9x4x4
Winding:Single Strand
Copper Winding
Package included:M3*8mm Screw(4pcs) / M5 Flange
Nut(1pc)
Features:
4mm
high strength steel shaft
N52SH high temperature magnets, NSK
bearings
16x16mm hole pattern
Single strand copper winding
6061 CNC
Machined Aluminum Top and Base
Hex bolt shaft screw
XING-E series are
very strong and powerful FPV motors for FPV racing, a great choice with known
XING performance. It focuses on quality, affordable XING-E Series engines that
are strong and durable.
This 2306 size motor features a heavy duty 4mm
steel hollow shaft, single strand wound for performance, M3 shaft screw and
larger 9x4x4mm NSK bearings.
