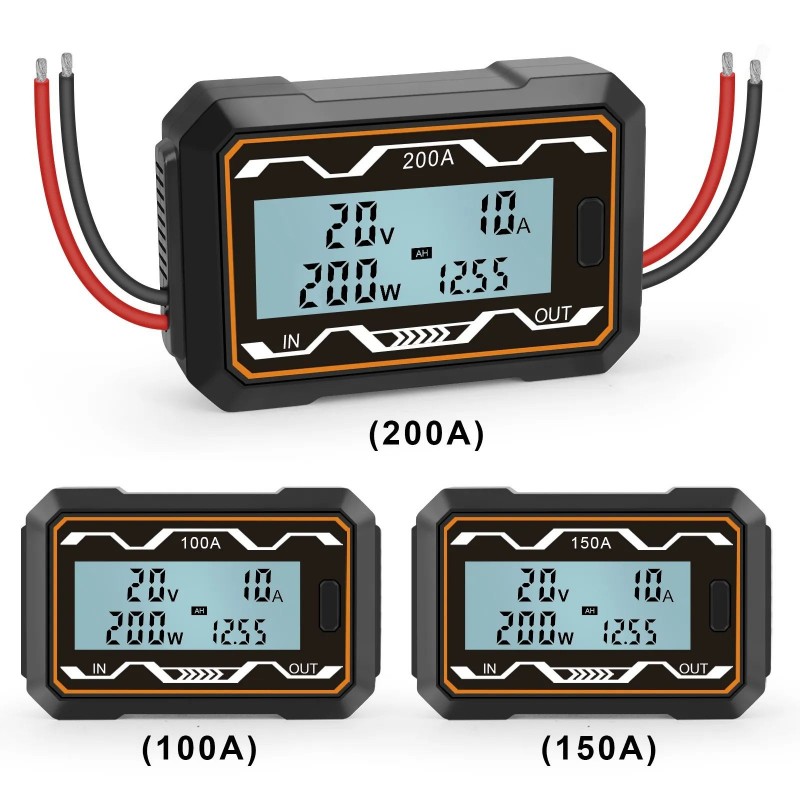

Szín: 100A - Új RC wattmérő 100A 150A 200A RC nagy pontosságú áramerősség-elemző és wattmérő,

SPECIFICATIONS:
Operates from 4.8-60 V
0V with optional auxiliary battery
Measures 0-200 A, resolution 0.01A;
0-60 V, resolution 0.01V;
0-6554 W, resolution 0.1W;
0-65 Ah, resolution 0.001Ah;
0-6554 Wh, resolution 0.01Wh;
Functions “Watt Meter” and Power Analyzer
Measures EIGHT parameters key to electric power safety & performance, Use it to: Prevent peak currents damaging battery. Motor
Control, motors, wiring and connectors. Verify sufficient operating voltage under load. Set cutoff voltages, cheek battery capacity &
health. Balance battery cells. Confirm proper battery charger operation. Detect receivers and actual operating currentso as to make
sure whether an UBEC is needed.
CAUTION:Shouting a rechargeable battery or Wat Meter connected to a rechargeable battery can supply huge currents, causing fire, Explosions, personal injury, And damage to equipment. Ensure that all wiring and connections are rated to handle the input or output Current, and are properly assembled for each application. 1.1 Input Voltage & Current Handing Limitations The Watt Meter is designed to be safe in systems using less than 60 V and carrying currents up to 200A.
CAUTION: Exceeding these Limits will damage the Watt Meter and may cause personal injury
