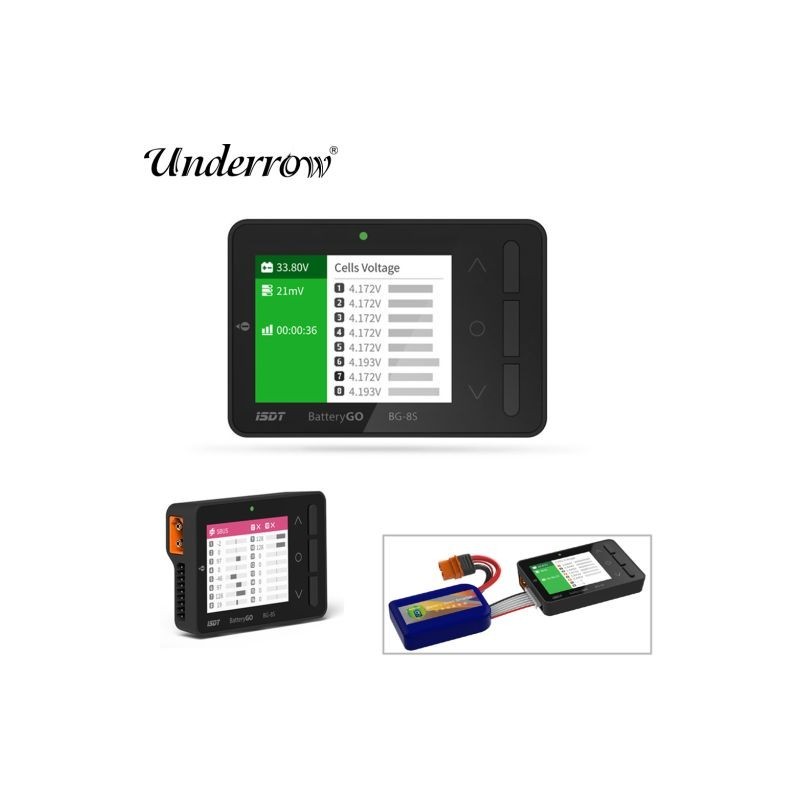

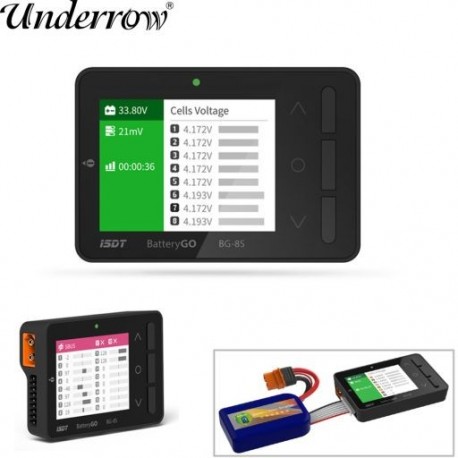

Szín: 1 db - ISDT BattGo BG-8S intelligens akkumulátor-ellenőrző kiegyensúlyozó vevő jeltesztelő gyorstöltés funkció

Working voltage: 5.0V-36V
Input voltage: 0.8V-15V
Input voltage 2-8S:
0.8V-4.8V
Battery cells: 1-8S
Voltage measurement accuracy:
±0.005V4.2V
Balancing cells accurancy: 〈0.005V
Support USB charging: for
qc 2.0/3.0, BC1.2, Maximum output 12V/2A
Suppport smart battery: Charging and
discharging setting,
read battery info and usage history.
Supported
Batt.Type:
LiHv(1-8S)/LiPo(1-8S)/LiFe(1-8S)
Lilon(1-8S)/NiMH/Cd(1-10S)
Display:
2.4//320x240 260,000 color IPS LCD
Dimension: 80 x 55 x 19mm
Weight:
59g
Operating Temperature: 0-40°C
Working Humidity: 10% -90% RH(
noncondensing )
Storage Temperature: -20-60°C
Storage Humidity: 5% -90% RH(
noncondensing )
Smart Battery for checker
260,000 color display
visible under strong sunlight.
Exquisite and powerful BG-8S smart battery for
checker fully support BattGO technology.
Make battery
smarter
Cooperating with BattGO technology, only with XT60i connected and you
can get full knowledge on detail parameters on your batter. Easy to read cells
voltage, battery circulations, working parameters and fast set to your preferred
settings.
Auto balancing cells voltage
Advanced auto balancing
algorithm, make sure every cell is well balanced. After completion auto into low
power mode.
Powerful portable charging function
Connecting to your
battery, BG-8S can become your power bank for mobile devices. Support Qualcom
for qc 2.0/3.0, compatible with BC1.2 and for apple devices. Maximum output
12V/2A.
Receiver signal test and protocol analysis
With standard 3 pin
plug, BG-8S cab detect BEC output voltage. BG-8S also support multiple protocol
analysis including PWM, PPM&S.BUS and etc. With future firmware upgrades
more Protocol analysis will be supported.
Multiple measurement
connections
Support XT60/XT60i, XH2.54 1-8s balance lead, XH2.54 3 pin, JST
ETC to measure voltage. Support LiHv, LiPo, Lilon, LiFe, NiMh/Cd battery and BEC
output measurements.
Support USB upgrade, multilanguage
options
BG-8S has Micro USB port, easily connect to PC to perform
firmware upgrades.
XT60i Meant for BattGo
BG-8S uses XT60i connector
which was jointly developed by ISDT and Amass, support BattGO technology, and
highly compatible with original XT60 plugs.
Package Included:
1x
ISDT BG-8S Smart Battery for checker
