Sinotimer 30A nagy terhelésű, 220 V-os, 7 napos digitális programozható időkapcsoló relé T9U2

Sinotimer 30A High Load 220V 7 Days Digital Programmable Timer Switch Relay T9U2

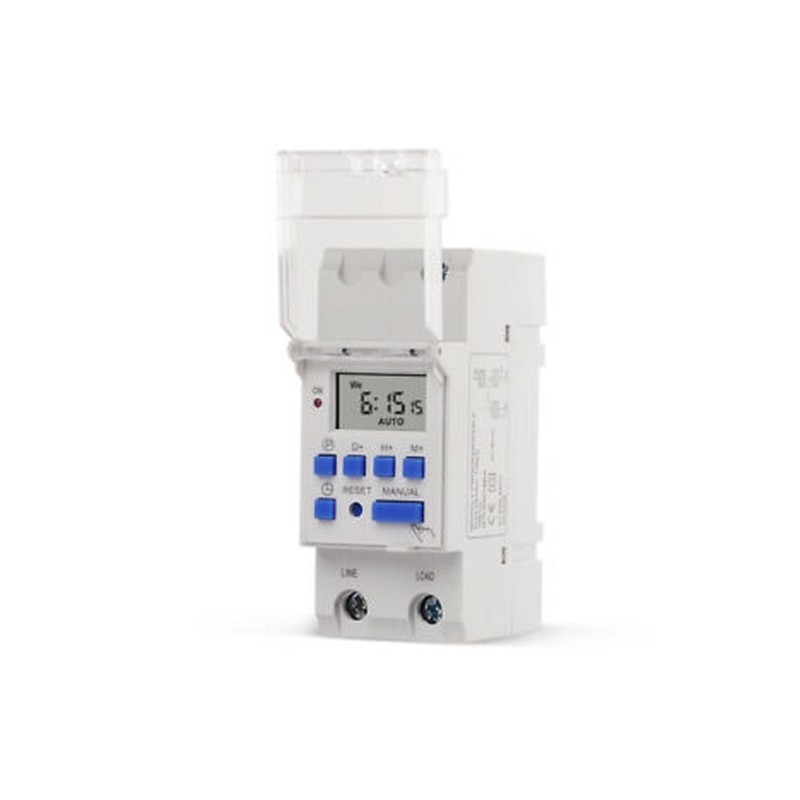

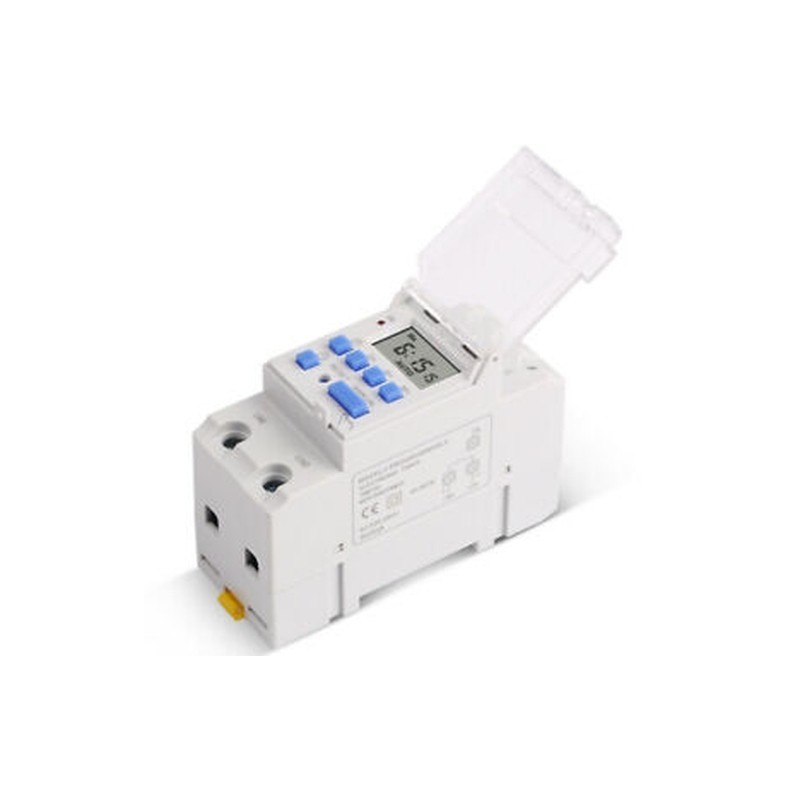

SinoTimer Brand TM615H (30AMP LOAD) DIN rail 7 days 24hrs Programmable switch timer can automatically switch on and switch off various kinds of electric equipment at a preset time. It is widely used in 7 days programmable control of streetlight, neon light (sign), lamp, water heater, air conditioner, billboard, electric cooker, booster, sprayer, bottler, preheater, agriculture facilities and broadcasting equipment etc.
The digital timer switch is within rechargeable battery, in 1.2V/40Ma, to save the programs for power failiure. it has the features of low consumption, high-accuracy CMOS chip, strongly anti-jamming, simple and easy to set
color: White
Material: ABS electronic components
TM615H Characterisitcs:
Ideal for household use in DB Boards
6000 Watt / 30 Amps
24 hours / 7 days a week programmable
Built-in battery for backup the memory when power failure
Auto time error correction /- 30 sec, weekly
Repeat programs with 16 on/off settings, and setting on/off manually
ONE: Simple wiring, no need to ask an Electrical Engineer, you can do it by yourself at home.
TWO: Excellent load capacity, upto 7500Watt, 30AMP@250Vac.
THREE: Easy program, everyone can program it after he reads the manual JUST one time.
Model
TM-615H
Temp.range: -20°C 50°C
Power Supply:220~240V, 50/60Hz
Power consumption 4.5 VA (MAX)
Display: LCD
Switching contact: 1 changeover switch
Programs:16 on/off each day or week
Hysteresis 2 sec/day (25°C)
Mini interval: 1min
Capacity: 30(20) 250V AC
Black-out: 60 days
Timer range: 1min~168hr
Recharge battery: 1.2V 40Ma
Average error: 1s/24h, 25°C
Weight: 0.16kg

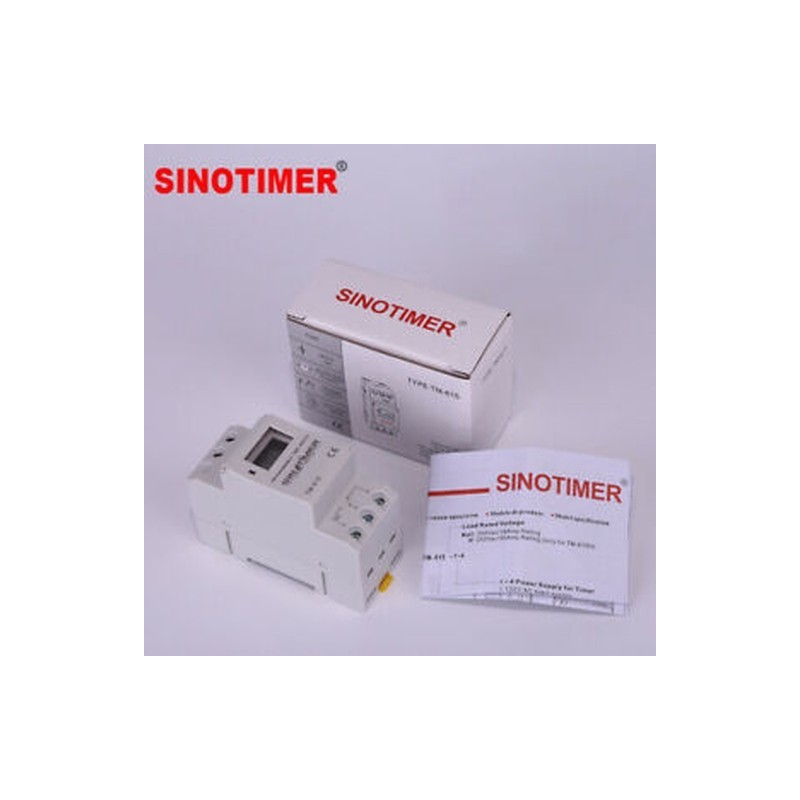

Package Contents:
1* Set open close
1* Instruction manual
