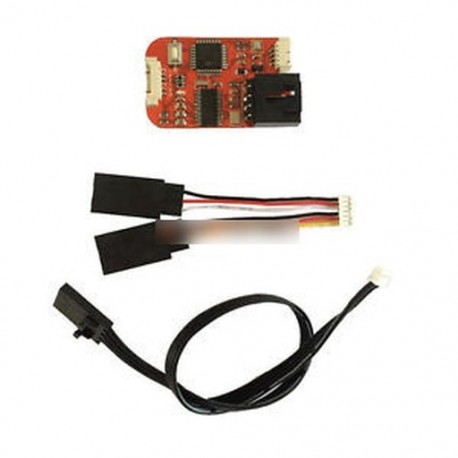

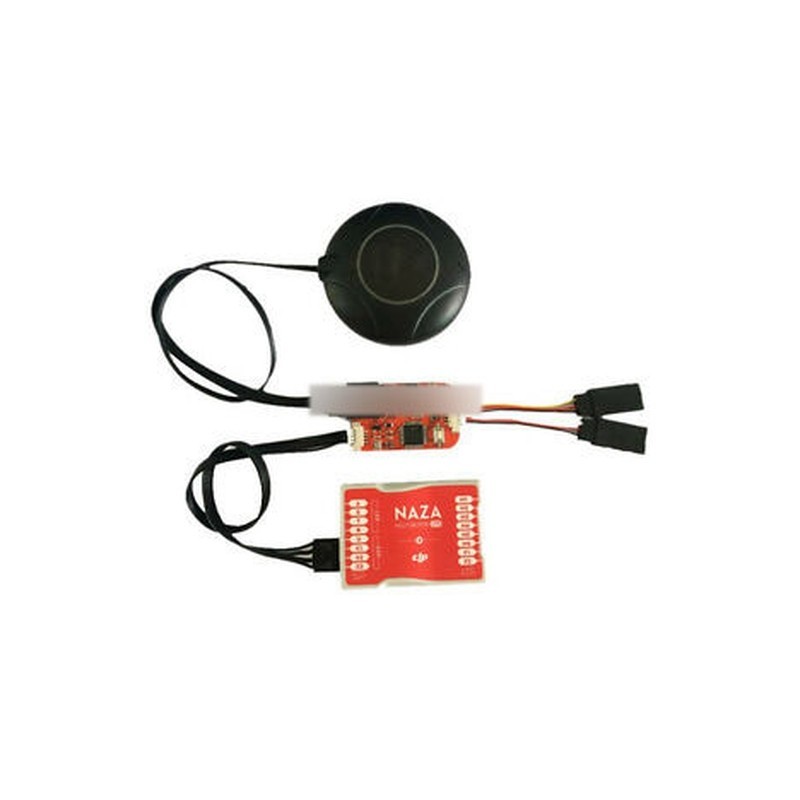

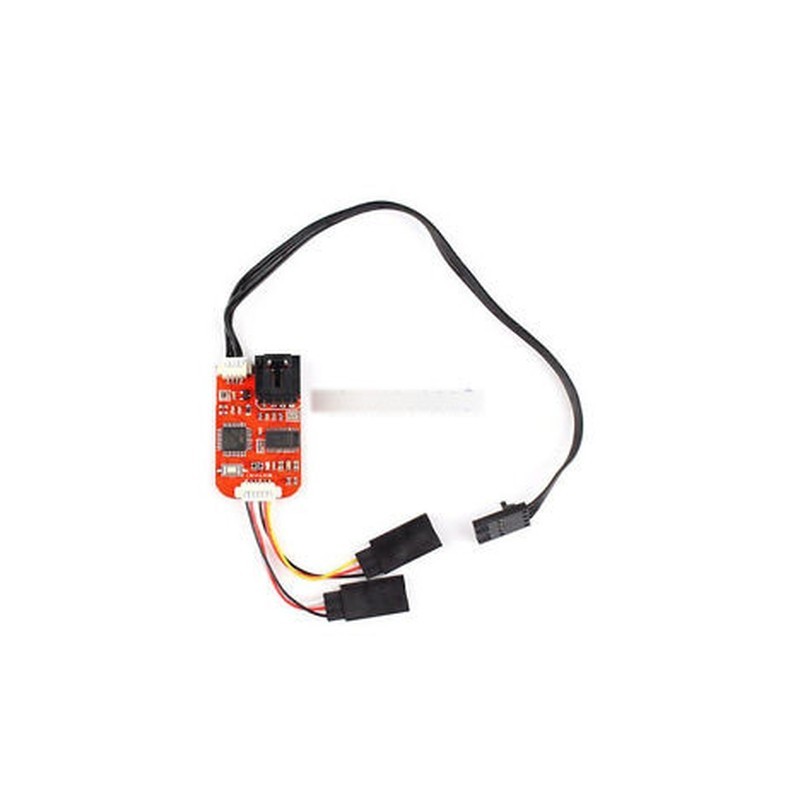

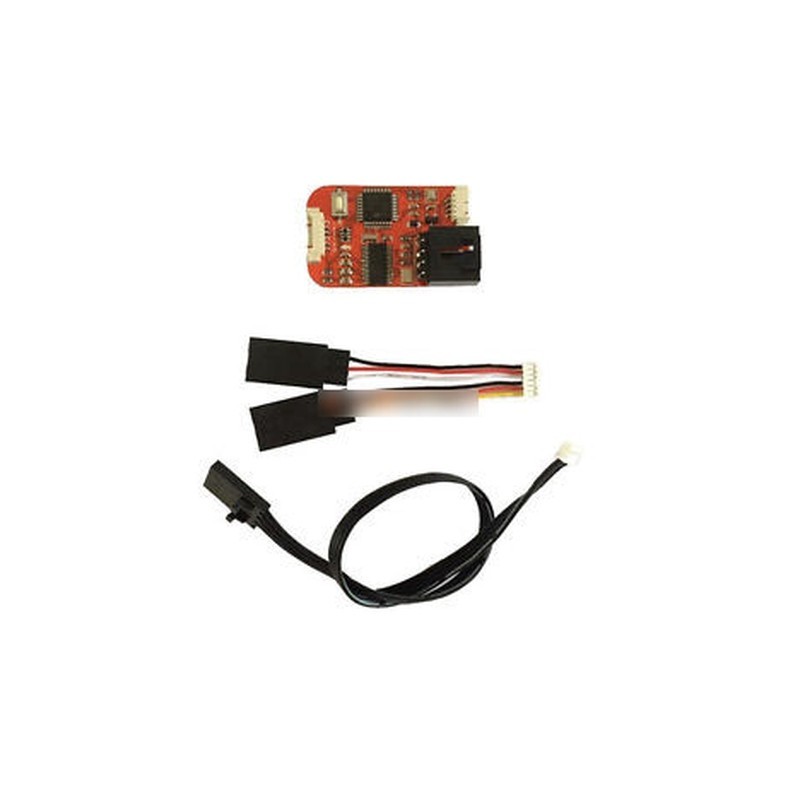

FPV repülésvezérlő N1 OSD modul DJI NAZA V1 V2 NAZA Lite GPS segédprogramhoz

FPV Flight Controller N1 OSD Module For DJI NAZA V1 V2 NAZA Lite GPS Utility
10PCS Double Side Prototype PCB Bread board Tinned Universal FR4 2x8cm - 9x15cmDescriptionGrid : 0.1" (2.54mm)
Thickness : 1.6mm
Hole diameter : 0.9mm
Material : FR-4 (glass fiber)
All holes are plated through
Both sides are identicalSize deatails;Dimension W x L (mm) Dimension W x L (inch) Hole (column x row)
20mm x 80mm 0.8" x 3.2" 6 x 28
30mm x 70mm 1.2" x 2.8" 10 x 24
40mm x 60mm 1.6" x 2.4" 14 x 20
50mm x 70mm 2.0" x 2.8" 18 x 24
60mm x 80mm 2.4" x 3.2" 22 x 27
70mm x 90mm 2.8" x 3.5" 26 x 31
80mm x 120mm 3.2" x 4.7" 30 x 42
90mm x 150mm 3.5" x 5.9" 　　Quantity:10pcsPayment
