600TVL 1/4 1.8mm objektív CMOS 170 fokos széles szögű CCD Mini FPV kamera NTSC

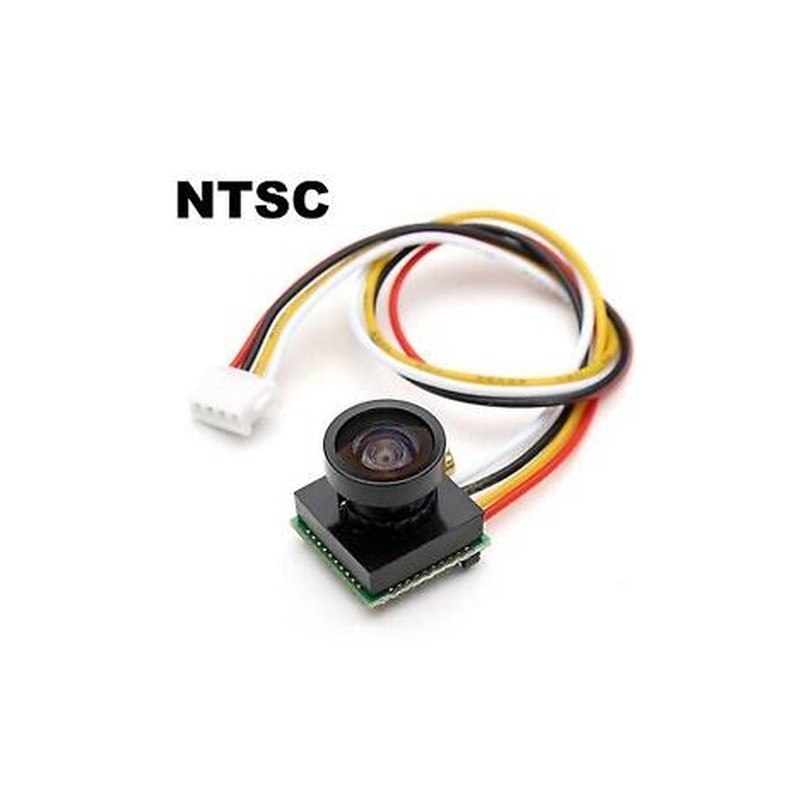

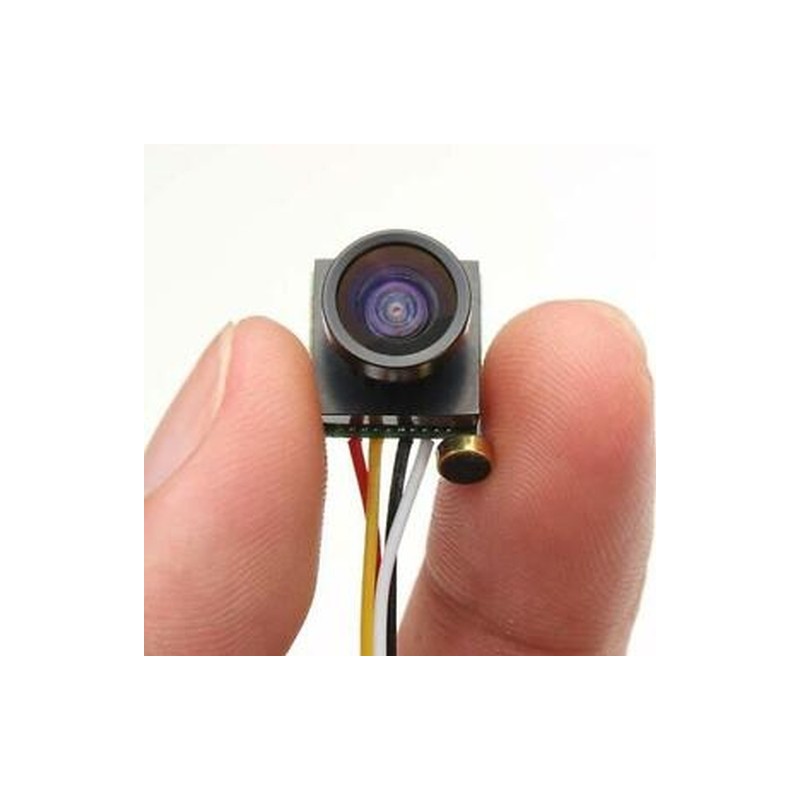

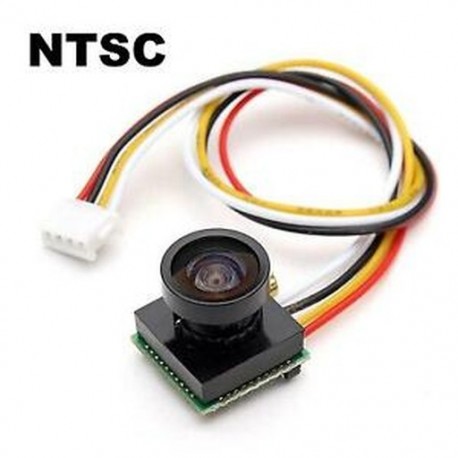

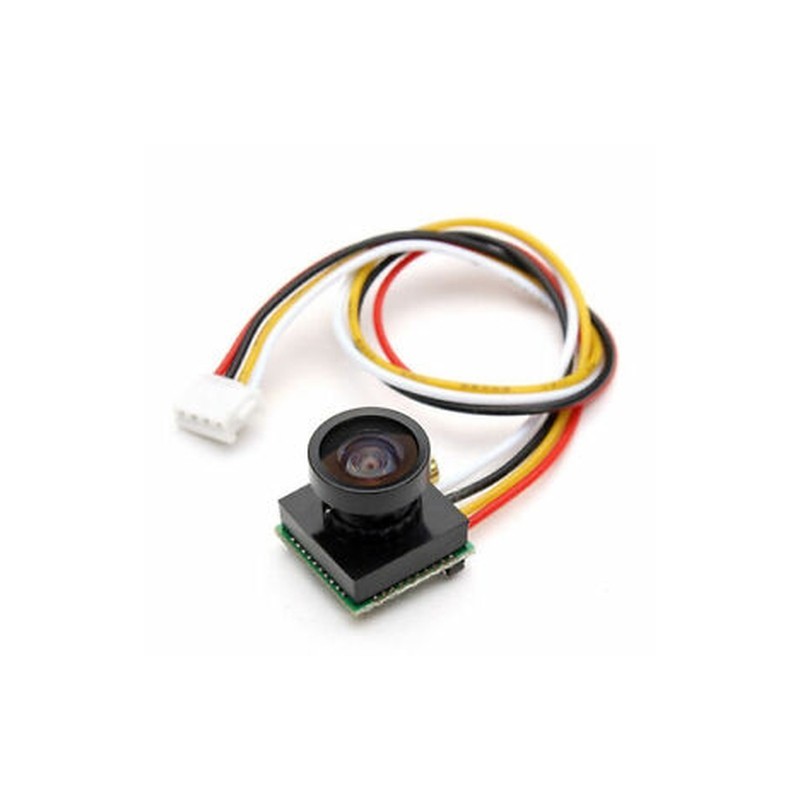

600TVL 1/4 1.8mm Lens CMOS 170 Degree Wide Angle CCD Mini FPV Camera NTSC
Description :- Resolution: 1280 * 960
- Resolution: 600TVL
- Camera Dimensions: 12.5mm * 12.5mm * 17mm
- Illumination: 0.5LUX
- Format: NTSC
- Power supply range: 3.7-5V 100mA
- Audio Lens: Wide-angle 1.8mm (170 degree)
- Image sensor:1/4 CMOS image sensor
- Sensitive area: 3.5964mm x 2.7084mm
- 648 pixels (horizontal) X 488 (vertical) 648 (horizontal) X 488 (vertical)
- Scanning Frequency Horizontal: 15.625KHz
- Vertical: 50Hz
- level: 15.7343KHz
- Vertical: 60Hz
- Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
- SNR ≥48dB (AGC OFF)
- Minimum illumination : 0.1 Lux / F1.2
- Composite video signal :1.0Vp-p 75Ω
- Standard Lens :1.8 mm
- Specifications PCB: 20mm*20mm
- Power: DC5V ± 10% 70mA ± 10%
- Operating temperature :-10 ℃ ~ 60 ℃ RH95% Max
Package Included: 1 x 600TVL W
