5.8 GHz-es lóhere levél FPV gomba antennája SMA / RP-SMA Tx / Rx RC multicopterhez

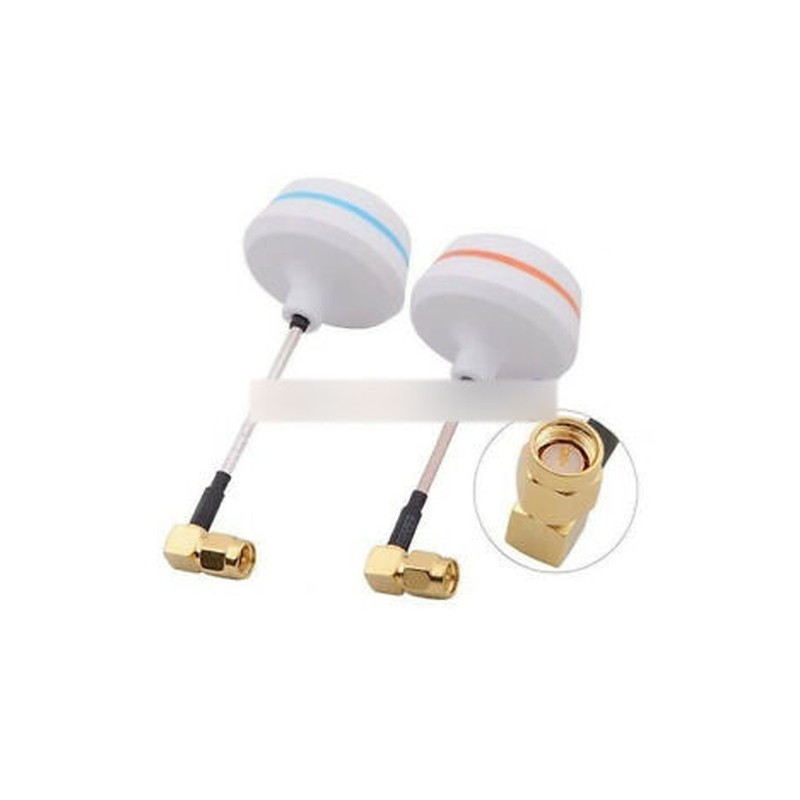

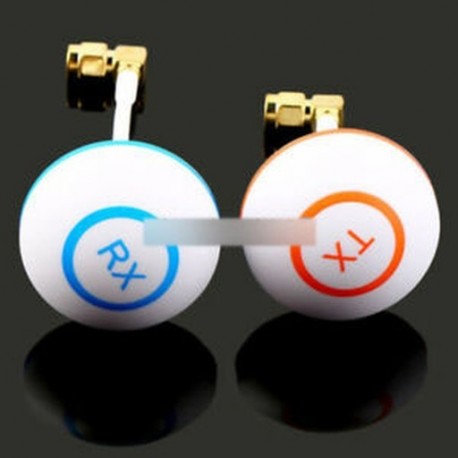

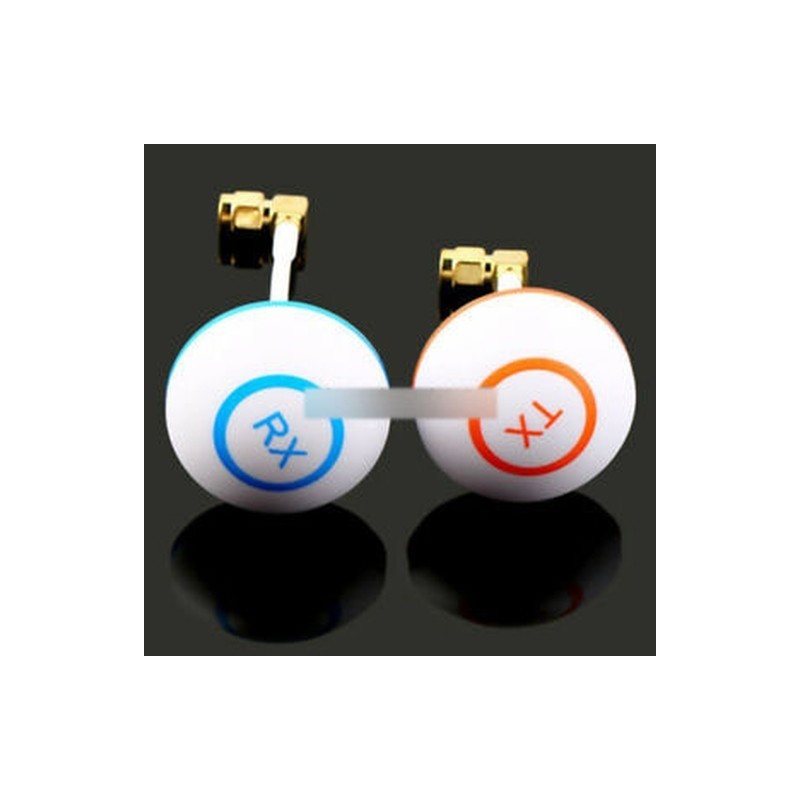

5.8GHz Clover Leaf FPV Mushroom Antenna SMA/RP-SMA Tx/Rx for RC Multicopter
Features:
100% Brand new and high quality
The new 5.8G omni-directional efficient mushroom antennas is through strict debugging, with SWR lower than 1.5, which is perfect match for FPV aerial photography.
Can effectively expand the launch distance and angle
Appling high quality flexible antenna, can bend the antennas at arbitrary angle without deformation
Suitable for: RC helicopterSpecifications:
Gain: 2.0dBi-2.5dBi
Standing-wave ratio (SWR): <1.5
Directivity: Omni-directional
Center frequency: 5.8Ghz
Connector: SMA/RP-SMA (According to your choice)
TX: 70 x 40mm(H x D)
interface: 16 x 8 x 7mm
RX: 90 x 40mm(H x D)
interface: 15 x 10 x 6mm
Package size: 103 * 113 * 40mm
Net weight: 31g（Tx/Rx）
Package weight: 77g

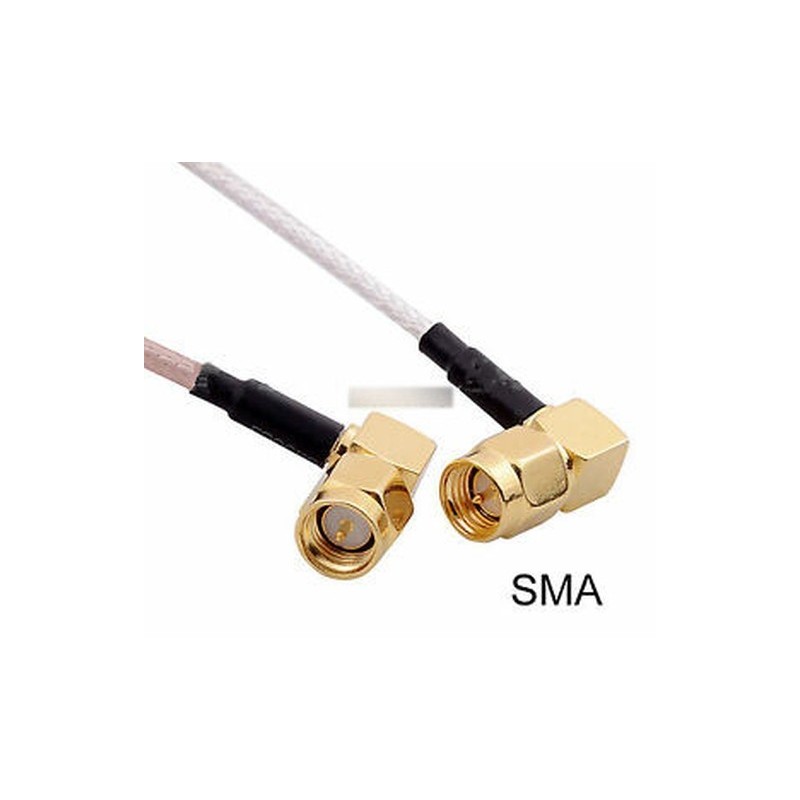

SMA-Right Angled RP-SMA-Right Angled

RP-SMA-Straight SMA-Straight

Package Included:
1 x Transmitting antenna（Tx）
1 x Receiving antenna（Rx） Fatshark Antenna
Features:
SpiroNet 5.8GHz RHCP Antenna
Right-hand circular polarization-Standard SMA male connector (NOT RP-SMA)
Compatible with all FatShark/ImmersionRC 5.8GHz products sold to date.
Precision manufactured with very tight tolerances, *each antenna* is 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance.
Antenna uses a high quality semi-rigid cable, that can be bent to any angle and maintain its shape in any orientation.
The custom radome is RF-transparent, and protects the antenna from the occasional crash, or that oops moment when flying.
Specifications:
Size: 35 x 35 x100mm
Net Weight: 12g
Antenna: 5.8GHz RHCP Antenna For Vehicle
Type: Helicopter
Compatible: Compatible with all FatShark/ImmersionRC 5.8GHz products
Characteristic: Precision manuf
