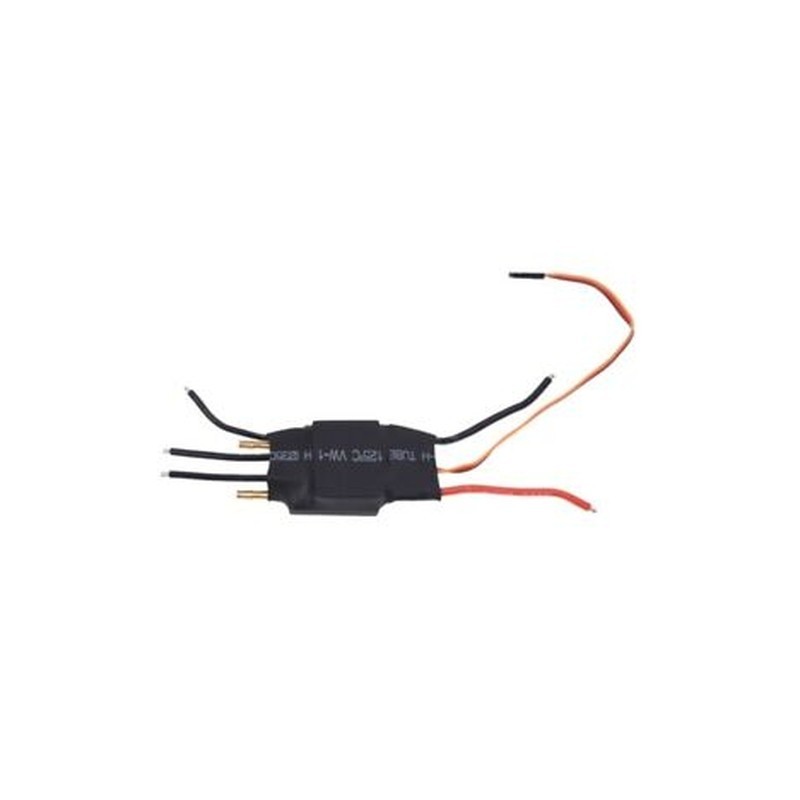

1X(60A Brushless Water Cooling Electric Speed Controller ESC & BEC RC Boat Q5A2

1X(These series of water cooling ESC designed for RC boat. Not only offer excellent performance they are also built with the highest quality components to ensure true-to-rating current handling and high efficiency operation.
Water cooling;Waterproof design (Need to use 704 silicone rubber by yourself).
This super simple boat series comes with a limited range of programming functions and are designed to be plug-n-play.
A perfect ESC for those looking for something simple to use and economic.
ESC size: 73mm x 36mm x 15mm. ESC weight: 52g. Package list: 1 x 60A Brushless Water Cooling Electric Speed Controller ESC
Phrases 1 Enter programming Mode:
Connect your motor and receiver to the speed controller, but do not connect the battery yet.
turn on your transmitter and move the throttle stick to the full throttle position (full up).(please note: most futaba transmitter have the throttle channel reversed by default. )
Connect you battery and controller will initialize with a musical tone.
Phrases 2 programming:
After 3 seconds, the controller will start beeping a sequence of tones a musical tone followed by one or more beeps. Each sequence represents a parameter that you can program and is repeats 3 times.
The parameters are:
Music tone 1 beep: Options 1. Cell type and No. of Cells;
Music tone 2 beep: Options 1. Throttle setting;
Music tone 3 beep: Options 1. Brake setting/Throttle type(for Heli);
Music tone 4 beep: Options 1. Direction and Cutoff Type;
Music tone 5 beep: Options 1. Timing mode;
User programming options:
Cell Type: NiMH/NiCD/Lipoly/Li-ion
Cell Count: 2S-4S/6-18NIMH
Throttle Setting: Auto/Soft/Hard
Brake: No Brake/Soft/Medium/Hard
Direction: Clockwise/Counter Clockwise
Cut off: Soft/Hard
Timing: 1o/7o/15o/30o
PWM: 8Khz/16khz
Cont current: 60A
Burst current: 70A
BEC model: Linear
