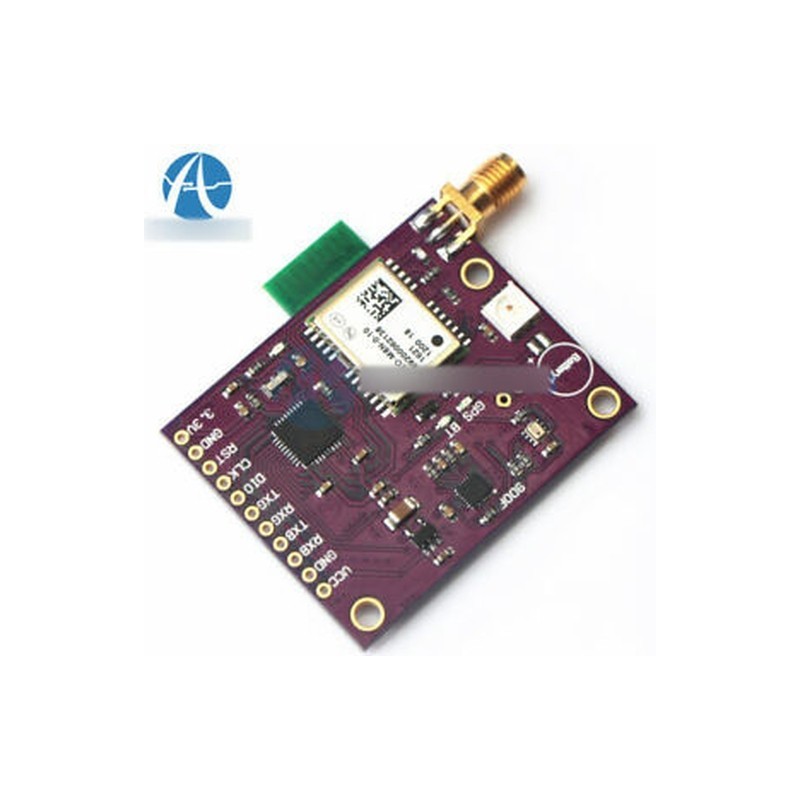

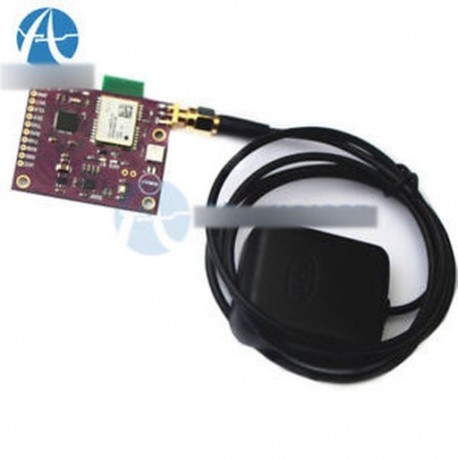

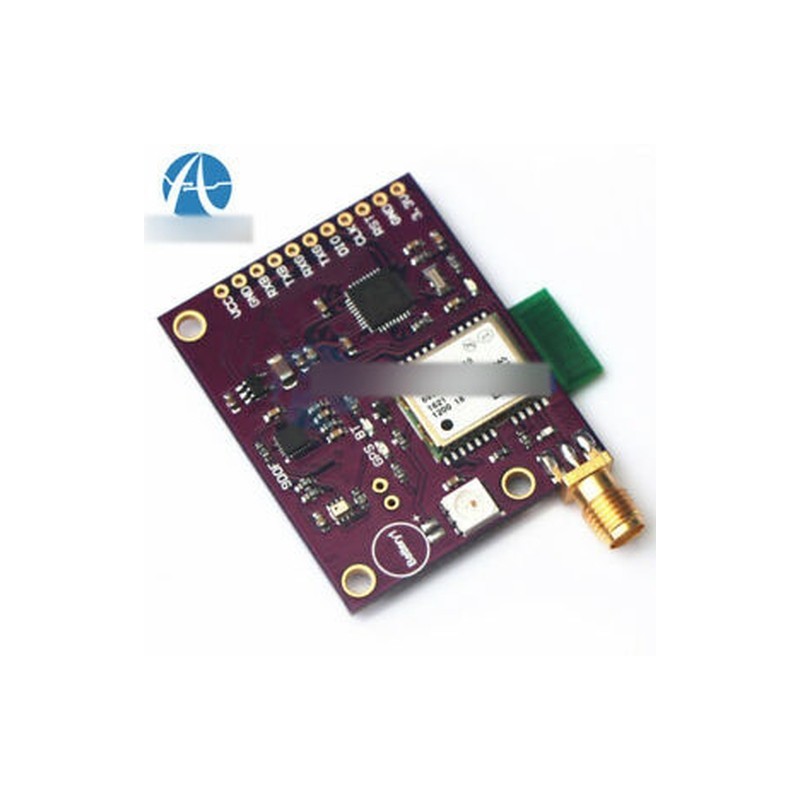

10DOF MPU9250 BMP280 STM32 HC-06 Bluetooth Ublox NEO-M8N iránytű GPS GRB modul

10DOF MPU9250 BMP280 STM32 HC-06 Bluetooth Ublox NEO-M8N Compass GPS GRB ModuleThis product integrated GPS module (M8N), HC_06 Bluetooth module and stm32 microcontroller. NEO_M8N series modules provide high sensitivity and minimum acquisition time, while maintaining low system power, easy RF integration, to provide good performance. You can run GLONASS and Compass, and M8N can be found to more satellites, easy to search to 15 or more, positioning accuracy
Can reach 0.5-1.0 meters. This product on the basis of Bluetooth GPS increased nine-axis attitude sensor and air pressure sensor, and can output attitude angle, pressure and altitude.1. M8N-GPS module
2. STM32T8U6 microcontroller
3. MPU9250 nine-axis sensor
4. WS2812 full-color lights
5. BMP280 pressure sensor
6. Level conversion chip
7. HC_06 Bluetooth module
8. Bluetooth indicator, Bluetooth does not match the case, the indicator light will flash, after pairing, the light will always light
9. GPS signal indicator, when the GPS signal is valid, the signal will flash
10. GPS back-up battery
11. Antenna interface, external GPS antennaPin Description:
VCC: 3.3V-5V
GND: Connect to ground
URX_BT: TX for TX HC_06, RX for MCU
UTX_BT: RX for RX_06, TX for MCU
URX_GPS: GPS TX, MCU RX
UTX_GPS: GPS RX, MCU TX
SWDIO: SW mode data pin of MCU
SWCLK: MCU's SW mode clock pin
NRST: MCU reset pin
Shipping Inclued:

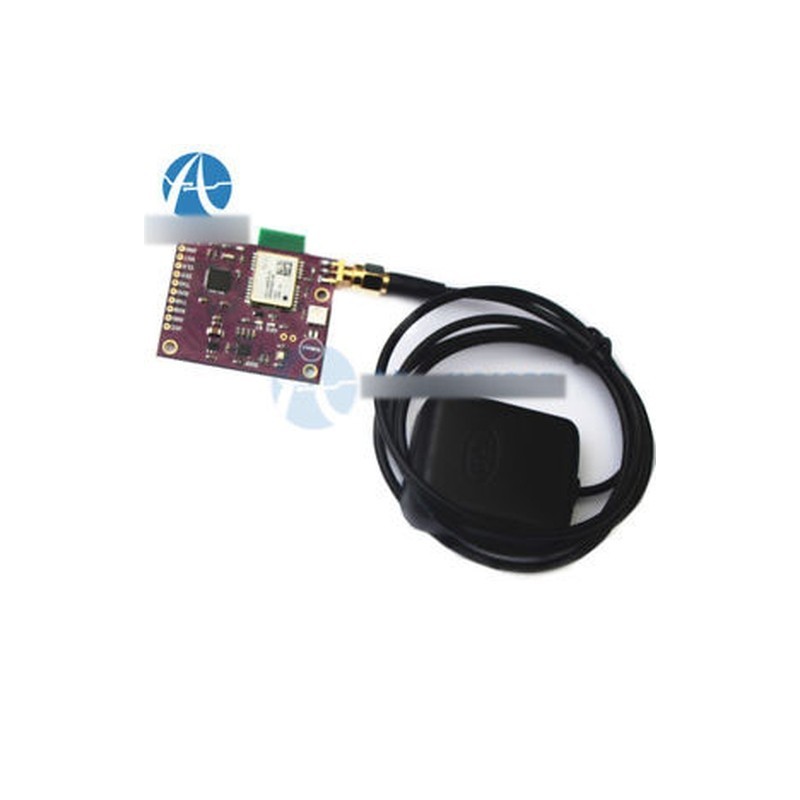

1PCS x 10DOF MPU9250 BMP280 STM32 HC-06 Bluetooth Ublox NEO-M8N Compass GPS GRB Module1PCS x AntennaPayment
