2db 3W 700mA DC-DC 7.0-30V és 1.2-28V LED lámpa Illesztőprogram támogatás PWM Dimmer

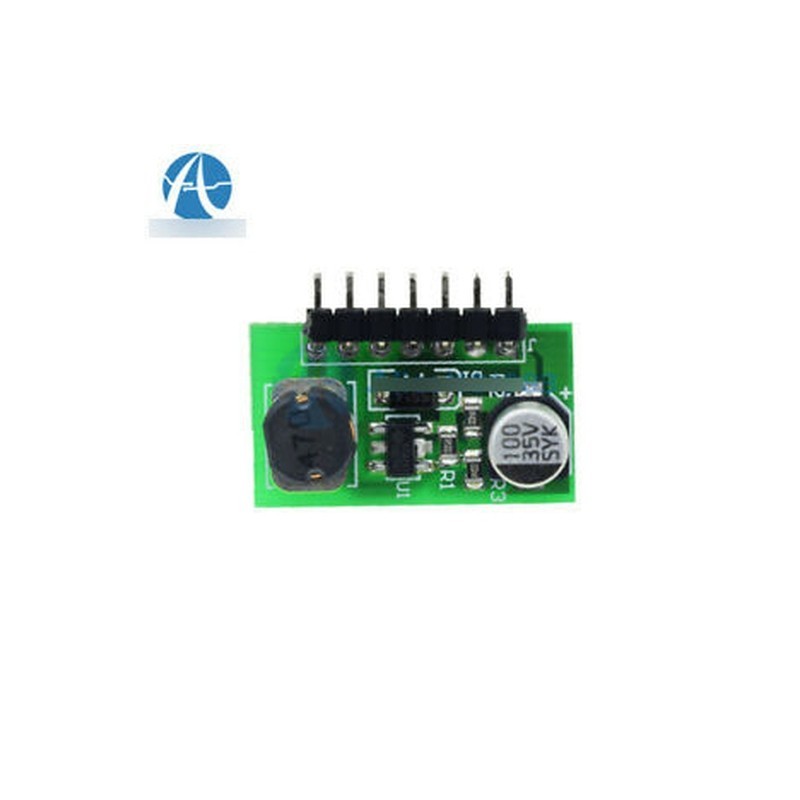

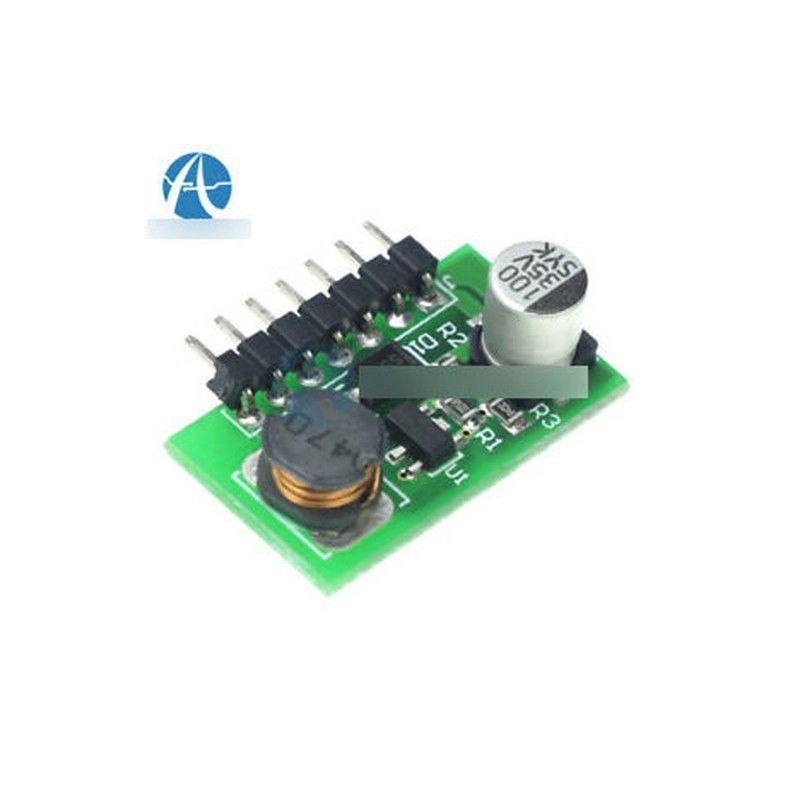

2pcs 3W 700mA DC-DC 7.0-30V to 1.2-28V LED lamp Driver Support PWM DimmerDescription:Input voltage: DC 7-30V
The Recommended Input voltage: DC 24V
Input filter: capacitor
Output Voltage :1.2-28V
Output Current: 700mA
Output current accuracy: -3%
Output current stability: Vin = 24v, Vo = 1.2-22V, -1%
Internal power dissipation: Vin = 24v, 5LEDS maximum 700mW
Temperature Coefficient: Temperature Environmental Protection -40 ° C - 71 ° C, -0.015% / ° C
Full load efficiency: 96%
Ripple and noise (Vp-p): Vin = 24v, 5LEDS, 120Mv
Output short circuit protection: sustainable
Package size: 25 * 15 * 10 (mm) excluding pin
Weight: 4g

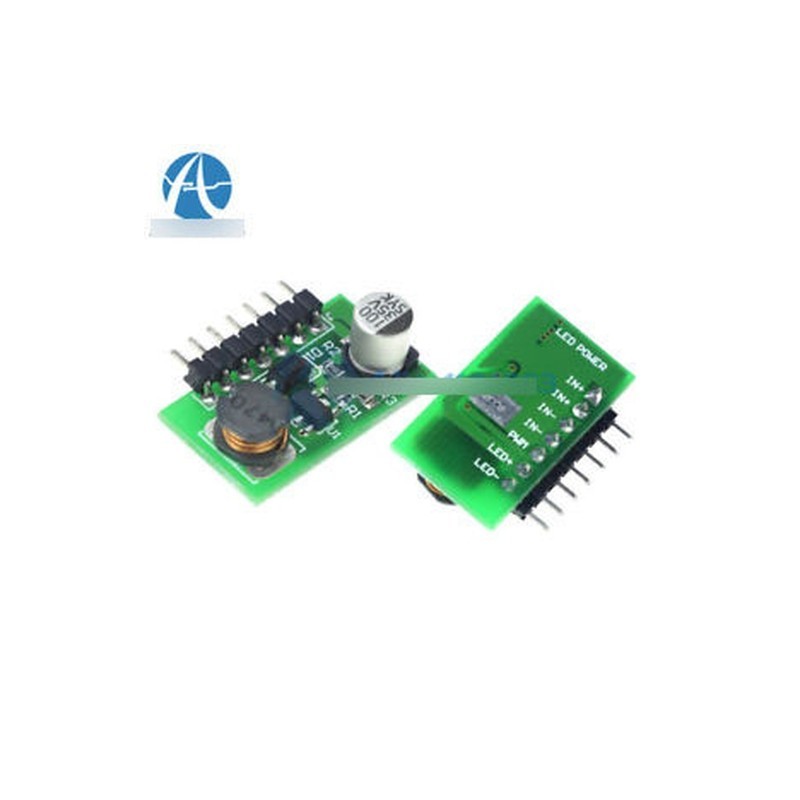

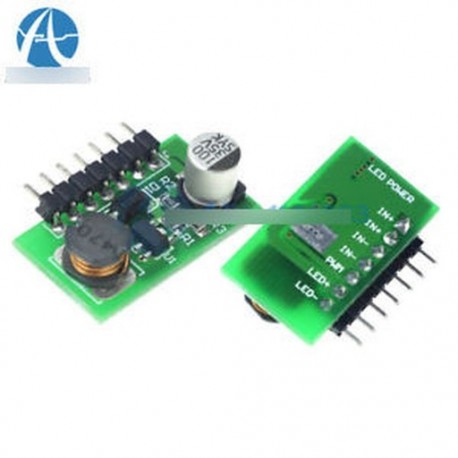

Instructions for use:IN : Power supply positive
IN-: negative power supply.
LED : access the LED anode
LED-: then the LED cathode
PWM: dimming control signal (2.8V-6V open)
Limit frequency of the PWM signal: 20HZ-20KHZ Rated recommends: 1KHZ
Buck operating mode to ensure that the total pressure of the LED below the input supply voltage 2-3V can work.Package Included:2 x 3W 700mA DC-DC 7.0-30V to 1.2-28V LED lamp Driver Support PWM Dimmer
