Mikro-USB-UART TTL modul 6Pin soros átalakító CP2102 STC W4H3

Micro-USB to UART TTL Module 6Pin Serial Converter CP2102 STC W4H3

the original chip CP2102, generate COM port after installing the driverthen the standard input MINI MICRO-USB cable connected to the computer USB interface, with 3.3V and 5V two power outputwith a resettable fuseIn the event of accidental short-circuit can effectively protect your device and computer USB port to downloadon-board status indicators, receiving indicator properly installed drive status indicator remains, send and receive indicator flashes when the communication with run LED indicatorColour: blueMaterial:CCLsupports baud rates from 300bps ~ 1Mbps betweenthe communication format support: 1) data bits 5,6,7,8; 2) support 1.5, 2 stop bits; 3) odd, even, mark, space, none paritysupported operating systems: windows 8.1 / 7 / vista / xp / 98, Mac OS-X ...

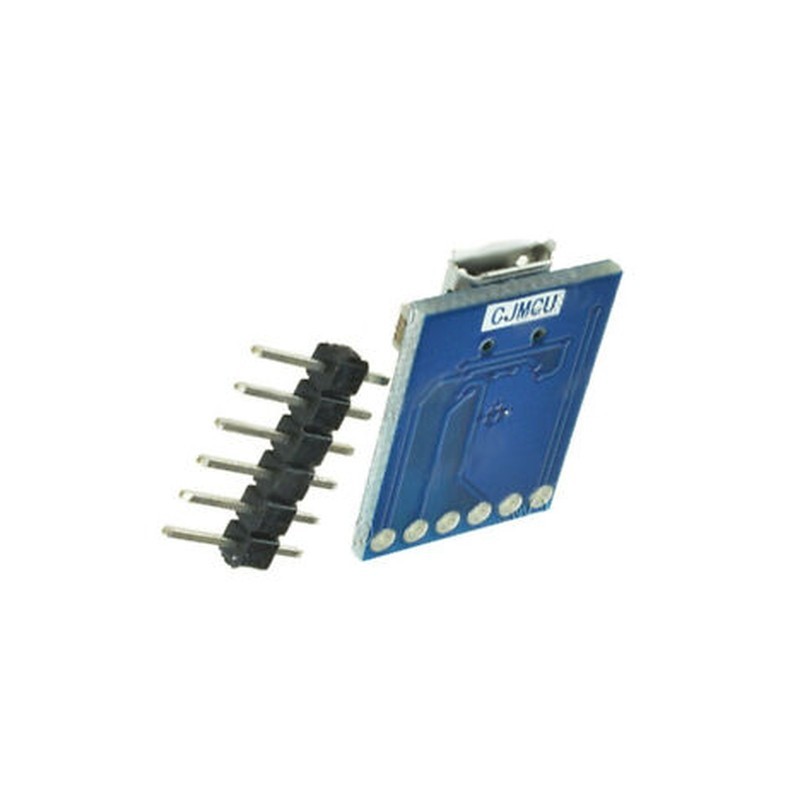

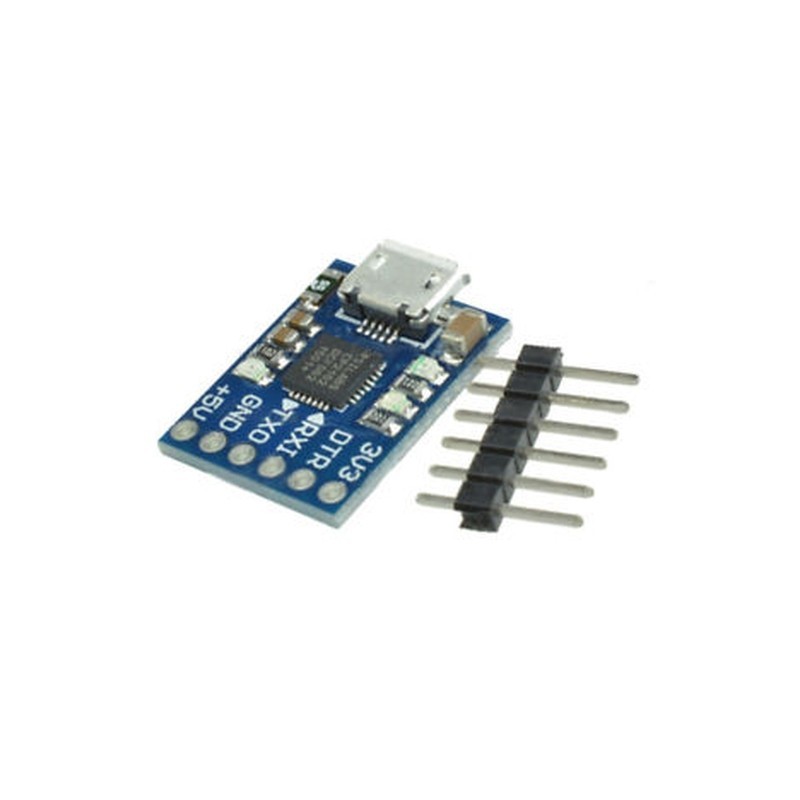

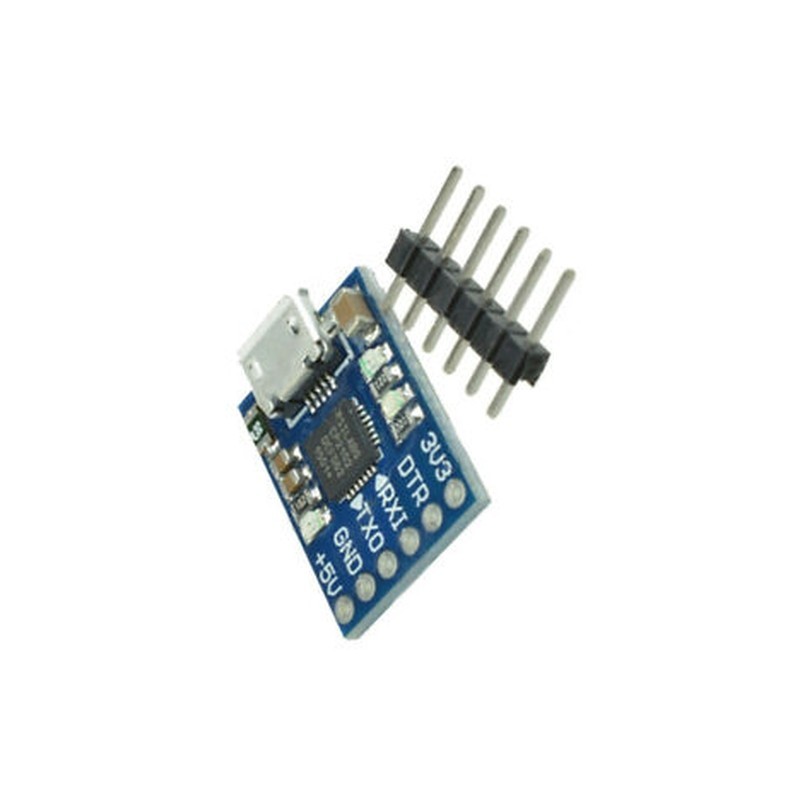

Micro-USB to UART TTL Module 6Pin Serial Converter CP2102 STC
the original chip CP2102, generate COM port after installing the driver
then the standard input MINI MICRO-USB cable connected to the computer USB interface, with 3.3V and 5V two power output
with a resettable fuse
In the event of accidental short-circuit can effectively protect your device and computer USB port to download
on-board status indicators, receiving indicator properly installed drive status indicator remains, send and receive indicator flashes when the communication with run LED indicator
Colour: blue
Material:CCL
supports baud rates from 300bps ~ 1Mbps between
the communication format support: 1) data bits 5,6,7,8; 2) support 1.5, 2 stop bits; 3) odd, even, mark, space, none parity
supported operating systems: windows 8.1 / 7 / vista / xp / 98, Mac OS-X / OS-9, Linux
USB seat MINI MICRO-USB interface Block
chip components for the regular company of welding, stable quality, beautiful appearance
with DTR trigger signal output can be directly arduino pro mini ATMEGA328P and other Arduino board download traffic
module size: 16mm * 20mm super small
embedded USB transceiver, no external circuit device
containing clock circuit, no external circuit device
contains power-on reset circuit
The on-chip voltage regulator within the 3.3V output
Meet the USB2.0 specification requirements
SUSPEND pins support USB suspend state
asynchronous serial data bus compatible with all handshakes and modulation controller interface signals
Support data format is 8 data bits, 1 stop bit and the parity bit
connotation 512 byte receive buffer and 512 byte transmit buffer
Supports hardware or X-ON / X-OFF Handshake
How to install the driver
Package Included:
1PCS x Micro-USB to UART TTL Module 6Pin Serial Converter CP2102 STC Replace FT232
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
