MAX6675 modul K típusú hőelem hőérzékelő az Arduino AL X5A5-hez

MAX6675 Module K Type Thermocouple Temperature Sensor for Arduino AL X5A5

Working voltage: DC5V
Operating Current: 50mA
The temperature measuring range: -200 Celsius - 1300 Celsius [Test procedure for 0-1023 Celsius ]
The temperature measurement accuracy: /- 1.5 Celsius
The temperature resolution: 0.25 Celsius
The output mode: SPI digital signal
With a fixed mounting holes for easy fixed installation.
Storage temperature: -50 ~ 150 Celsius
The module weight: 4g
Module size: 25mm x 15mm x 13mm
Material:CCL
Colour:Blue

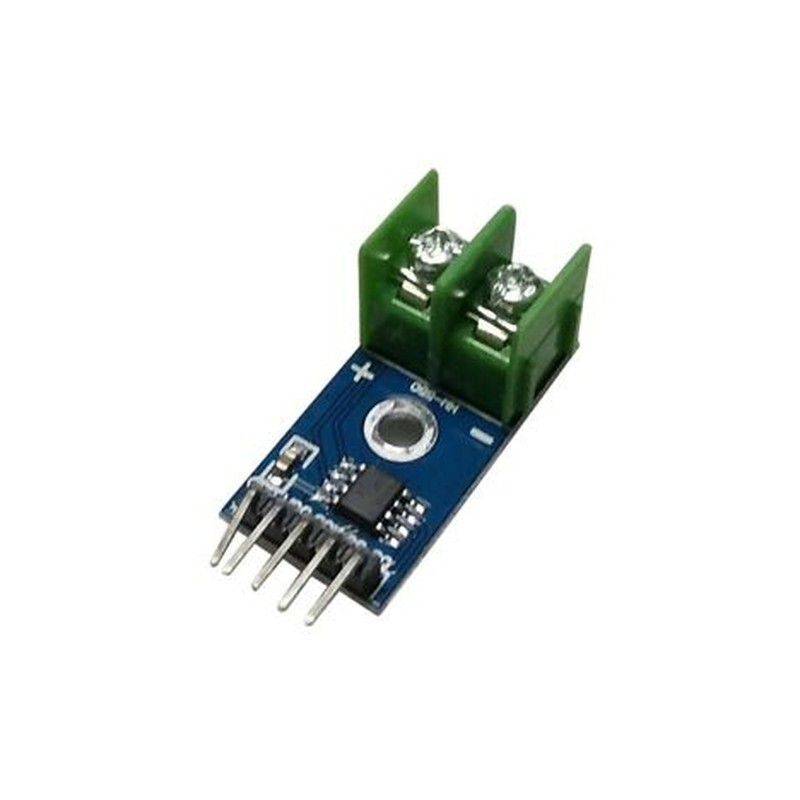

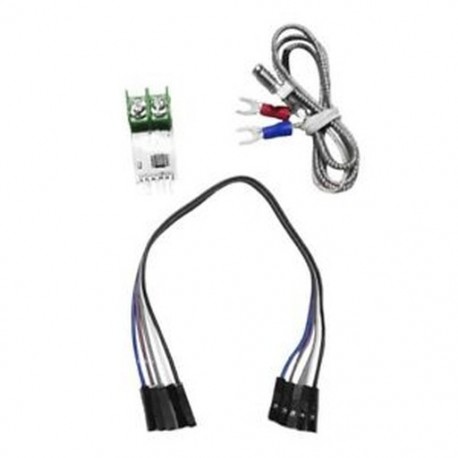

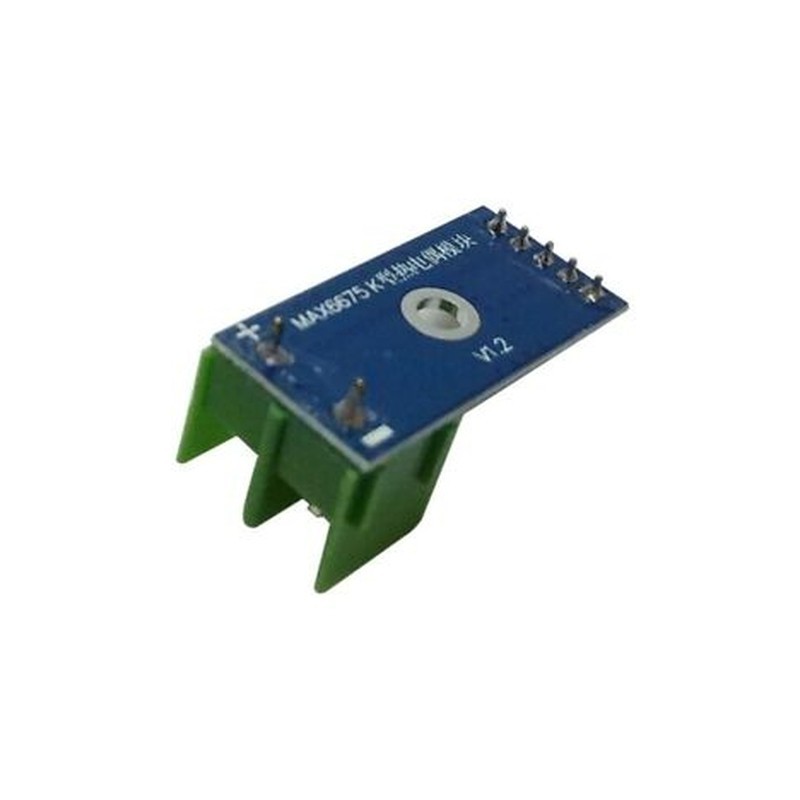

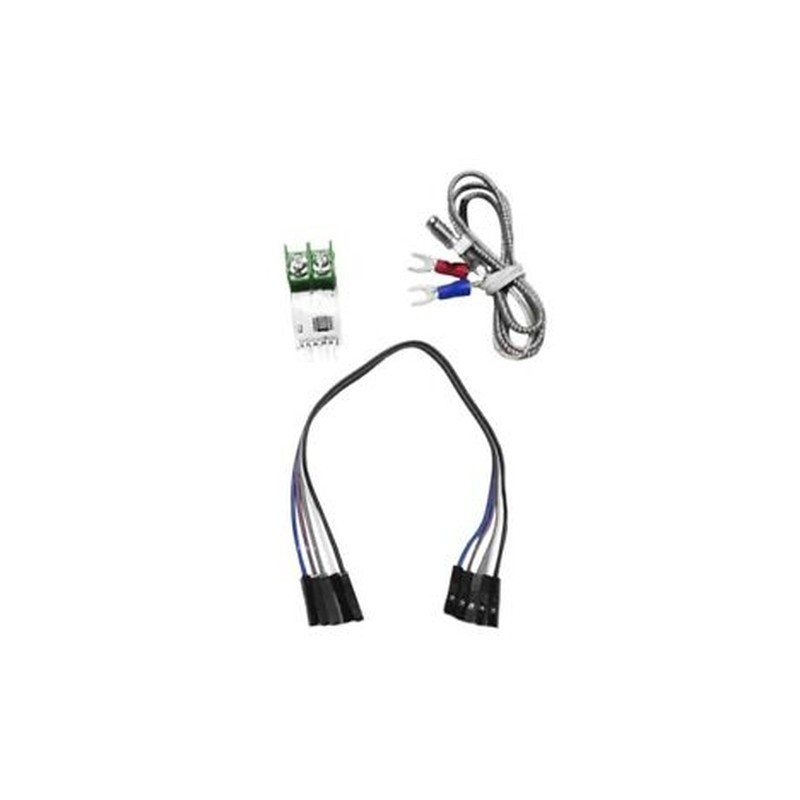

Package Included:1 x MAX6675 Module

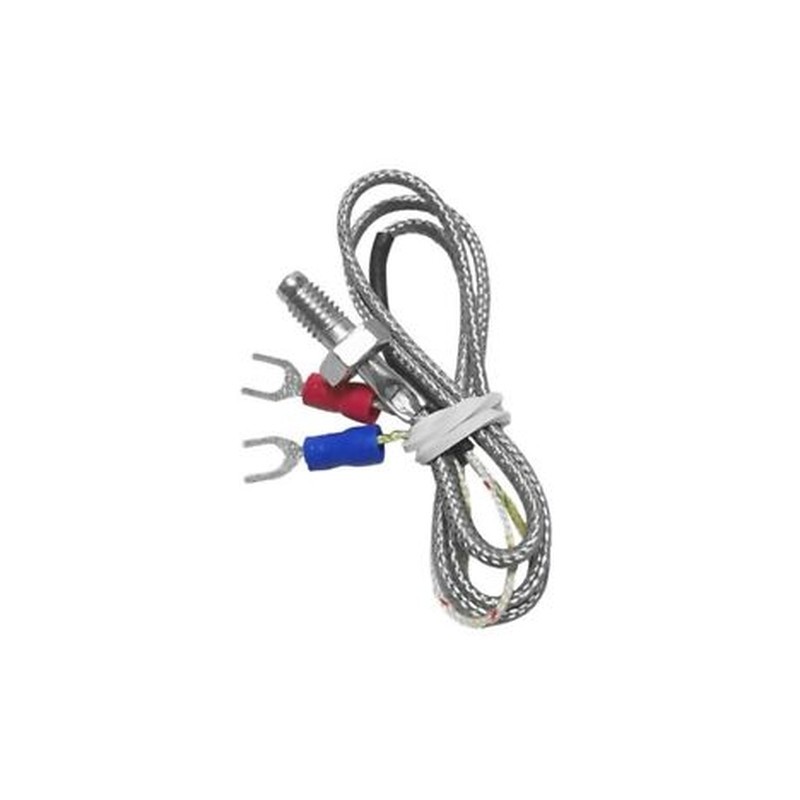

1 x K Type Thermocouple Thermocouple Sensor

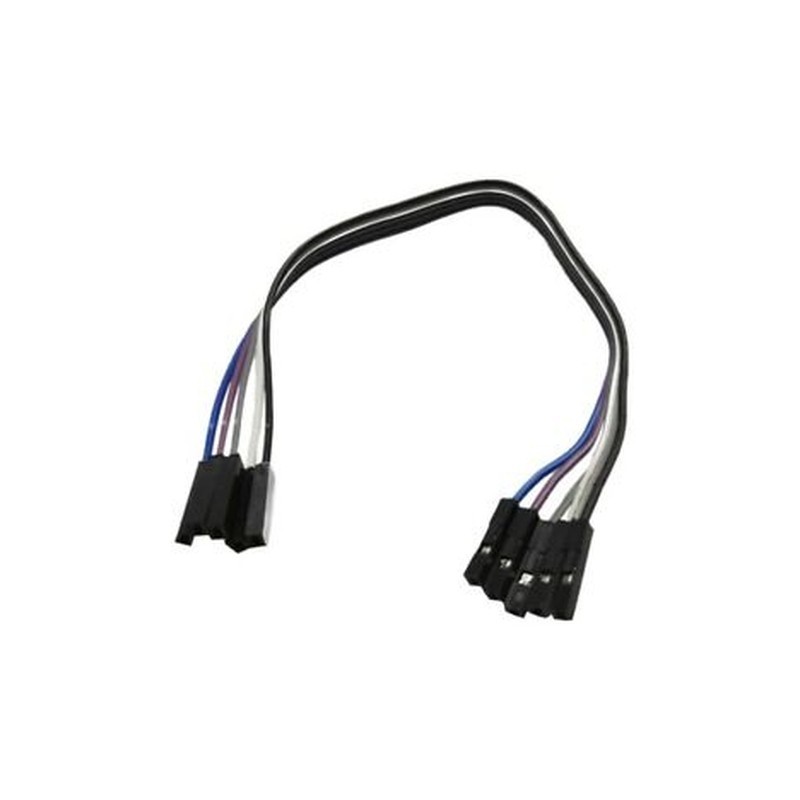

1 x 4PIN DuPont line
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
