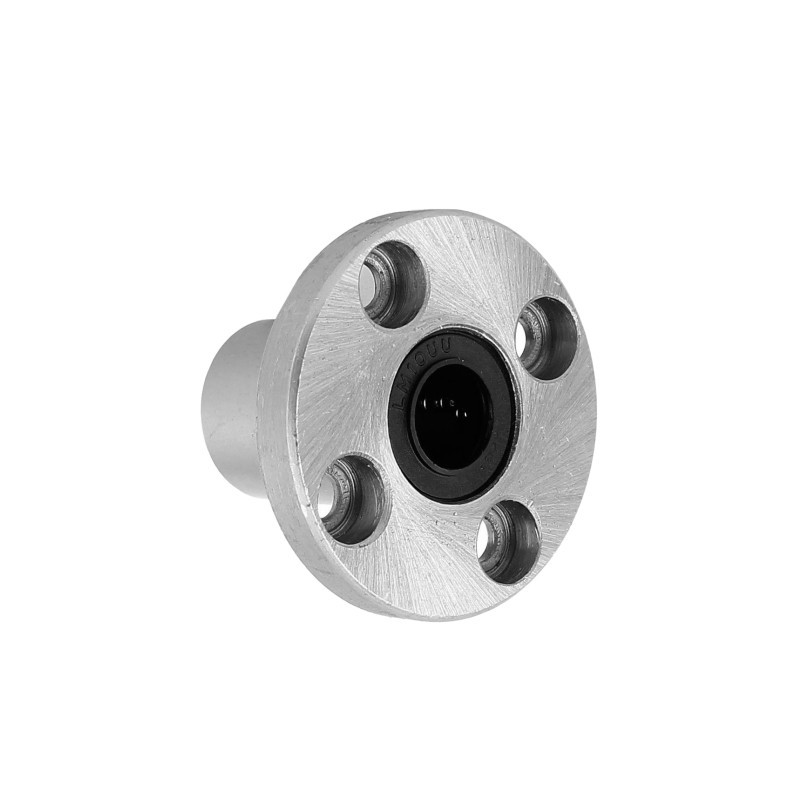

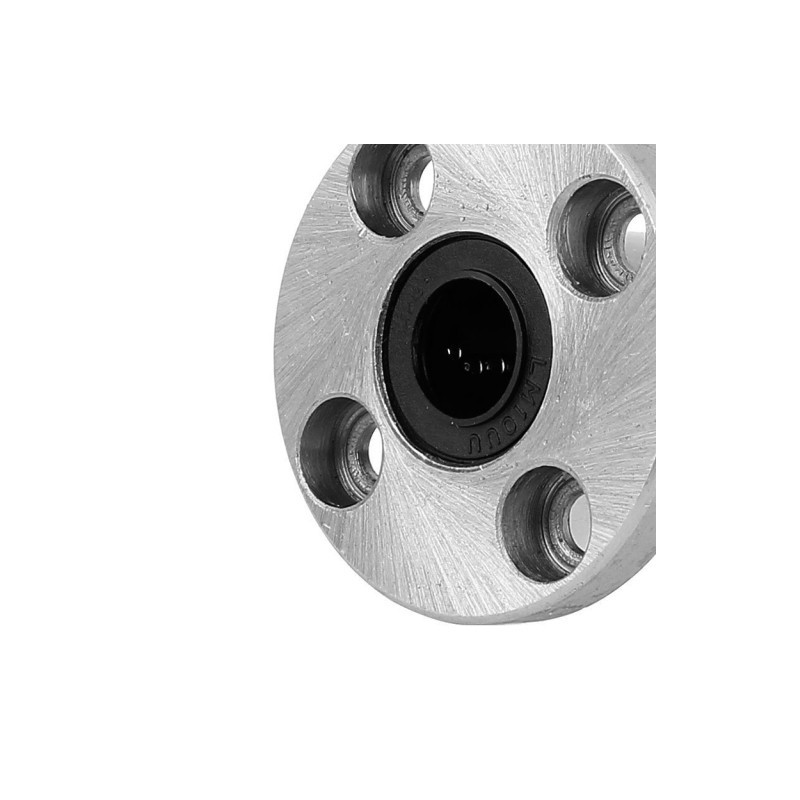

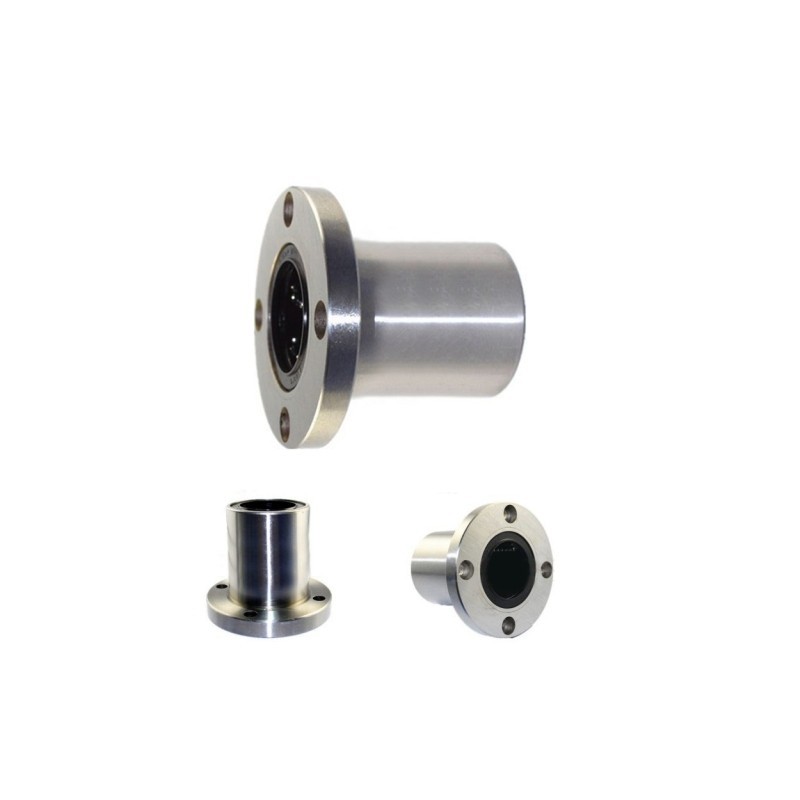

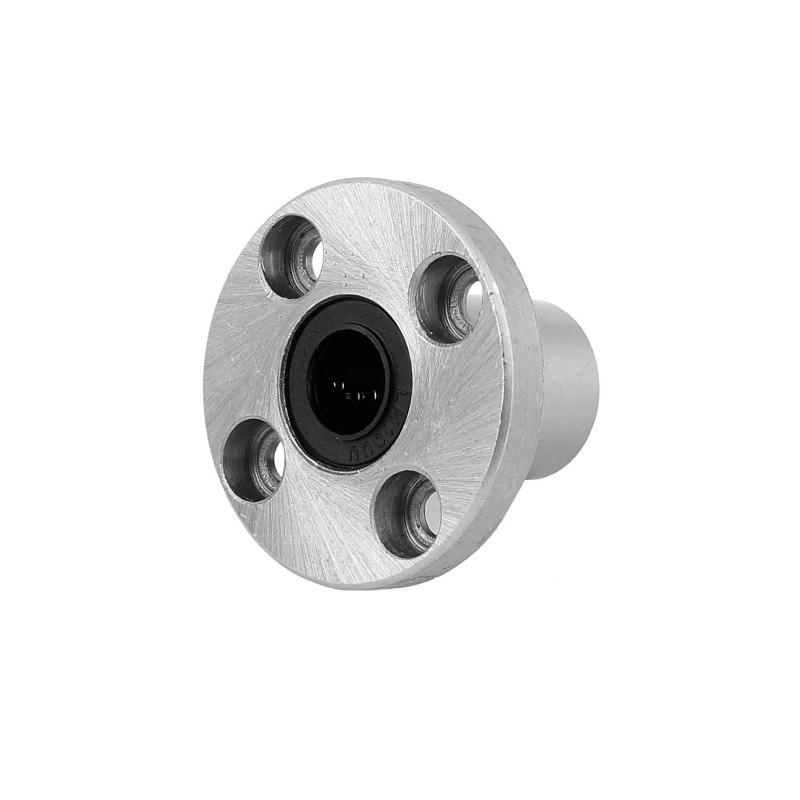

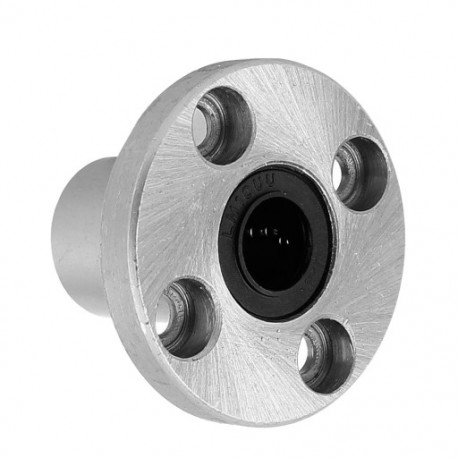

Lmf10Uu 10 mm belső átmérőjű 4 csavar, lineáris, kör alakú peremes golyóscsapágyak, N1Q6

Lmf10Uu 10Mm Inner Diameter 4 Bolts Linear Circular Flange Ball Bearings Be N1Q6

Low friction forces
The reliable property of the friction forces does not increase the life of the bearing.
Built in double seals standard
Advanced polymer resin cage for quieter operation
The universal linear ball bearing is perfect replacing damaged ball bearings and making them more efficient and energy efficient.
Ball rows: 4
Inner diameter (dr): 10mm (0.39inch)
Outer diameter (D): 19mm (0.75inch)
Length (L): 29mm (1.14inch)
Flange diameter (Df): 40mm (1.57inch)
Flange thickness (t): 6mm (0.24inch)
Mounted Hole Diameter (X, Y): 4.5mm (0.18inch) (X), 7.5mm (0.3inch) (Y)
mounted hole depth (Z): 4,1mm / 0,16inch
Mounting hole distance (Dp): 29mm (1.14inch)
dynamic C: 38kgf
static Co: 56kgf
Widely used in home appliances, industrial, low-noise and high-speed electric motors, construction machinery, automotive components, pumps and machinery
Seamless movement, low friction, high strength and long service life.Economical and easy to maintain / exchange
Model: LMF10UU;
Net weight: 63g
Color: silver
Material: bearing steel, rubber
Package contents:
1 * round flange bearing
