3X (DMX LED dekódervezérlő az RGB LED csíkvilágításhoz DMX512 DIMER illesztőprogramhoz E5O9

283490730240

Új termék

3X(DMX LED Decoder Controller for RGB LED Strip Light DMX512 Dimmer Driver E5O9

3X(Welcome to use the 30CH constant decoder, which take advantage of advanced microelectronic control technology.
This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals.
There are 1 ~ 30 output channels; each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting.
Products Performance:
Input Power: DC9V-DC24V(If you want to connect to a 5V light, you need to use two power supplies.)
Maximum load current: 2A/CHx30
Maximum power load: 360W (12V)720W (24V)
Output gray level: 256
Input Signal: DMX512/1990
Output signal: 30 channels Constant PWM
Output DMX: 30 channels standard XLR-3 caron plug,RJ45
Installation Notes:
This kind of controller works only under DC5V-24V, which is provided by the matched controllable main power, or else the controller will be damaged.
The UTP wire is connected hand in hand to make the cable, when two or more controller connected.
The power supply should be off when connecting the electric wires, and it can be turned on till making sure the wires are connected correctly and the indicator of main power in red is lighting.
Controller should work under the environment of adequately ventilated, dry, not corroded, no flammable gas and rust. Please check the wires connection regularly so that the wires of aged, rust-eaten, and damaged insulation spacer can be replaced timely
1, 30 output, can be connected to monochrome or RGB full-color lamps;
2, 0-100% dimming output, each road 256 gray levels;
3, address code can be set by DIP switch;
4, wide voltage DC input DC9V ~ DC24V;
5, There are 30 DMX addresses each.
colour: green(caron plug and screwdriver is random color )
Material: metal
size: 25.5*8*3.2cm

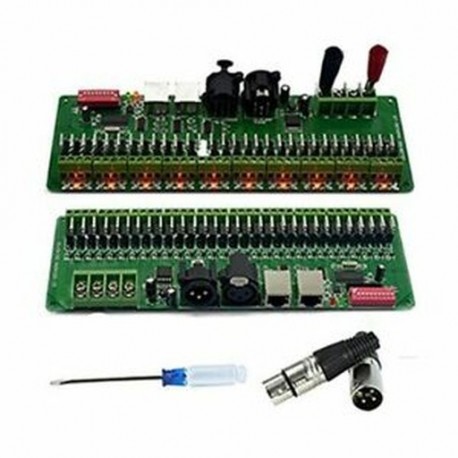

Package Contents:
1 * DMX decoder
2*XLR-3 plug
1*User Manual
