10A 12V / 24V napelemes töltővezérlő akkumulátor szabályozó biztonságos védelme

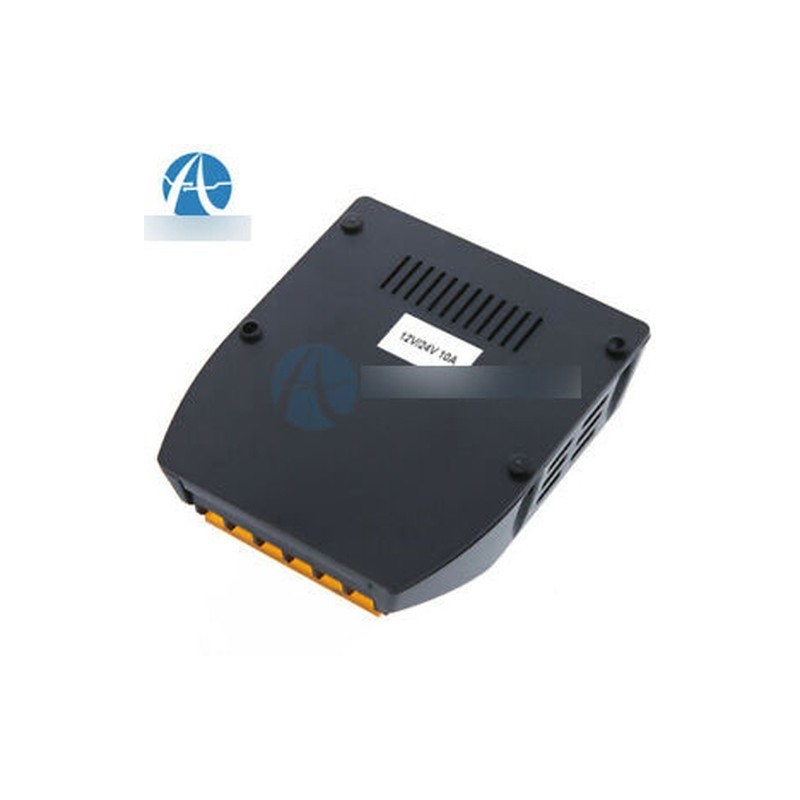

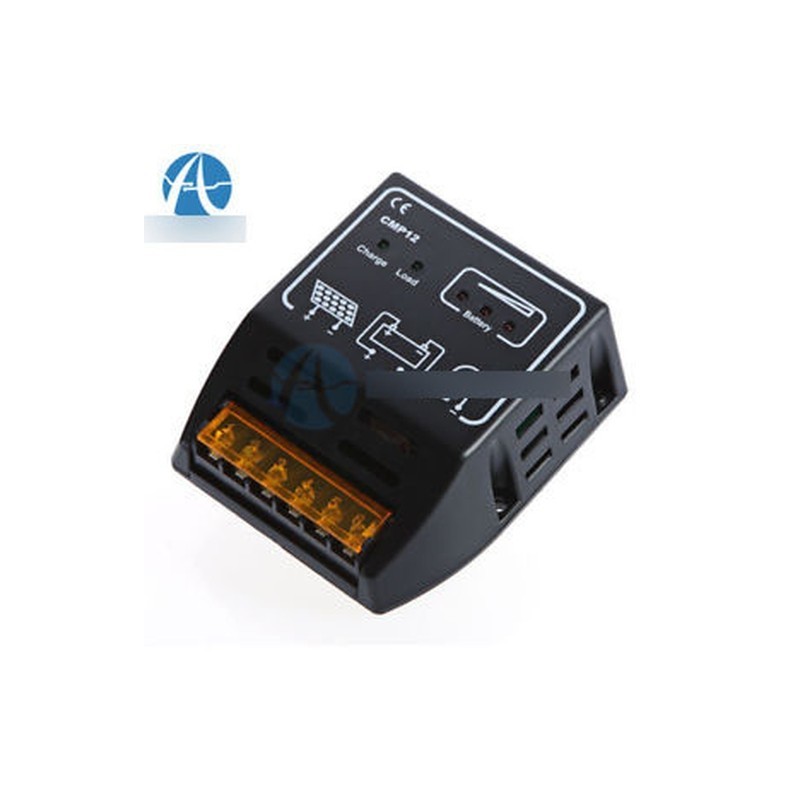

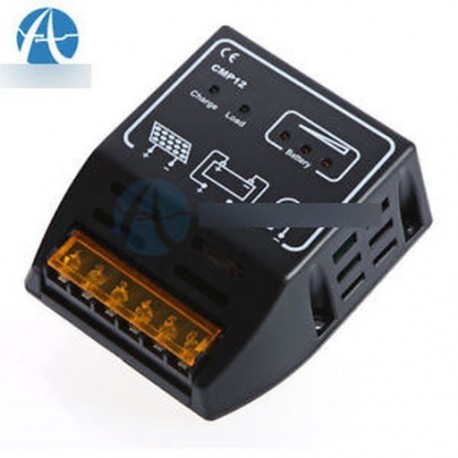

10A 12V/24V Solar Panel Charge Controller Battery Regulator Safe Protection
Features
PWM technology
High efficiency
Diversified load control
CE certificate
Automatically manage the working of solar panel and battery in solar system.
Overloading & short-circuit protection.
Reverse discharging & reverse-polarity protection.
Under-voltage and over-charging protection.
Protection from lightning strike.
Prolong the battery life cycle and keep the load work well.
Easy to set up and operate.
Suitable for small solar energy system.Electronic Protections
PV short circuit protection
PV reverse polarity protection
Battery over discharge protection
Load short circuit protection
Load overload protectionSpecification for 10AmpVoltage 12V / 24V DC Auto Regulation Work
Self-consuming 10mA
Rated Charge Current 10A
Rated Load Current 10A
Over Charge Protection14.4V / 28.8V
Floating Charge 13.5V / 27V
Recover 13.2V / 26.4V
Over Discharge Protection 10.8V / 21.6V
Recover 12.3V / 24.6V
Load Over Voltage Protection 16.5V / 34V
Recover 15V / 30V
Working Temperature -35.C~ 55.C
Storage Temperature range -35.C~ 80.C
Enclosure IP30
Weight 160g
