8X (Wtxup kettős sávú vezeték nélküli Ac 9560 hálózati kártya Intel 9560Ngw 802.11Ac O5A8-hoz)

8X(Wtxup Dual Band Wireless Ac 9560 Network Card For Intel 9560Ngw 802.11Ac O5A8

8X(Operating Systems: Only work with Microsoft Windows 10/Linux/Google Chrome OS.
Pls note:It cannot support Win 7/8.
Compatible With:It cannot support IBM/Thinkpad/lenovo/hp laptop.
The Intel Wireless-AC 9560 adapter is a CRF2 (companion RF module) supporting the 1st generation integrated Intel wireless 802.11ac solution comprised of CNVi3 and a CRF. The solution provides Bluetooth 5 and 2x2 802.11ac Wi-Fi including wave 2 features such as 160MHz channels delivering up to 1.73Gbps4 and downlink MU-MIMO.
These new features deliver a significant increase in user speeds in dense deployments, supporting fast downloads and long battery life compared to legacy 802.11ac devices. Combined with Intel Core processors and exceptional Intel wireless innovations, the Intel Wireless-AC 9560 can provide Gigabit wireless speed4 and dramatically improve your connected experience at home, work, or on the go.
Brand Name:WTXUP
Kind:Internal
Applicable Network Type:Ethernet
Type:Wireless
Application:Desktop
Adapter Socket:NGFF
Model:9560NGW(Normally for 2018 new sytle motherboard)
Connector Interface:NGFF key E(M.2: CNVi)
Frequency band:2.4Ghz/5Ghz
Network Standard : 802.11a/b/g/n,802.11ac
Bluetooth:5.0
Speed:1.73Gbps(The router must be on 160Mhz)
It currently only support certain processors:
8th Gen Intel？ Core? processors
Intel？ Pentium？ Silver processors based on Gemini Lake
Celeron？ processors based on Gemini Lake
Note: Even though you can insert these CRF to a standard M.2 Key E socket, they are only compatible with a system designed with the CNVi. Contact your system or motherboard manufacturer to verify compatibility.
colour:green
Material: PCB

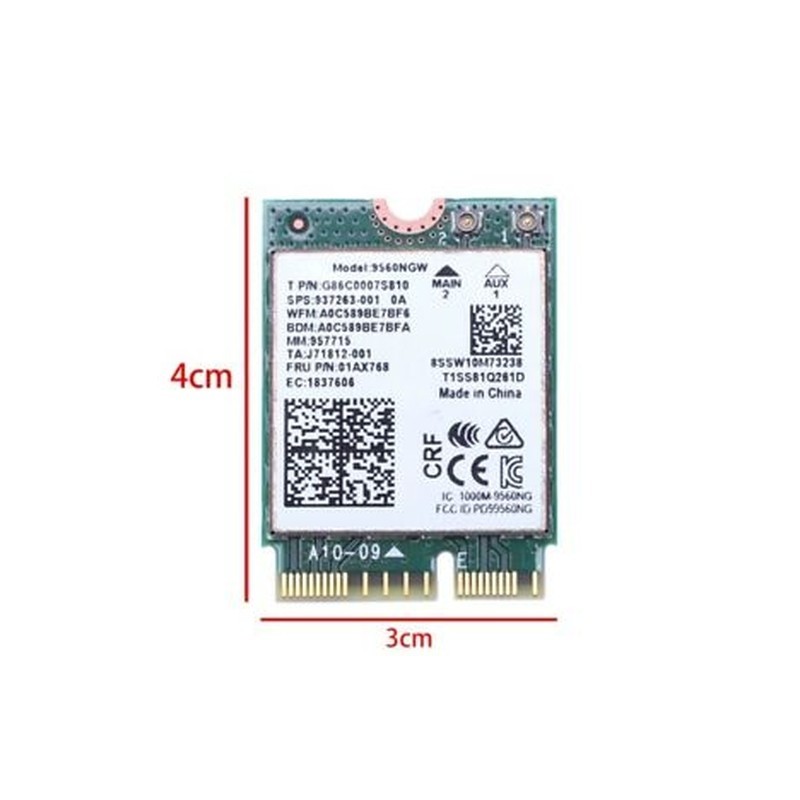

size:4*3cm

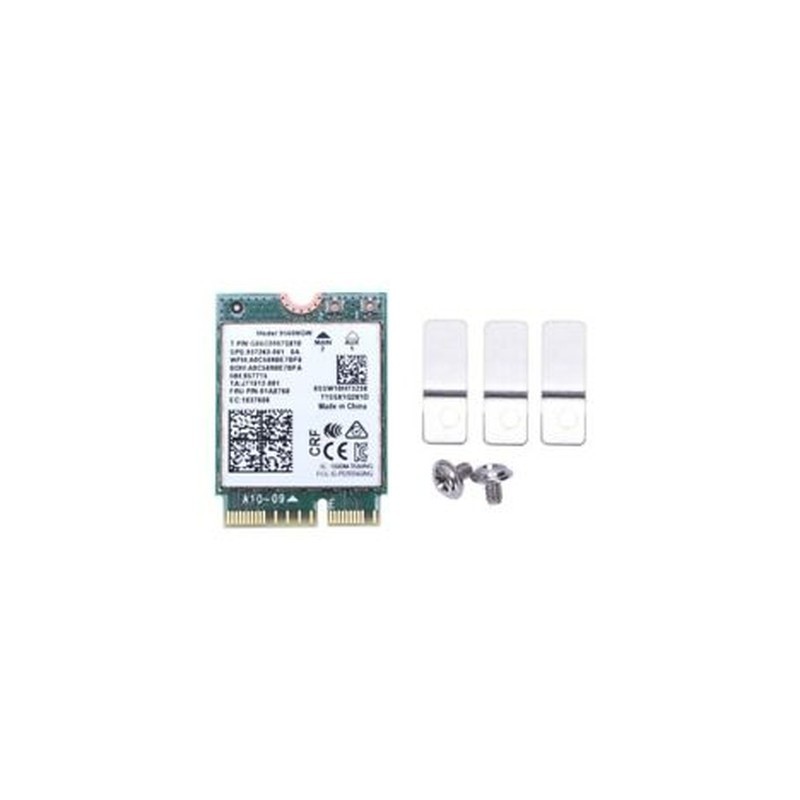

Package Contents:
1 * Wireless network card)
