1X (MINI Si7021 hőmérséklet- és páratartalom-érzékelő modul I2C interfész az Ard T7H4-hez)

1X(MINI Si7021 Temperature and Humidity Sensor Module I2C Interface For Ard T7H4

1X(Specifications:
1. Operating voltage: 1.9-3.6V (recommended 3.3V)
2. Standby current: 60nA
3. Temperature range: -40°C to 85°C (Recommended -10°C to 60°C)
4. Temperature accuracy: /- 0.4 °C (-10 to 85 °C)
5. Humidity range: 0-100% RH (recommended 20% - 80% RH)
6. Humidity accuracy: /- 3% RH (0-80% RH)
7. Temperature conversion time: 7ms
8. Humidity conversion time: 17ms (temperature conversion will occur automatically when the humidity conversion)

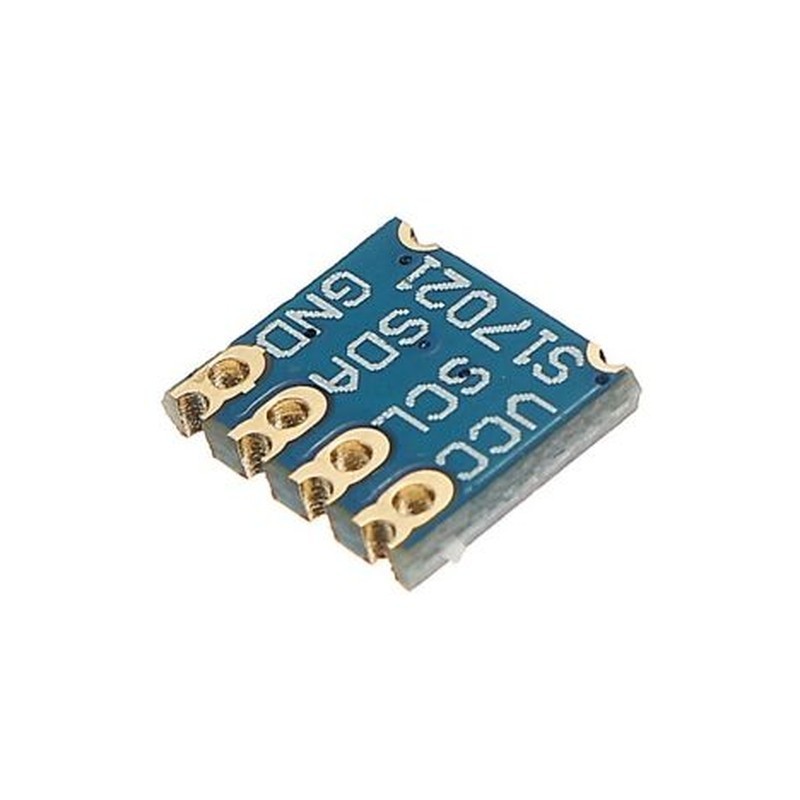

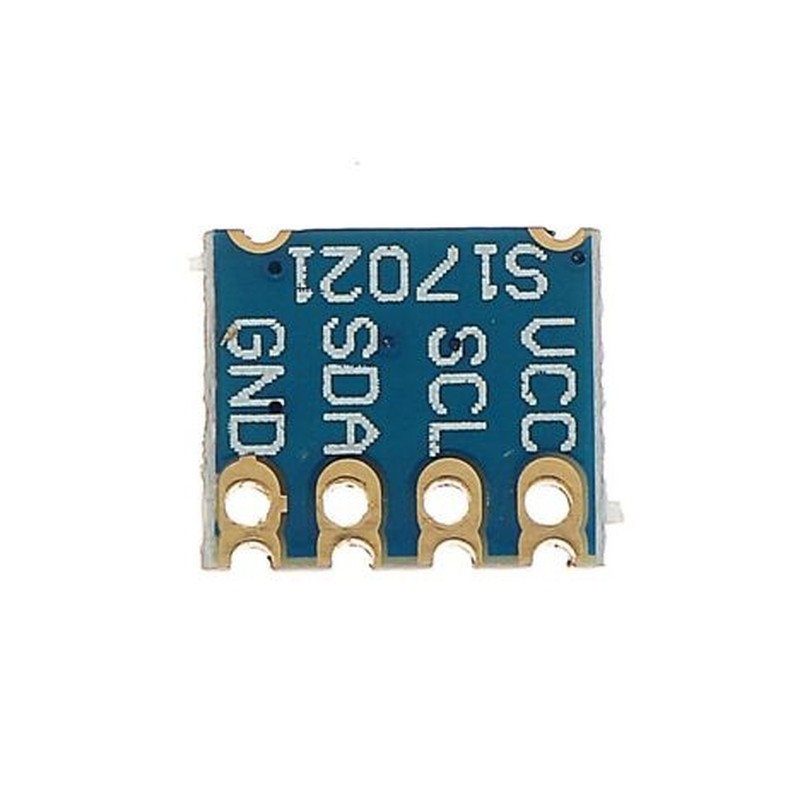

9. Interface type: I2C 2.54mm pad pitch
10. Module size: 8.5*10mm
Applications:
1. Assets and asset tracking
2. Auto climate control and defogging
3. Baby Monitors
4. Continuous Positive Airway Pressure (CPAP)
hine
5. Flooding and water detector
6. Gas, fire and smoke detectors
7. Mobile / Smart Phone
8. Industrial HVAC / R
9. Notebook / Tablet PC
10. laser printer
11. Microenvironment / Data Center
12. PLC and IO Modules
13. Remote telemetry device
14. Tablet
15. Test and Measurement
16. Thermostat / humidistat
17. Ventilation and air conditioning systems
18. Stations
19. Wind Power Inverter
20. Windshield and mirror system
21. The radio base station
22. Wireless sensor networks
Color: blue; Material: Plastic
Package Included:

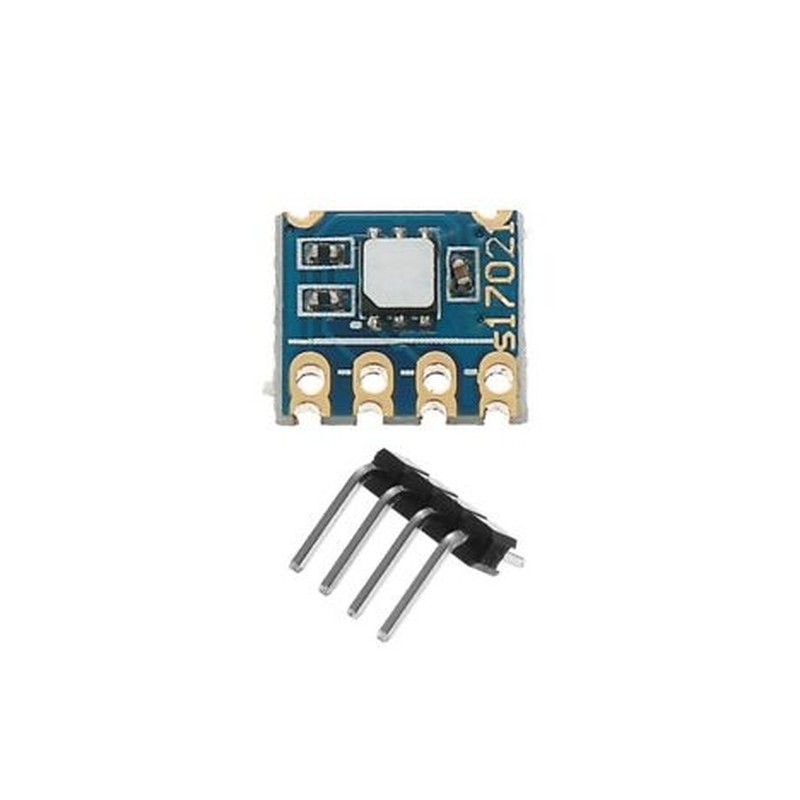

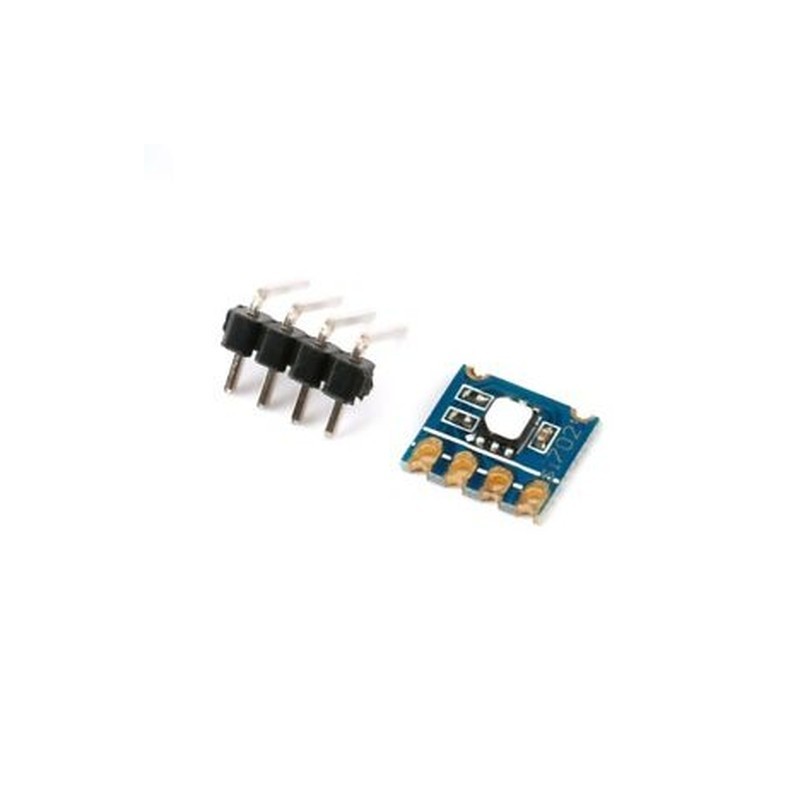

1 x Si7021 Temperature and Humidity Sensor Module
1 x 4pin Pin Header
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)
