Ic Tester 74 40 45 sorozatú Lc Logic Gate Tester digitális érzékelő Ic sorozat D6U0

Ic Tester 74 40 45 Series Lc Logic Gate Tester Digital Detection Ic Series D6U0

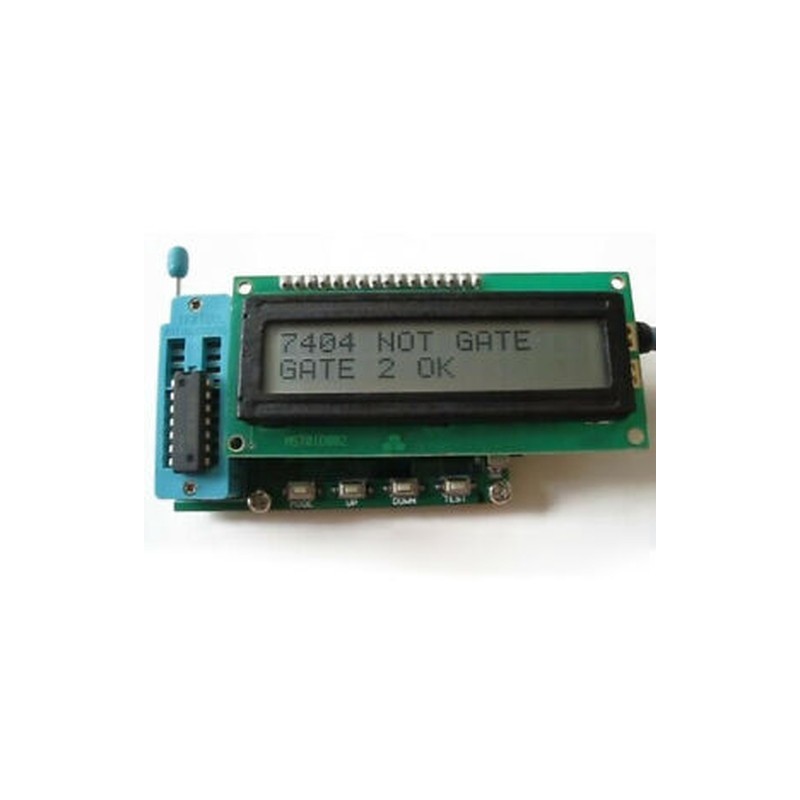

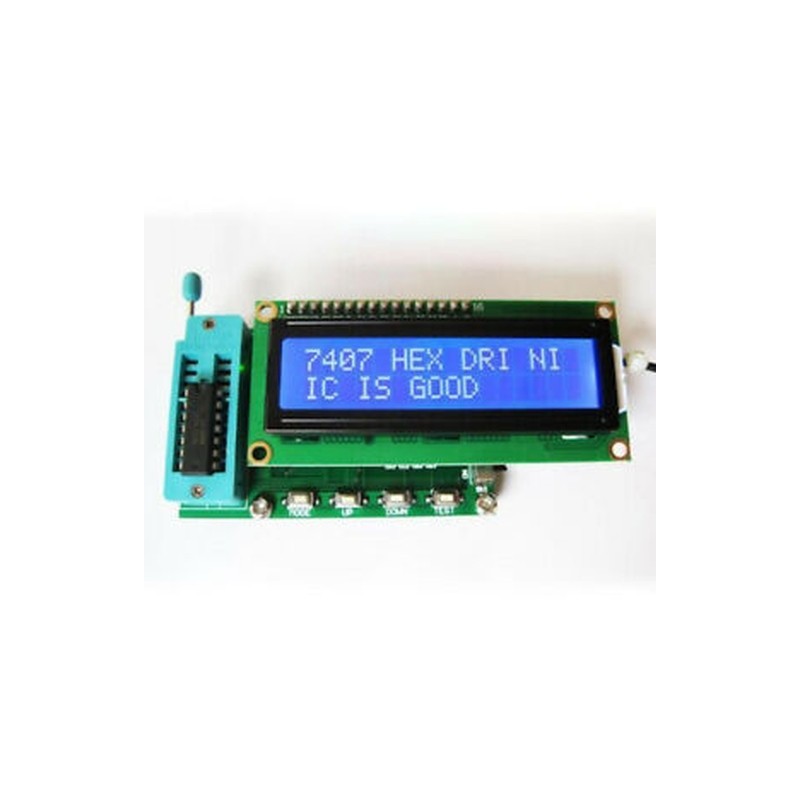

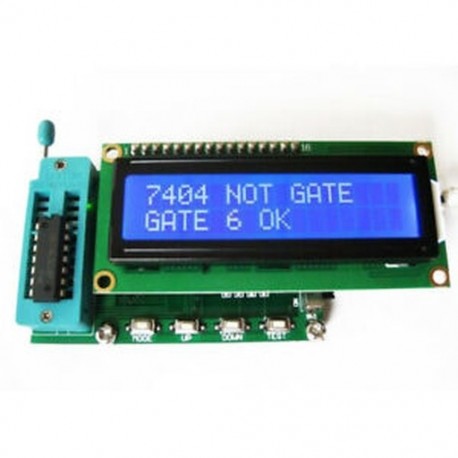

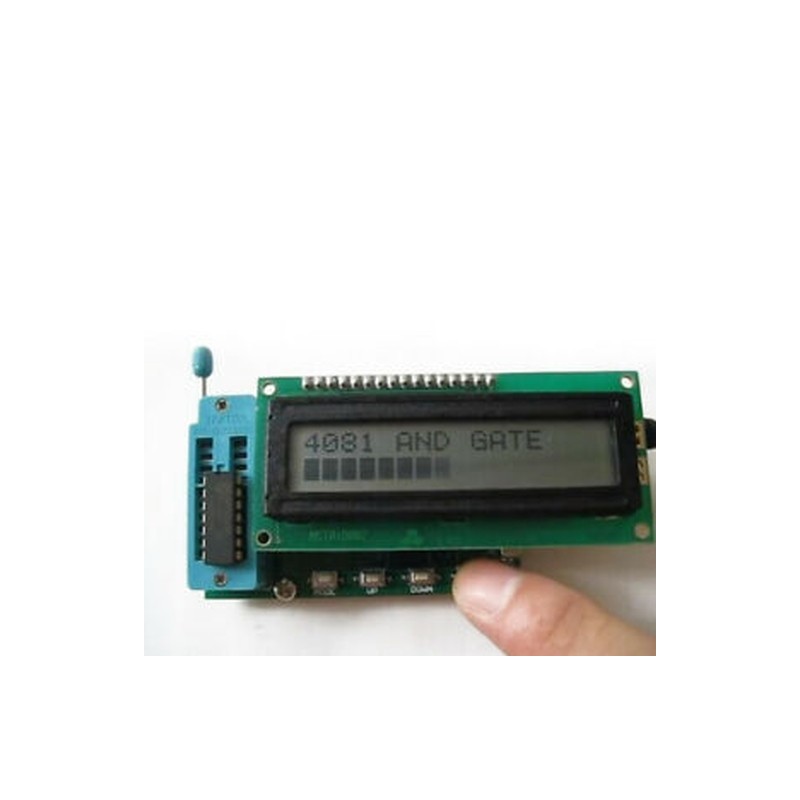

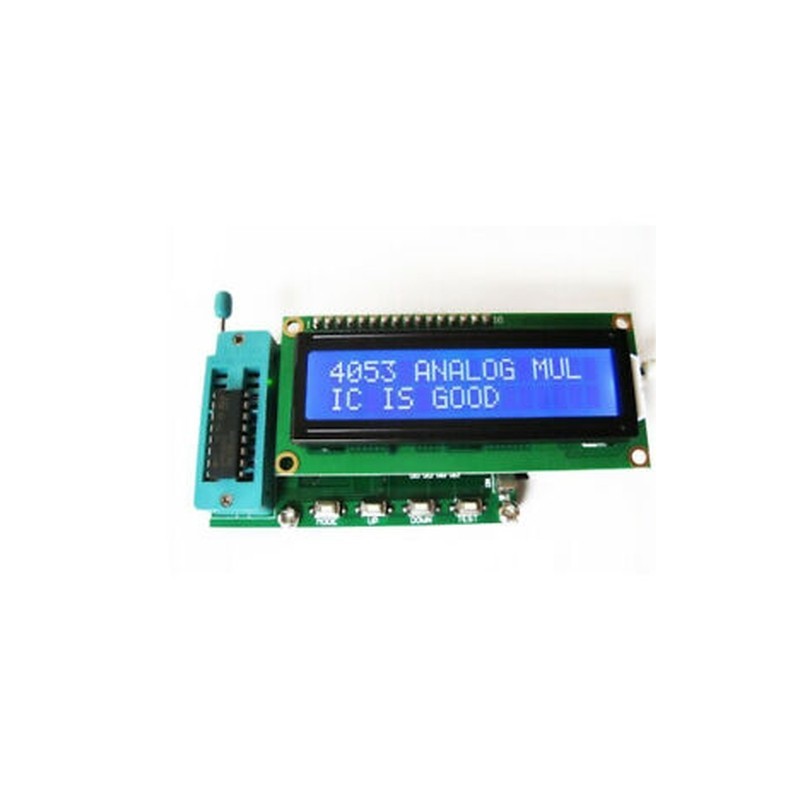

TES200 is a digital integration testing , mainly to test 74 series and 40 series IC , you can test more than 200 kinds IC.Simple to use, test logic can also determine which integrates logic gate is bad.1, operating voltage of 7 ~ 12 VDC.2, Working current Less than 30 mA.3, Operating temperature -40 Celsius ~ 65 Celsius Celsius.4, Storage temperature -40 Celsius ~ 65 Celsius Celsius.
Note : When installing the integration test is aligned downwards .74
7400 ,7401 ,7402 ,7403 ,7404 ,7405 ,7406 ,7407 ,7408 ,7409.7410 ,7411 ,7412 ,7413 ,7414 ,7415 ,7416 ,7417 ,7418 ,7419.7420 ,7421 ,7422 ,7424 ,7425 ,7426 ,7427 ,7428 ,7430 ,7432.7433 ,7434 ,7435 ,7436 ,7437 ,7438 ,7439 ,7440 ,7442 ,7443.7444 ,7445 ,7446 ,7447 ,7448 ,7454 ,7464 ,7470 ,7472 ,7473.7474 ,7475 ,7476 ,7477 ,7478 ,7480 ,7482 ,7483 ,7485 ,7486.7487 ,7489 ,7494 ,7495 ,7496 ,74101 ,74102 ,74103 ,74107 ,74108.74109 ,74112 ,74113 ,74125 ,74126 ,74128 ,74130 ,74132 ,74133 ,74134
74135 ,74136 ,74137 ,74138 ,74139 ,74140 ,74145 ,74147 ,74148 ,74151.74152 ,74153 ,74155 ,74156 ,74157 ,74158 ,74160 ,74161 ,74163 ,74164.74165 ,74166 ,74171 ,74173 ,74174 ,74175 ,74176 ,74177 ,74180 ,74182.74190 ,74191 ,74192 ,74193 ,74194 ,74195 ,74197 ,74242 ,74243 ,74247.74248 ,74249 ,74251 ,74253 ,74256 ,74257 ,74258 ,74259 ,74260 ,74266.
74279 ,74280 ,74283 ,74290 ,74293 ,74295 ,74298 ,74350 ,74352 ,74353.74365 ,74366 ,74367 ,74368 ,74375 ,74378 ,74379 ,74390 ,74393 ,74395.74425 ,74426 ,74445 ,74447 ,74490 ,74595 ,74670
40,45
CD4000, CD4001, CD4002, CD4006, CD4007, CD4008, CD4009, CD4010, CD4011, CD4012,
CD4013, CD4014, CD4015, CD4016, CD4017, CD4018, CD4019, CD4020, CD4021, CD4022,
CD4023, CD4024, CD4025, CD4026, CD4027, CD4028, CD4029, CD4030, CD4033, CD4035,
CD4040, CD4042, CD4043, CD4044, CD4048, CD4049, CD4050, CD4051, CD4052, CD4053,
CD4060, CD4066, CD4068, CD4069, CD4070, CD4071, C
