12V Car Handsfree Bluetooth MP3 Decode Board w/ Bluetooth & FM Radio Module X2X8
Color:black
Material:Metal plastic
Panel dimensions: 91MM * 35MM * 46MM
Support USB, SD, extracellular signal switch directly
Support folder
Support for stereo Bluetooth (Bluetooth3.0EDR) paired with the phone can be achieved after a good music wireless
Support USB / SD / Bluetooth / FM / LINE switch automatically. Support MP3 / WMA / WAV lossless songs.
Support USB / SD card switch, switch songs song selection
Support Bluetoot the song, the next song, adjust volume, EQ, play / pause, mute, shut down.
Support FAT16, FAT32 file system.
Support MP1 Layer3, MP2 Layer3, MP3 Layer3 version of the song.
Support 32-320kbps of MP3 songs.
Support power and memory function, continue playing the song played before the power and volume.
Support cycle mode
How to connect :
1. Connection: 2P circuit board electrically connected to 12V (GND Ground, 12V positive);
2, FM: ANT FM radio antenna connected to the welding hole;
3,The audio output: 5P row seat then press the icon audio output R / L / GND;
and your amplifier board R / L / GND pair are connected.
Or connected to the AUX input jack
4,The audio input (AUX): 3P-row seat according to the illustrated audio inputs L-IN / GND / R-IN
Note:
Voltage is not higher than the highest value product desired
voltage can damage the main chips and related components! Please note.

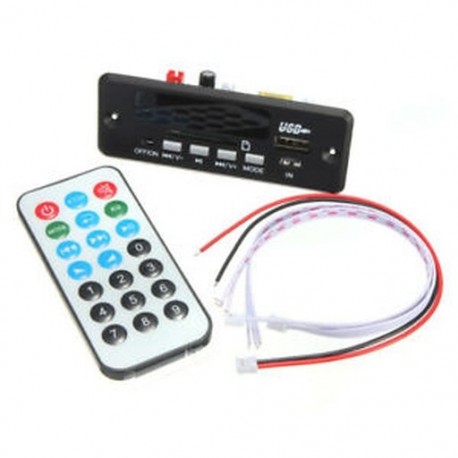

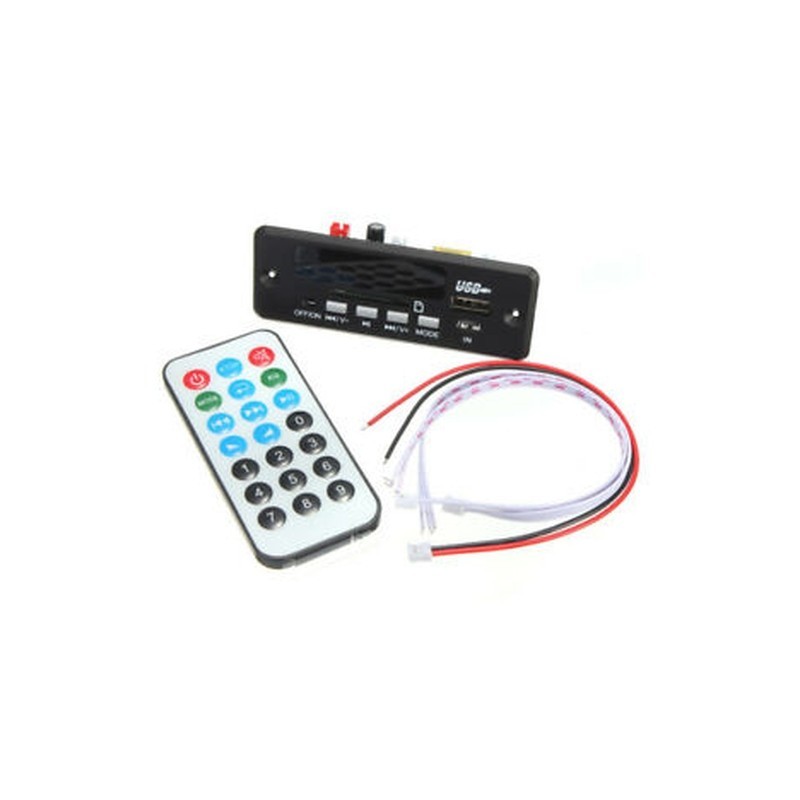

Package include:
1 x decoding panel
1 x remote control(with battery)
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
