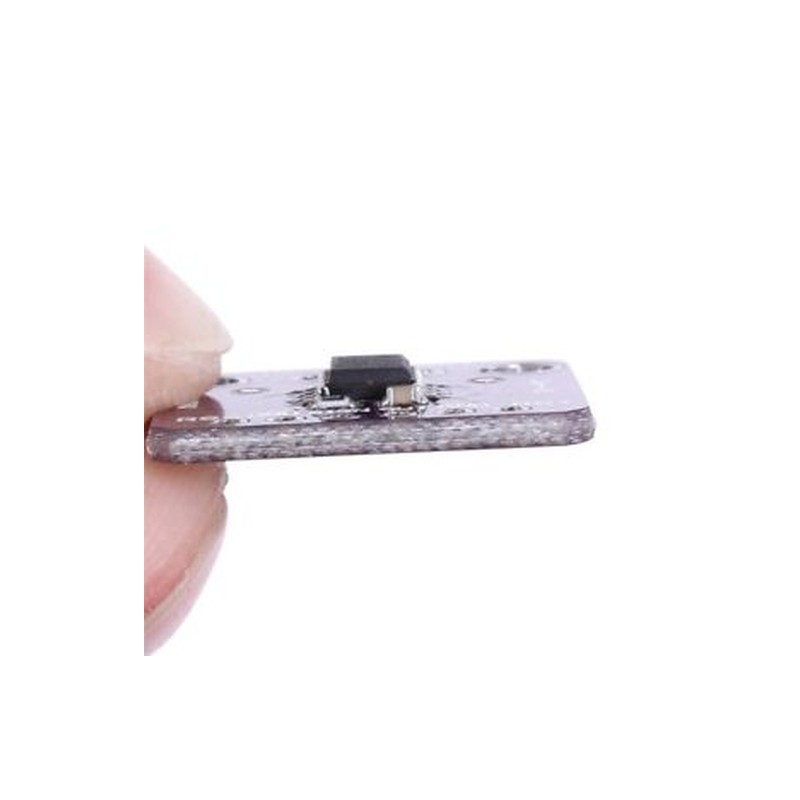

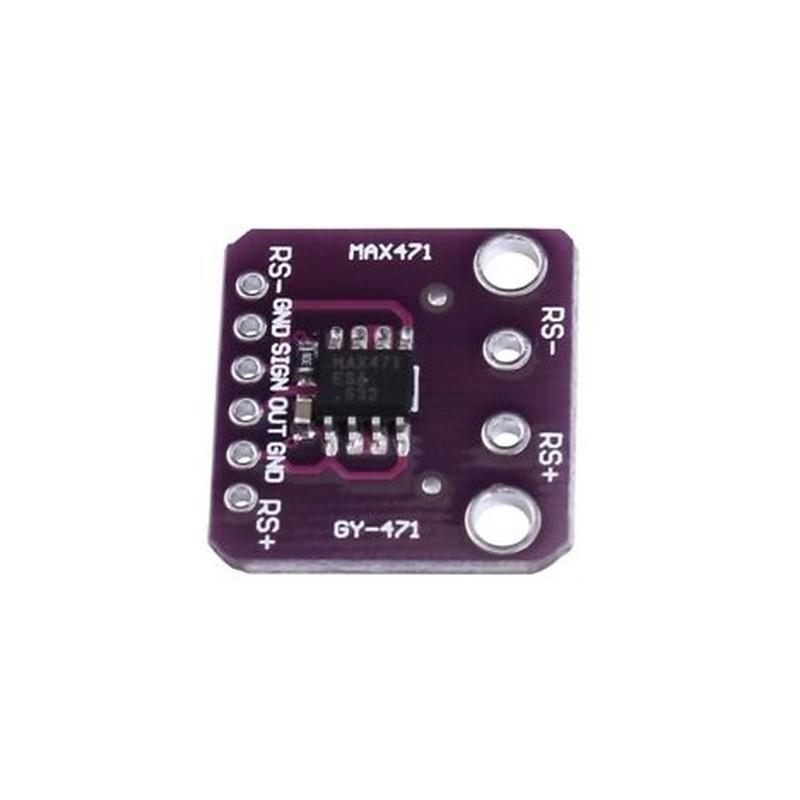

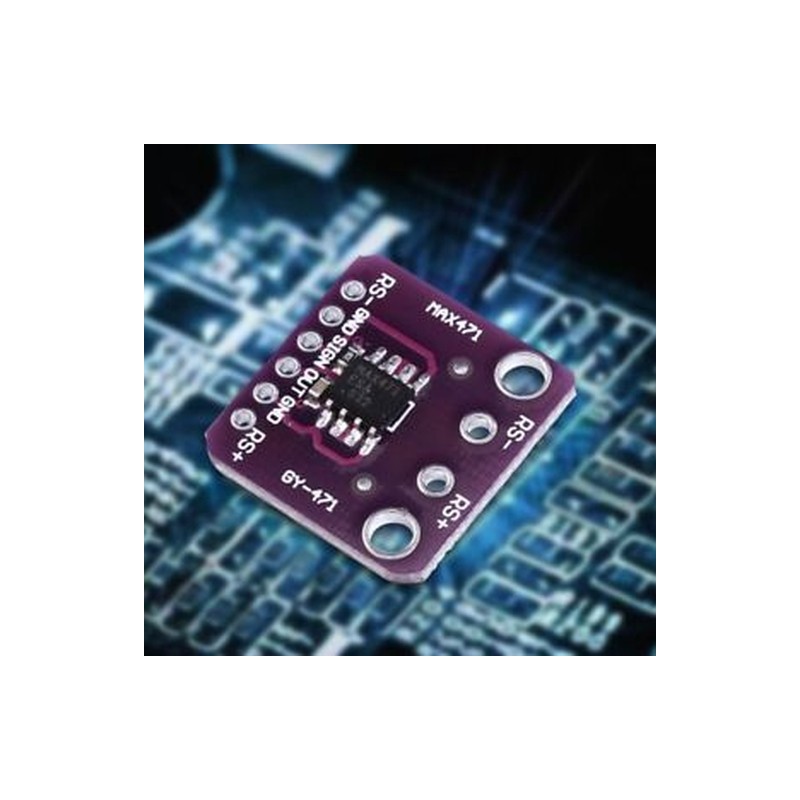

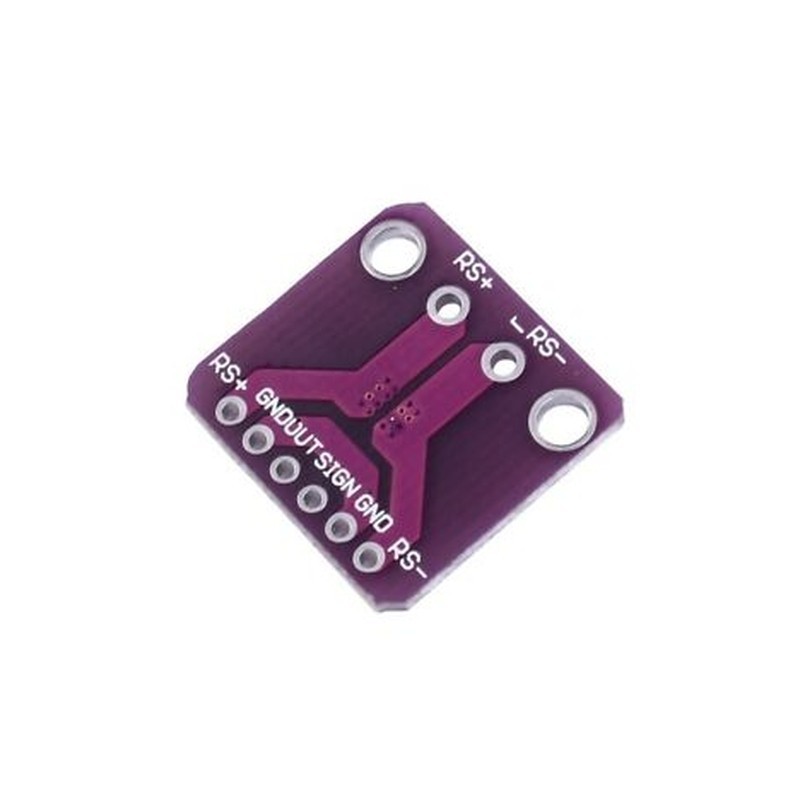

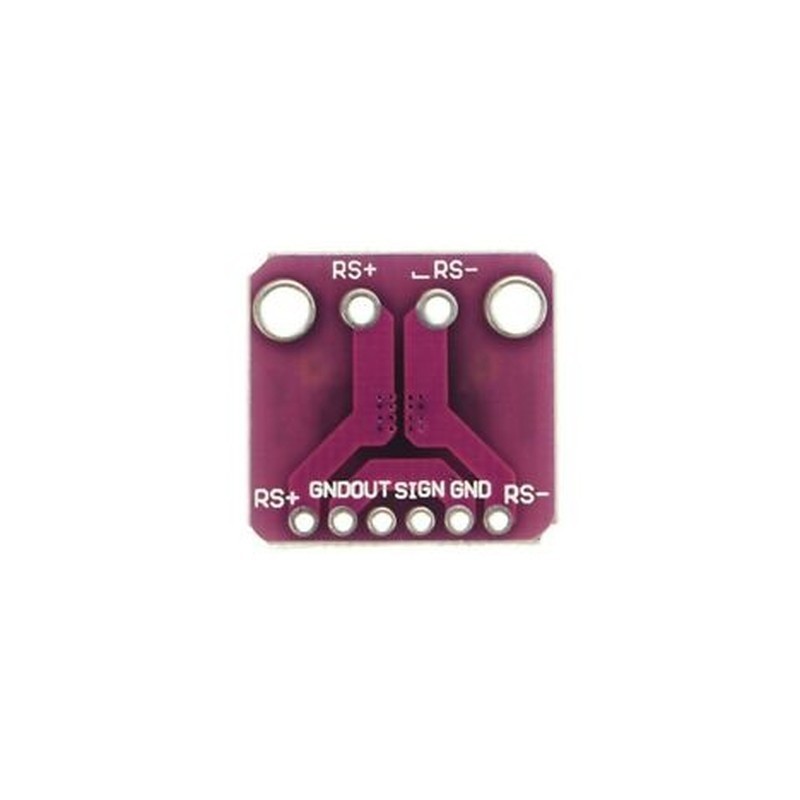

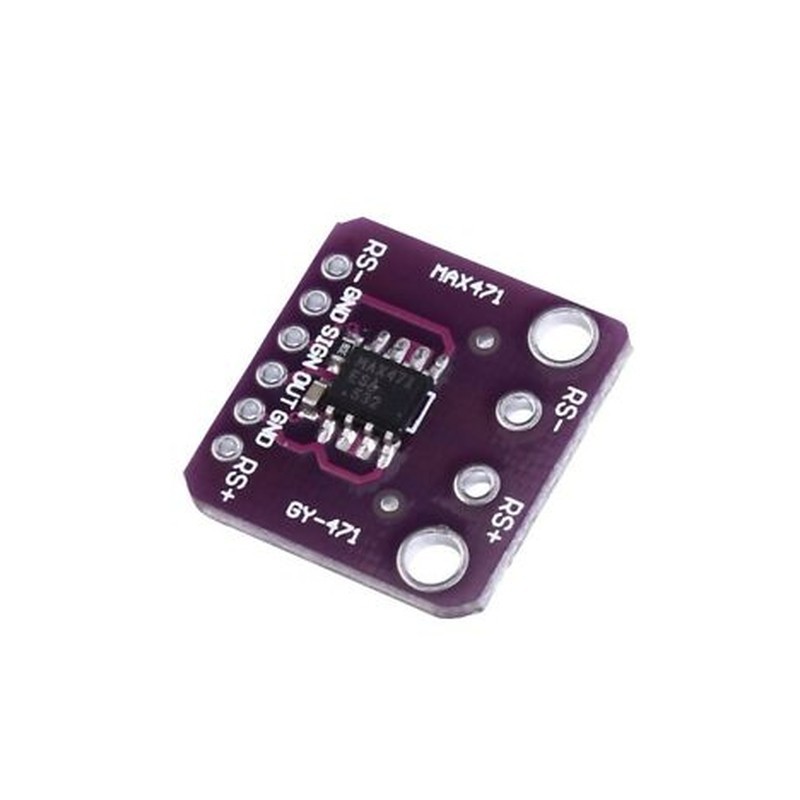

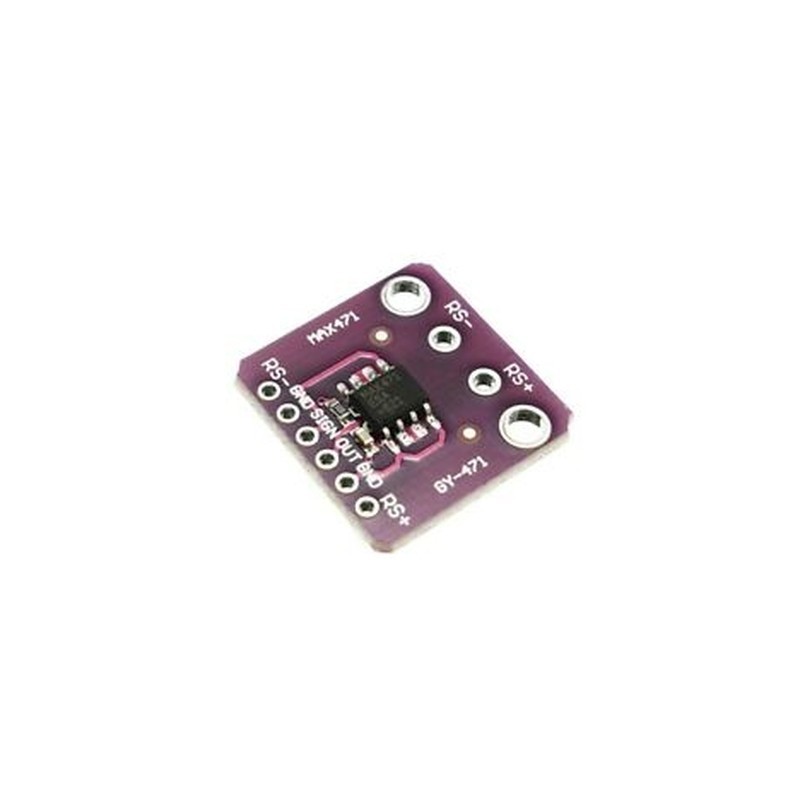

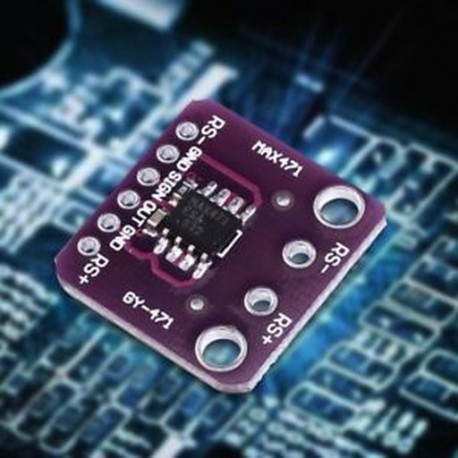

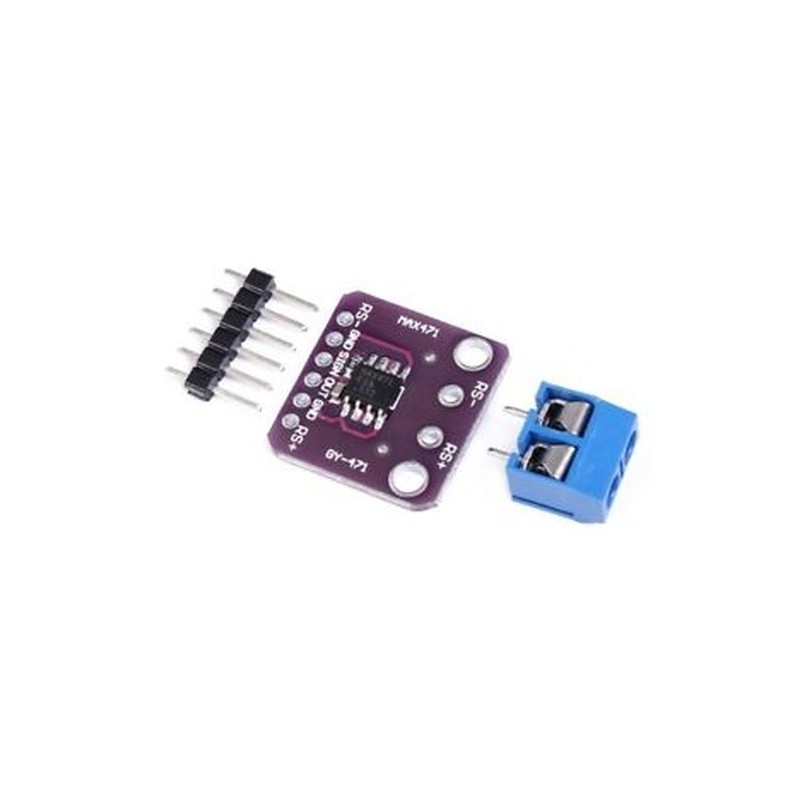

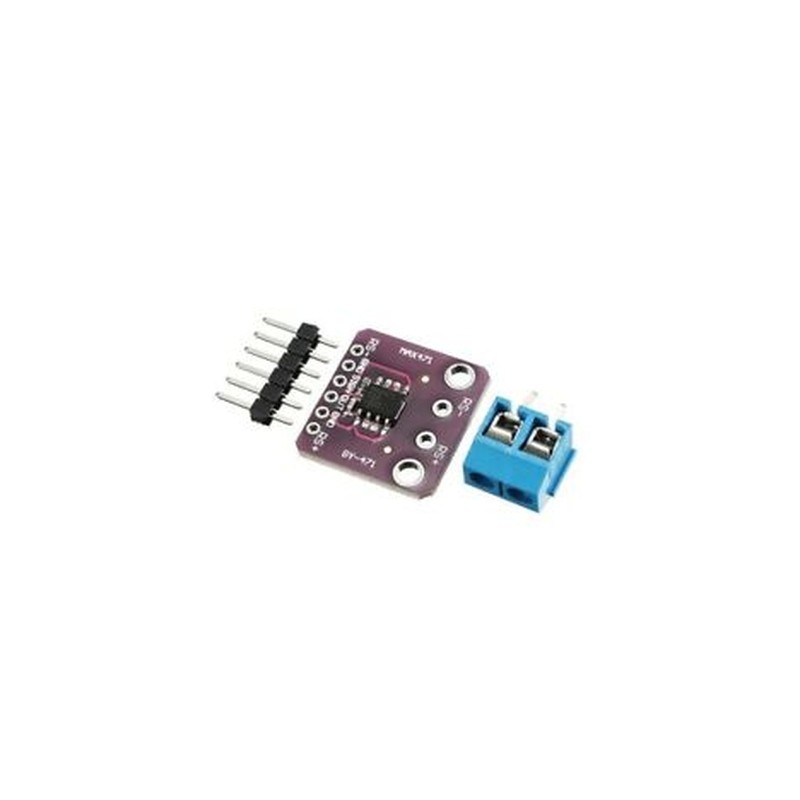

GY-471 3A tartományú érzékelő modul Professional MAX471 modul Arduin M0R1-hez
282998304143
Új termék
GY-471 3A Range Current Sensor Module Professional MAX471 Module For Arduin M0R1
Feature:
This module can be used to test the current and voltage.
The principle of voltage test based on principle of resistive voltage divider design, can make the red terminal connector input voltage to 5 times smaller.
Analog input voltages up to 5V, the voltage detection module input voltage not greater than 5Vx5 = 25V (if using 3.3V systems, input voltage not greater than 3.3Vx5 = 16.5V). AVR chips have 10-bit AD, so this module simulates a resolution of 0.00489V (5V / 1023), so the minimum voltage of input voltage detection module is 0.00489 Vx5 = 0.02445V.
The MAX471 chip on the board used to test the consume current of the load.
Specifications
Test Voltage range: DC3 - 25V (Ard uino work on 5V) or DC3 - 16.5V (work on 3.3V)
Test Current range: DC 0 - 3A
Size:19.5 x 20.3mm
Package Contents:
1 x MAX471 Current Sensor Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
