2X (I2S 3W D osztályú erősítő kitörési modult fejlesztő eszközök MAX98357A D6B3)

283476244509

Új termék

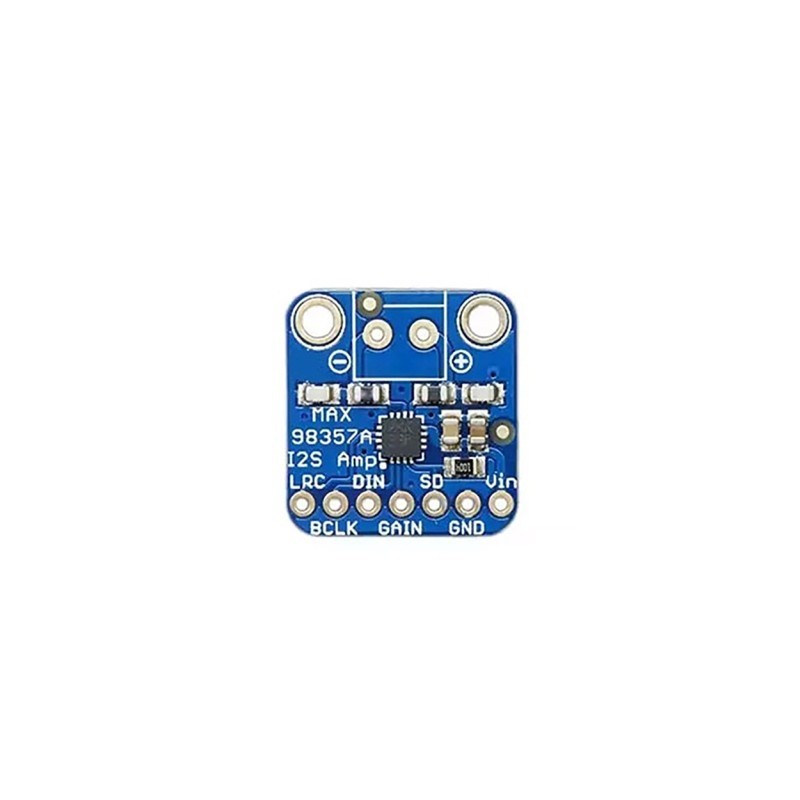

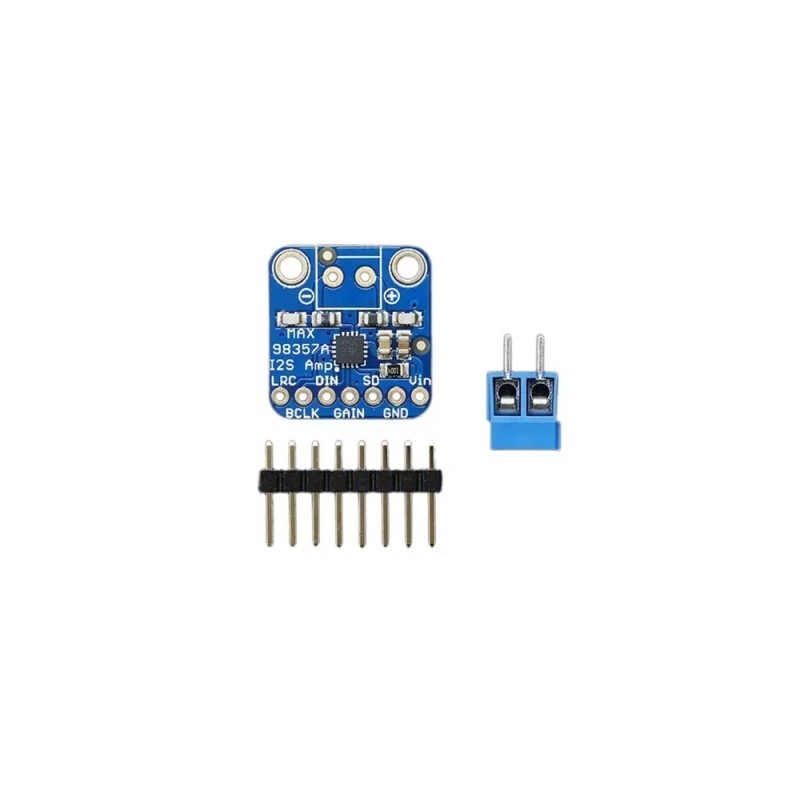

2X(I2S 3W Class D Amplifier Breakout Moudle Development Tools MAX98357A D6B3)

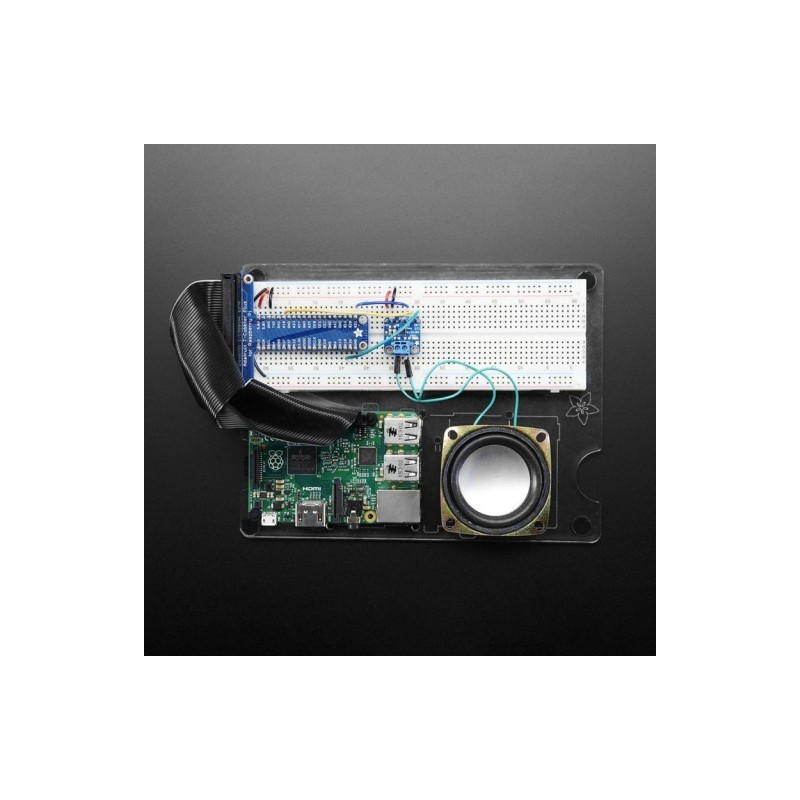

2X(Listen to this good news:we now have an all in one digital audio amp breakout board that works incredibly well with the Raspberry Pi ! If you`re looking for an easy and low cost way to get you digital sound files bumpin` then the MAX08357 I2S Amp Breakout is for you.
It takes standard I2S digital audio input and, not only decodes it into analog, but also amplifies it directly into a speaker. Perfect for adding compact amplified sound, it takes 2 breakouts (I2S DAC Amp) and combines them into one.
I2S (not to be confused with I2C) in a digital sound protocol that is used on circuit boards to pass audio data around. Many high end chips and processors manage all of the audio in digital I2S format. Then, to input or output data, three or four pins are used (data in, data out, bit clock and left-right channel select). Usually, for audio devices, there`s a DAC chip that will take I2S in and convert it to analog that can drive a headphone.
This small mono amplifier is surprisingly powerful - able to deliver 3.2 Watts of power into a 4 ohm impedance speaker (5V power @ 10% THD). Inside the miniature chip is a class D controller, able to run from 2.7V-5.5VDC. Since the amp is a class D, it`s incredibly efficient - making it perfect for portable and battery-powered projects. It has built in thermal and over-current protection but we could barely tell it got hot.
The audio input is I2S standard, you can use 3.3V or 5V logic data. The outputs are "Bridge Tied" - that means they connect directly to the outputs, no connection to ground. The output is a ~300KHz square wave PWM that is then `averaged out` by the speaker coil - the high frequencies are not heard. All the above means that you can`t connect the output into another amplifier, it should drive the speakers directly.
There`s a Gain pin that can be manipulated to change the gain. By default, the a)

Bővebb leírás

3 527 Ft‎

-48%

6 782 Ft‎

Hozzáadás a kívánságlistához

Egyéb infó

2X(I2S 3W Class D Amplifier Breakout Moudle Development Tools MAX98357A D6B3)

2X(Listen to this good news:we now have an all in one digital audio amp breakout board that works incredibly well with the Raspberry Pi ! If you`re looking for an easy and low cost way to get you digital sound files bumpin` then the MAX08357 I2S Amp Breakout is for you.
It takes standard I2S digital audio input and, not only decodes it into analog, but also amplifies it directly into a speaker. Perfect for adding compact amplified sound, it takes 2 breakouts (I2S DAC Amp) and combines them into one.
I2S (not to be confused with I2C) in a digital sound protocol that is used on circuit boards to pass audio data around. Many high end chips and processors manage all of the audio in digital I2S format. Then, to input or output data, three or four pins are used (data in, data out, bit clock and left-right channel select). Usually, for audio devices, there`s a DAC chip that will take I2S in and convert it to analog that can drive a headphone.
This small mono amplifier is surprisingly powerful - able to deliver 3.2 Watts of power into a 4 ohm impedance speaker (5V power @ 10% THD). Inside the miniature chip is a class D controller, able to run from 2.7V-5.5VDC. Since the amp is a class D, it`s incredibly efficient - making it perfect for portable and battery-powered projects. It has built in thermal and over-current protection but we could barely tell it got hot.
The audio input is I2S standard, you can use 3.3V or 5V logic data. The outputs are "Bridge Tied" - that means they connect directly to the outputs, no connection to ground. The output is a ~300KHz square wave PWM that is then `averaged out` by the speaker coil - the high frequencies are not heard. All the above means that you can`t connect the output into another amplifier, it should drive the speakers directly.
There`s a Gain pin that can be manipulated to change the gain. By default, the a)
