800TVL CMOS PAL CCTV vezetékes rejtett csavar Pinhole kamera Otthoni biztonság Spy Cam

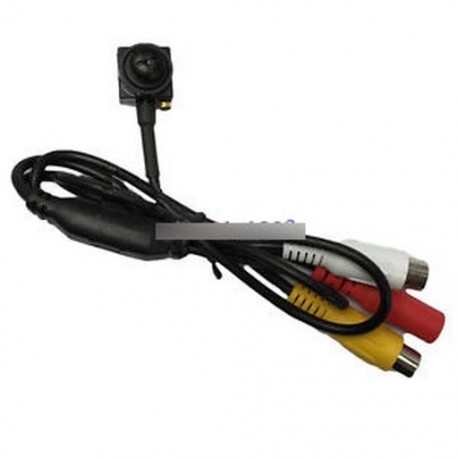

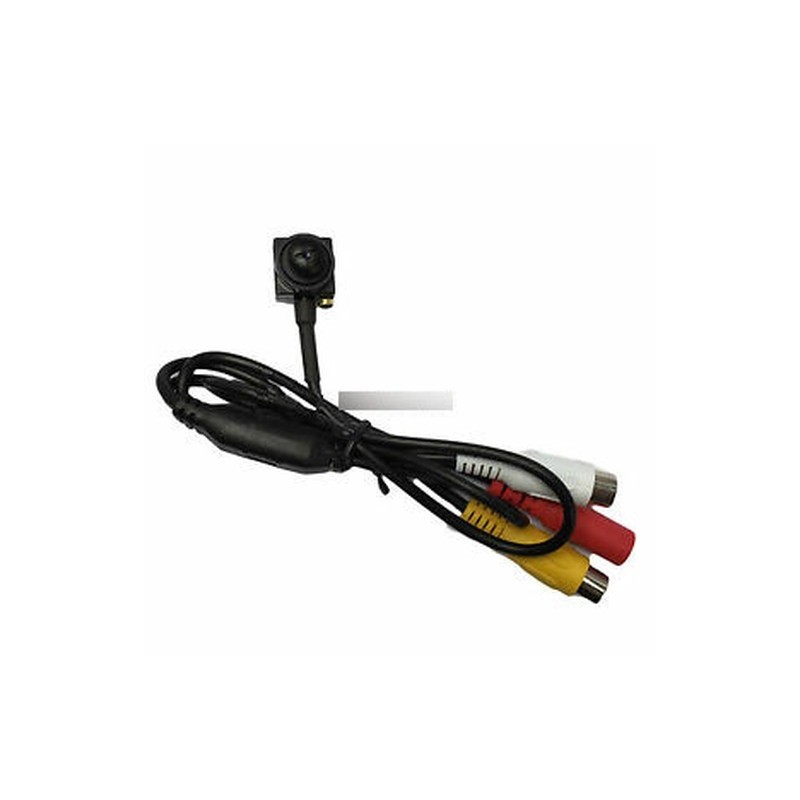

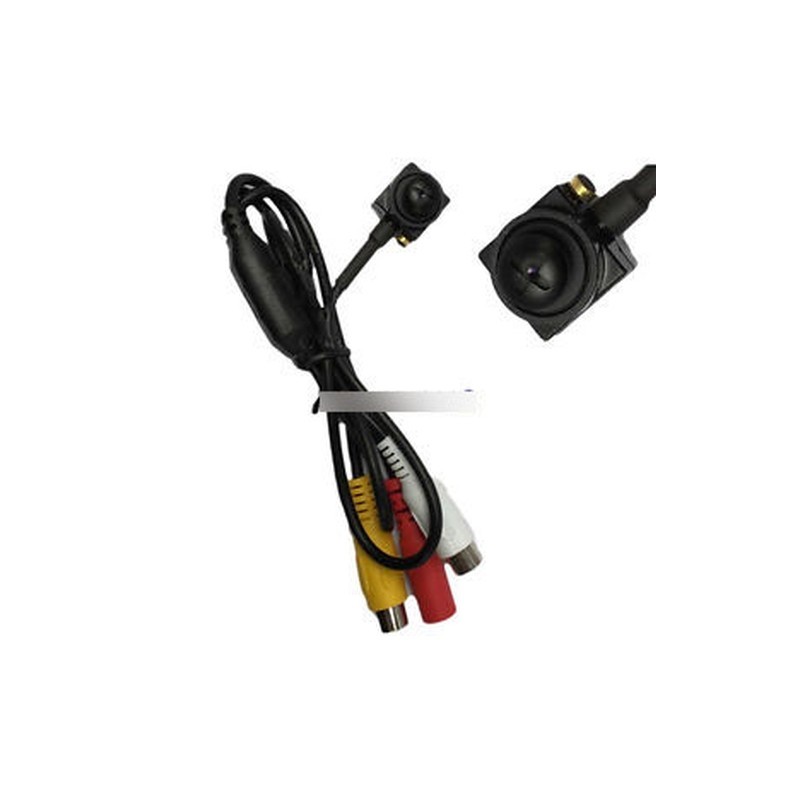

800TVL CMOS PAL CCTV Wired Covert Screw Pinhole Camera Home Security Spy Cam
Features: It’s an ultra small, high definition CCTV camera.
PAL TV system
Built-in sensitive microphone
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm. Specifications:
PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM PALNUMBER OF PIXEL PAL786（H） X 576（V）
IMAGE SIGNAL PROCESS Digital Signal Processing System
HORIZONTAL RESOLUTION Approximately 800 TV Lines
SCANNING SYSTEM 21 Interlace
LENS & VIEW ANGLE 0.5mm F2.0 /55 °
S/N RATIO 52dB
ELECTRONIC SHUTTER OUT （1/60 S TO 1/100000 S）; OUT （1/50 S TO 1/100000）S
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/75ohm
AUDIO OUT 1.0V p-p/1Kohm
WORK CURRENT 70mA
POWER REQUIREMENT DC 12V
OPERATING TEMPERATURE - 10° C ~ 50°C ，less than 90% RH
Connection Red - DC12V , Yellow - VIDEO OUT, White - AUDIO OUT
Package Included :
1 x Mini 800 TVL CMOS camera Notethis
