2páros női és férfi csatlakozó - DC 5-24V 5A infravörös PIR mozgásérzékelő biztonsági fényvezérlő kapcsoló

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
DC 5-24V 5A Infrared PIR Motion Sensor Security Light Control Switch ConnectorMINI PIR infrared motion sensor switchPIR (Passive infrared) Motion sensor is pyroelectric device can detect human movement by detecting Infrared ray emitted by human body. Operating voltage is 5~12VDC, and output voltage is equal to input voltage. High sensitivity, easy for installing. Widely used on the Motion-activated lighting, LED strips Security System, automatic sensory device and more.Specifications:Passive Infrared Sensor
Operating voltage: DC 5V ~ 12V, Output voltage = input voltage
Load current: < 4A
Delay time: 5~600 Seconds, adjustable(Default setting 5sec)
Detecting range: <90 degrees cone angle
Detecting distance: 0 ~ 5M, adjustable(Default setting 5M)
Size: 50 * 26 * 21.5mm
Trigger way: continuous triggering
Light sensor: NOFeatures:Automatic Induction: When people enter into the range of induction, it will output a voltage equal to input voltage, after the delay time, it will output 0V; during the delay time if motion detected, the delay time will reset, and start a new delay time.
There is no light sensor control.Note:Don’t exposed to direct sun light or lighting, big wind, near a heater or air condition.
Don’t fix it at a place where there are obstructing material (eg. Glass, dense clothes) which IR cannot get though.
Don’t fix it in strong shock or vibration environment.
The PIR Sensor requires a "warm-up time" in order to function properly, about 10s to1min,depend on the delay time; during this time, the signal triggered by the module is not stable, after one minute, it will be ready.
The sensitivity for left-right direction is better than up-down direction, make sure the installation direction is left-right.2Pairs Female&Male ConnectorSimply & Professional appearance for power cabling
Easier for camera installation, save time and more securer cable connection
5.5mm x 2.1mm Female power plug connectorFemale Jack Description:
No electrical tap, No splicing, no crimping, but only a small screw driver.
Easier for camera installation, save time and more securer cable connection.
5.5mm x 2.1mm Female power plug connector.
External diameter of the plug: 5.5mm.
Internal diameter of the plug: 2.1mm.
Dimension: 38mm(L) x 14mm(W) x 13mm(H).

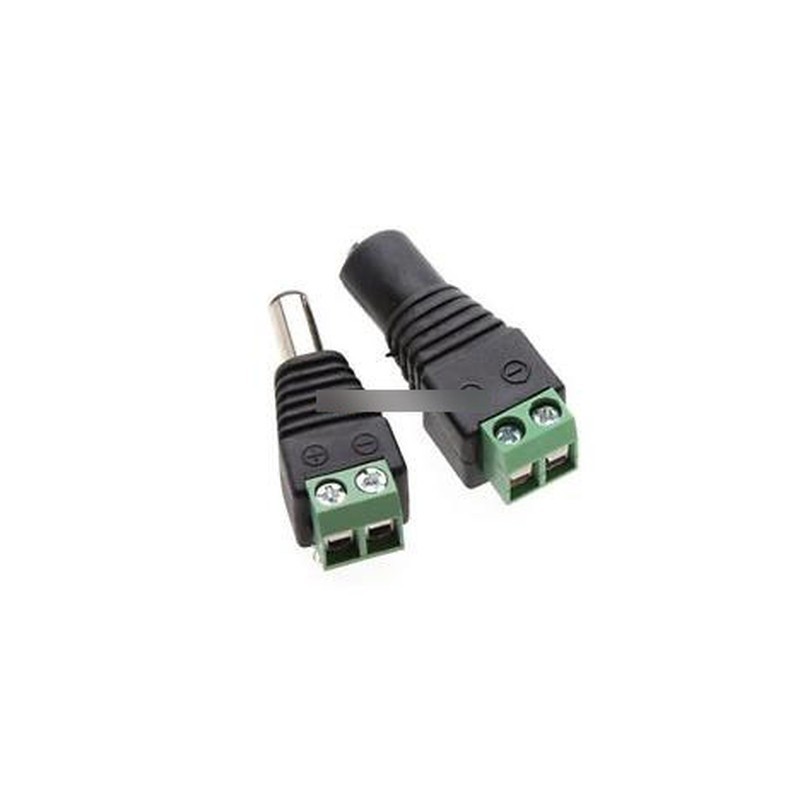

Male jack Description:
2.1 x 5.5mm CCTV Camera DC Power Plug Connector.
DC Power Plug with plastic construction and strain relief.
This 2.1 x 5.5mm Power Plug features one power connector end DC plug male to another end terminal for CCTV camera connected.
It is a perfect solution for those who want to make custom power cable.
This CCTV Camera DC Power Connector will provide a great connection.
Internal diameter of the plug: 2.1mm
External diameter of the plug: 5.5mm
It measures approx. 1.5" long, 0.55" wide, 0.5" thick.
Package Include:
MINI PIR infrared motion sensor switch(1*switch)2Pairs Female&Male Connector(2*Female Connector,2*Male Connector)
Sensor switch Connector(1* MINI PIR infrared motion sensor switch,1* Female Connec
