Fekete szín - Pixhawk PX4 Autopilot PIX 2.4.8 32 bites repülésvezérlés PX4FMU PX4IO biztonsági kapcsoló hangjelzéssel 4G

- The board integrates with PX4FMU PX4IO
- Pixhawk is with new 32 bit chip
and sensor technology
Features:
- Advanced 32 bit
CortexM4 ARM high performance processor, can run RTOS NuttX real time operating
system;
- 14* PWM/ actuator output;
- Bus interface (UART, I2C, SPI,
CAN);
- Integrated backup power supply and failure backup controller, the
main controller can be safely switched to backup control;
- Provide automatic
and manual mode;
- Provide redundant power input and fault transfer
function;
- Color LED lamp;
- Multi tone buzzer interface;
- Micro SD
to record flight data;
Processor:
- 32 bit 2M flash
memory STM32F427  Cortex M4, with hardware floating point processing unit
-
Main frequency: 256K, 168MHZ RAM
- 32 bit STM32F103 backup co
processor
Sensor:
- L3GD20 3 axis digital 16 bit
gyroscope
- LSM303D 3 axis  14 bit accelerometer /magnetometer
- MPU6000 6
axis accelerometer / magnetometer
- MS5611 high precision
barometer
Interface:
- 5* UART, 1*compatible high
voltage, 2*hardware flow control
- 2* CAN
- DSM/DSM2/DSM-X satellite
receiver compatible input
- Futaba SBUS compatible input and output
- PPM
signal input
- RSSI (PWM or voltage) input
- I2C
- SPI
- 3.3 and
6.6VADC input
- External USB MICRO interface

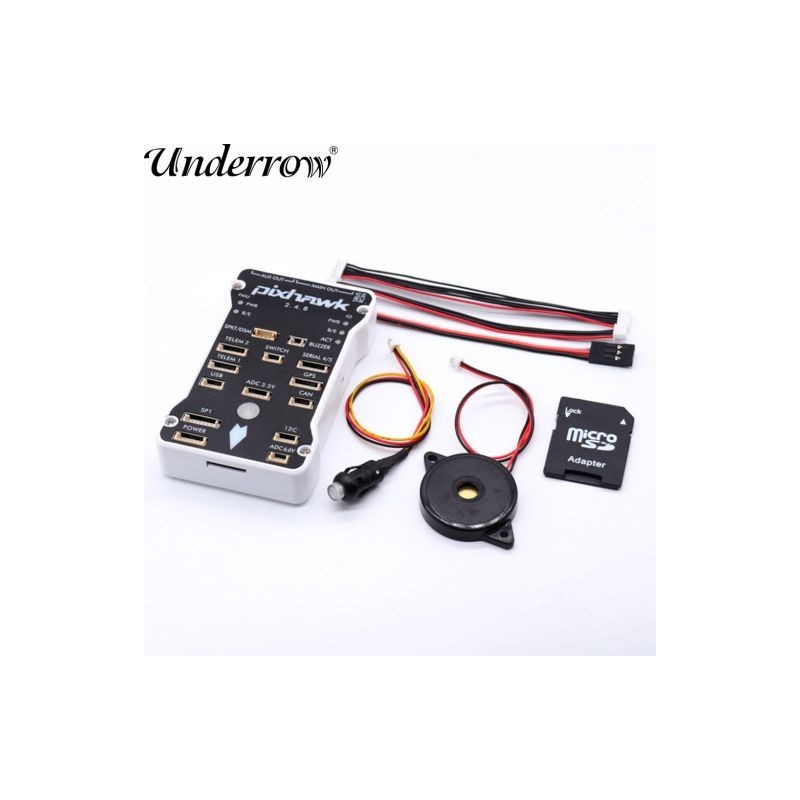

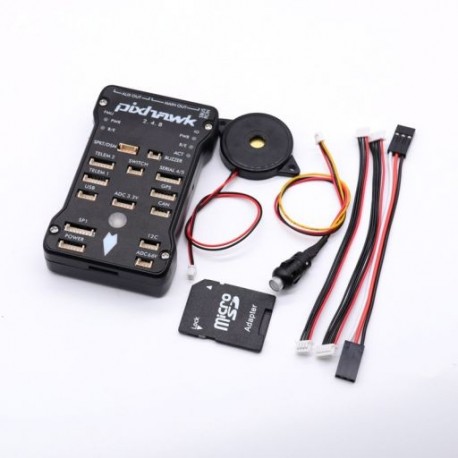

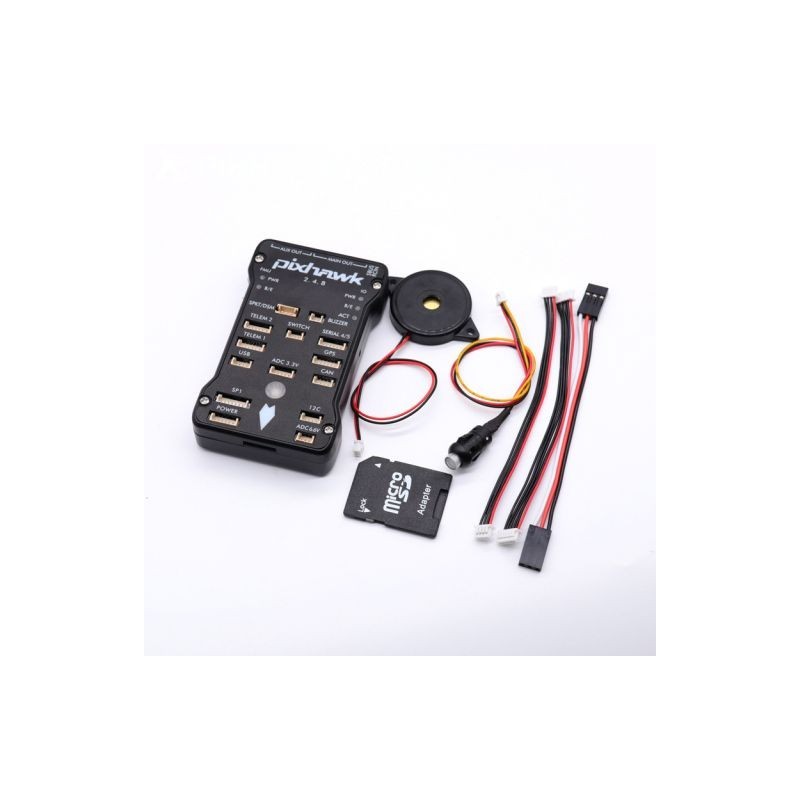

Package
included:
1 x 2.4.8 Pixhawk main control
1 x Flight control
shell
1 x Safety switch
1 x Buzzer
1 x 6pin to 6pin line
1 x
4Pin to  4Pin line
1 x 3pin DuPont line
1 x 4G SD Card
