W5100 UNO R3 , Ethernet bővítőhálózat- USB-kábel Arduino

：
I/O Analog input/output: 0~5
Support ISP download function.
The input voltage: when connected to the computer USB without external power supply,
external power supply 7 v to 12 v dc input voltage.
Output voltage: 3.3 V and 5 V dc voltage output dc voltage output.




Ethernet Shield W5100 SD Slot Expansion panel



With this Ethernet Shield, your Arduino panel can be used to connect to internet.
Can be used as server or client.
Directly plug puzzle panel, no soldering required.
Controller: W5100.
This is the latest version of the Ethernet Shield.
This Arduino Ethernet Shield which is based on the Wiznet W5100 Ethernet Chip gives you an easy way to get your Arduino Online.
It is directly supported by Arduino official Ethernet Library.
It adds a micro-SD card slot, which can be used to store files for serving over the network.
It is compatible with the Arduino Duemilanove (168 or 328), Uno as well as Mega (1280/2560) and can be accessed using the SD library.
The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP.
It supports up to four simultaneous socket connections.
Use the Ethernet library to write sketches which connect to the internet using the shield.
Fits all version of arduino Main panel,2009,UNO, mega 1280, mega 2560.
Size:7cm x 5.4cm x 2.4cm - 2.76inch x 2.12inch x 0.94inch.
MAC address: 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };

Package Included:
1 x Ethernet Shield W5100 For Arduino Main panel 2009 UNO ATMega 328 1280 MEGA2560

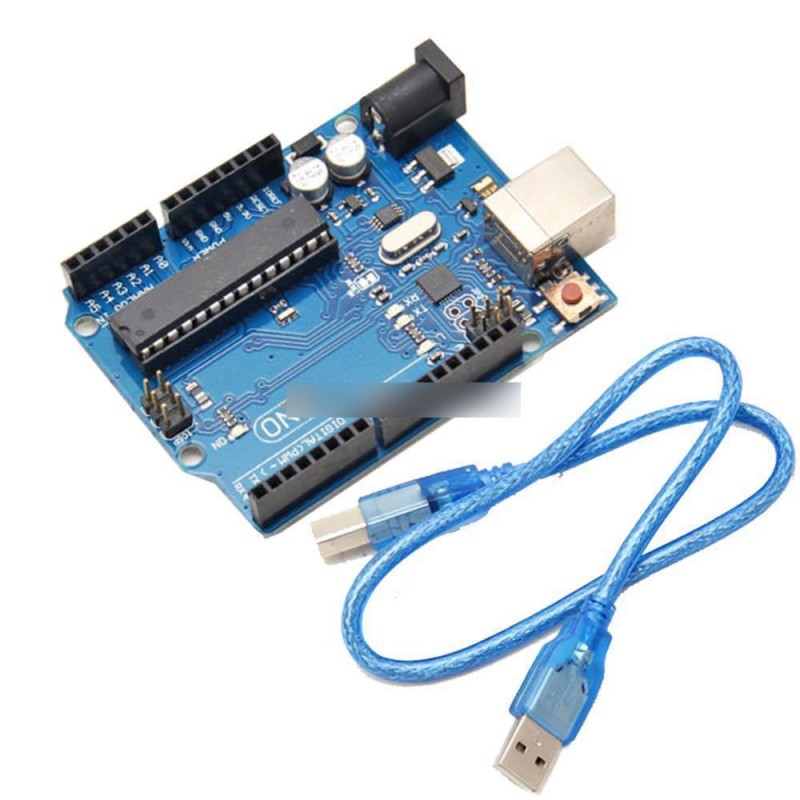

1db x UNO R3 Development panel For Arduino Compatible USB Cable

W5100 Ethernet Expansion Network Shield UNO R3 panel USB Cable for Arduino
