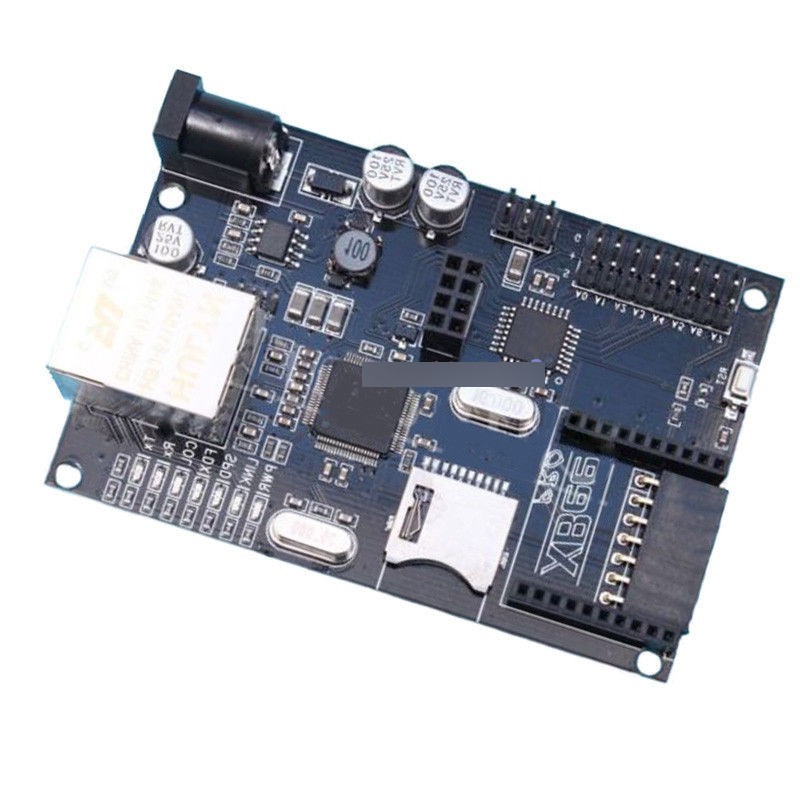

W5100 Ethernet modul POE / XBee / SD Arduino

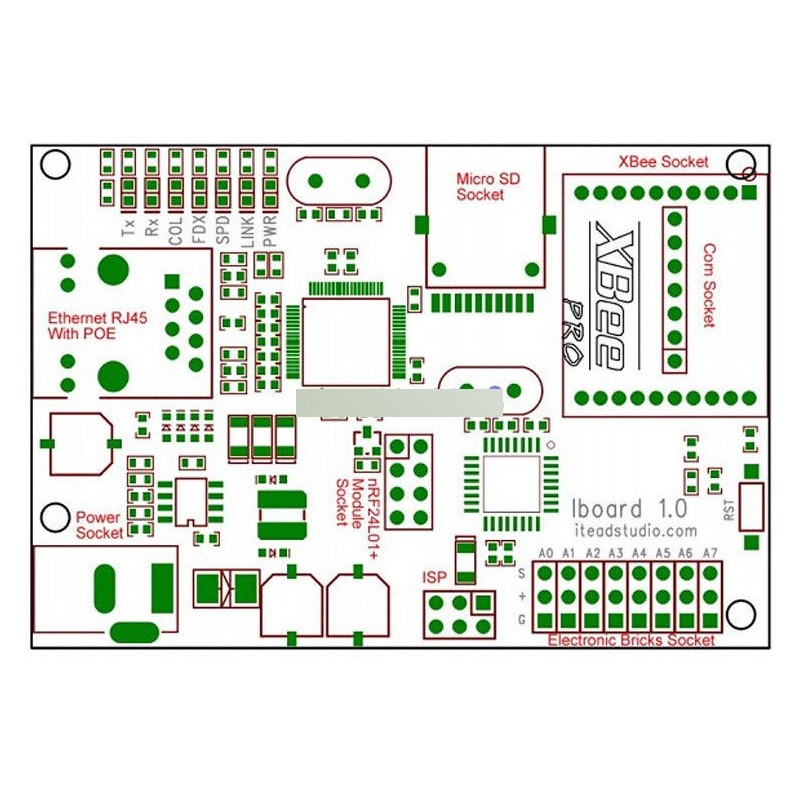

Overview:
et ethernet port, an XBee socket,
nRF24L01 module interface and an ATMega328.
This board will add wireless XBee / nRF24L01 control as well as internet connectivity to your projects.
It's great for anything from home automation to robot control.
The possibilities are endless!

This board can be used as an Ethernet, wireless communication project development platform.
Iboard support POE (power on Ethernet) power supply, and Micro SD for mass storage.
There are some 3pin electronic brick/ sensor brick interface breakout on board,
it offer an easy way for a quick prototyping.
You can setup a web server through which you may communicate with a remote Arduino using XBee radios, bluetooth or APC modules.
This information can be posted to a web site, or to Twitter.
The board requires FTDI basic board to upload sketch,
you can use our Foca board to do it. Iboard can be powered by a mini USB , power Jack or POE.

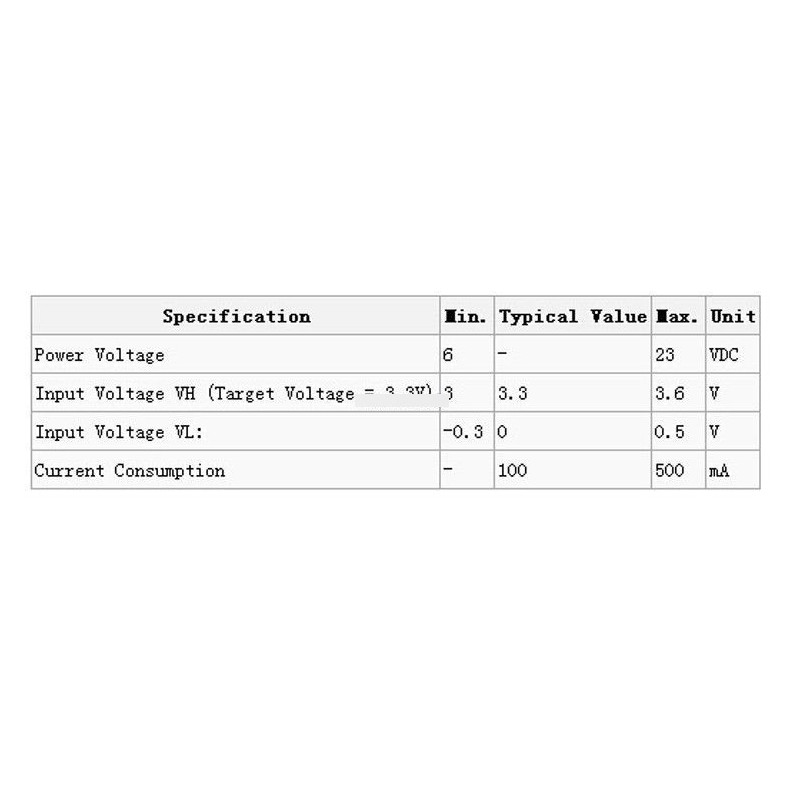

Specification:
Microcontroller:ATMega328P
Max Frequency:16MHz
RAM Capacity:2K
FLASH Capacity:32K
External Resources:
Onboard SD socket
Onboard Ethernet
Electronic Brick Interface
Power Supply:
External 12V
External 24V
External 3.3V
External 7V
External 9V
USB 5V
I/O Operation Level:3.3V
Board Size:80mm x 54mm
Version:1.1
Accessories:No


Download
data sheet
schematic



Package Included:
1 x W5100 Ethernet Module With POE/Xbee/SD Slot Iboard for Arduino
