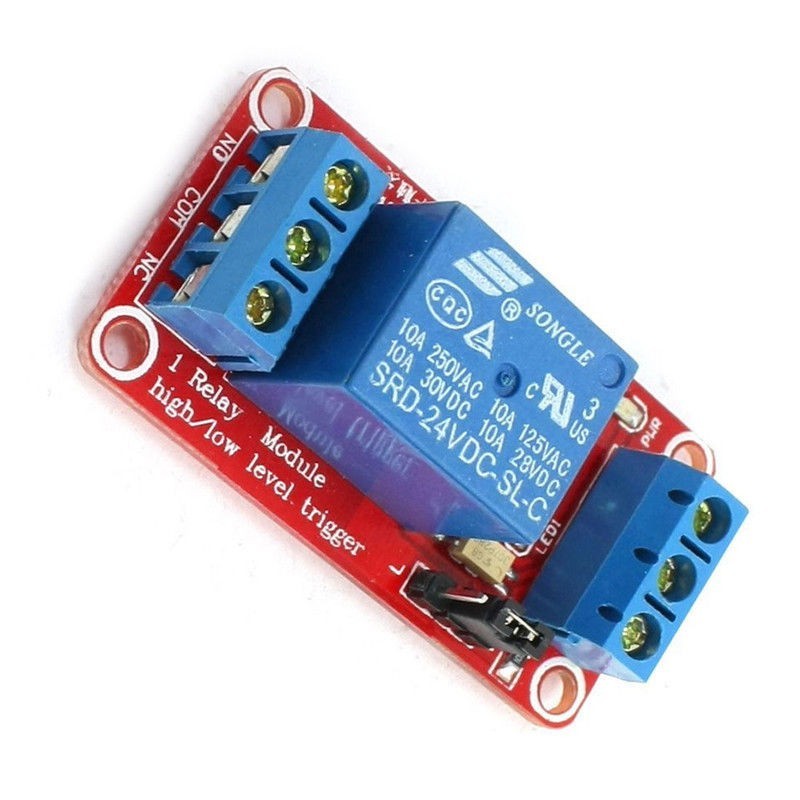

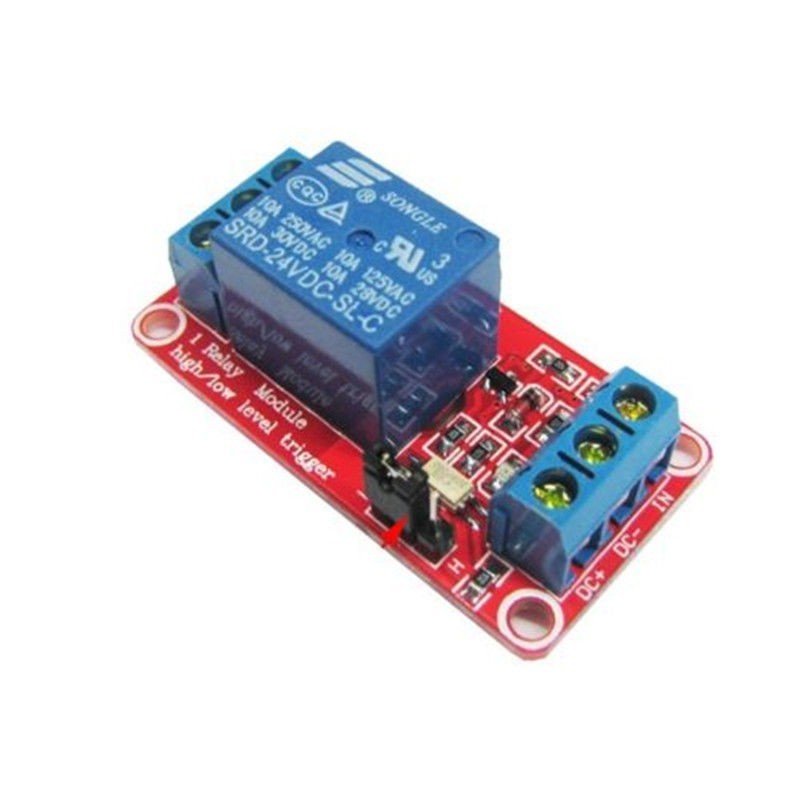

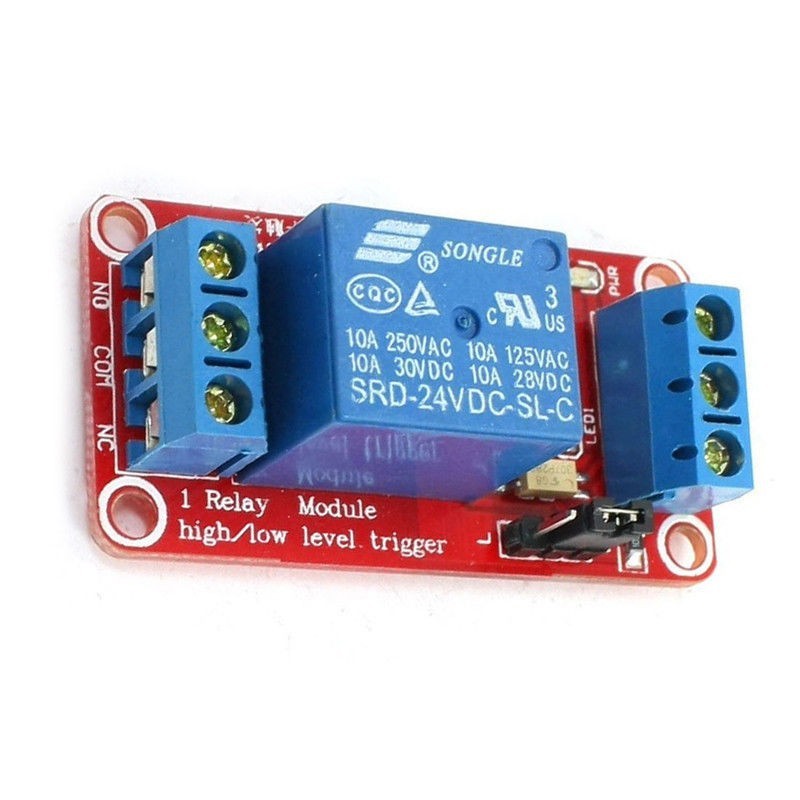

DC 24V 1 csatornás relé modul Optocsatoló H/L szint trigger Arduino

1. the module uses genuine quality relay, normally open interfaces Maximum load: AC 250V/10A, DC 30V/10A;
normally open interfaces Maximum load: AC 250V/10A, DC 30V/10A;
normally open interfaces Maximum load: AC 250V/10A, DC 30V/10A;
2. using SMD optocoupler isolation, driving ability, stable performance; trigger current 5mA;
3. the module Operating voltage 24V;
4. the module can be high or low by a jumper setting trigger;
5. fault-tolerant design, even if the control line is broken, the relay will not operate;
6. the power indicator (green), the relay status indicator (red)
7. the interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient
8. module size: 50mm*26mm*18.5mm (L*W*H)

Module interface:
1. DC : positive power supply (VCC)
2. DC-: negative power supply (GND)


Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface


High and low level trigger options:
It is low level trigger when jumper connect to LOW pin
It is high level trigger when jumper connect to HIGH pin


Package Included:
1 x Relay Module

DC 24V 1-Channel Relay Module with Optocoupler H/L Level Trigger for Arduino
