SSR-40AA 40A szilárdtest relé modul 80-250V AC / 24-380V AC

SSR-40AA 40A Solid State Relay Module 80-250V AC / 24-380V AC
SSR-40AA 40A Solid State Relay Module 80-280V AC / 24-380V ACFeature:1. High reliability, high efficiency and long lifespan
2. No electric spark, no noise and no contact
3. Fine electro magnetic interference, high sensitivity and fast switching speed
4. Low drive voltage and current
5. Unique shape and novel structure
6. Especially suitable for corrosion, moisture, dust resistant and other harsh environments
7. Widely used in many automatic control systemsSpecification:

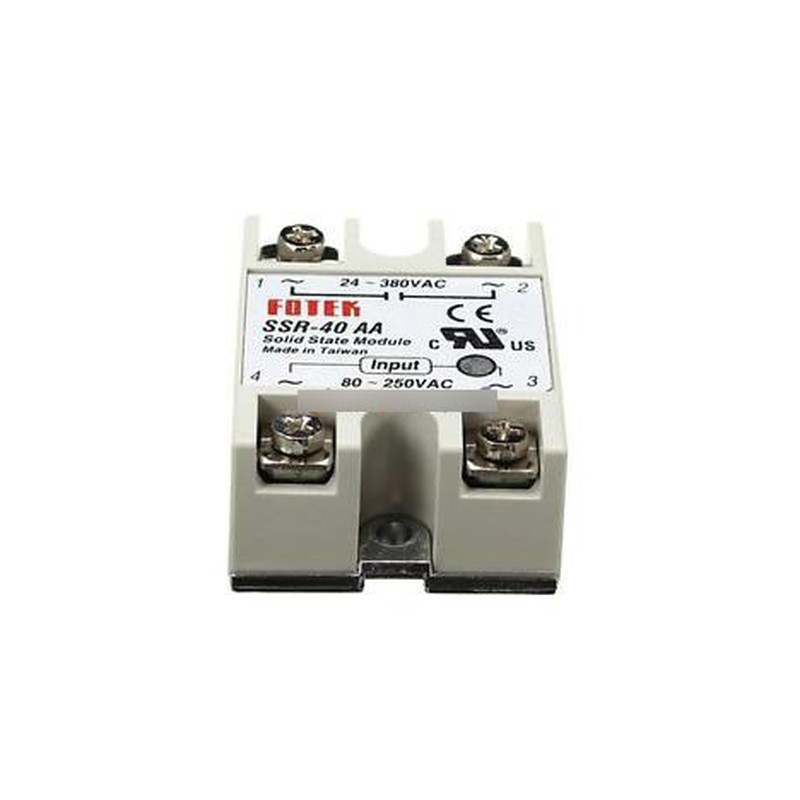

This is solid state relay SSR-40AA
Model: SSR-40AA
Input voltage: 80-250V AC
Output voltage: 24-380V AC
Output current: 40A
Working Voltage: 250V
On voltage: <= 1V
One-off time: <= 10ms
Off leakage current: <= 2mA
Relay Size: 6 x 4.5 x 2.2cm / 2.3 x 1.7 x 0.8inch (L*W*H)
Heat Sink Size: 8 x 5 x 5cm/ 3.1 x 2 x 2inch (L*W*H)
Total Size: 8 x 5 x 7.2cm/ 3.1 x 2 x 2.8inch (L*W*H)
Net weight: 212gPackage Content:
1 x Solid State Relay SSR-40AA
