AC / DC LM317 feszültségszabályozó tápegység modul feszültségmérő

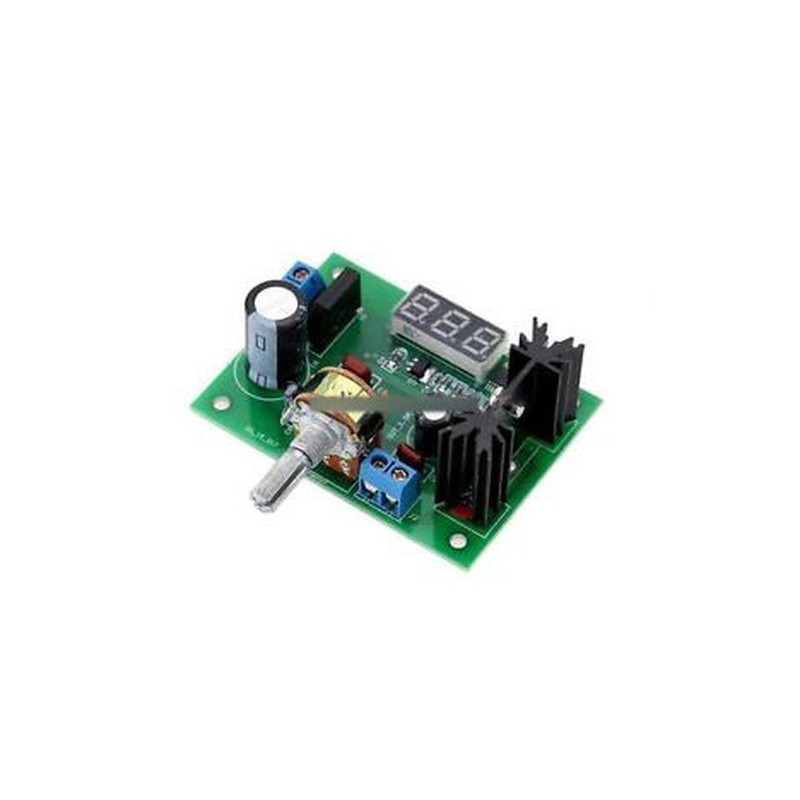

AC/DC LM317 Step-down Voltage Regulator Power Supply Module LED Voltmeter
Features:
Adjustable regulator module with LED display.
2A or less can be loaded, AC or DC voltage input.
The output voltage is 1.25V-28V DC continuously adjustable, versatile for DC board.
Using double adjustment potentiometer to ensure good contact, effectively protect the load. Notice:
The minimum differential between input and output is 3V;the input must be higher than the output voltage above 3V to be regulated.
Buck, not boost, when input 5V output 1.25-2V, not 6V.
Specifications:
Input Voltage: DC: 0-30V; AC: 0-22V
Output Voltage: DC 1.25-28V
Output Current: 2A(Max.)
Size: 62 * 59 * 27mm / 2.44 * 2.32 * 1.06in (L * W * H)
Weight: 42g / 1.5oz
Package Weight: 47g / 1.66oz Package Included:1 x AC/DC LM317 Step-down Voltage Regulator Power Supply Modu
